PCB

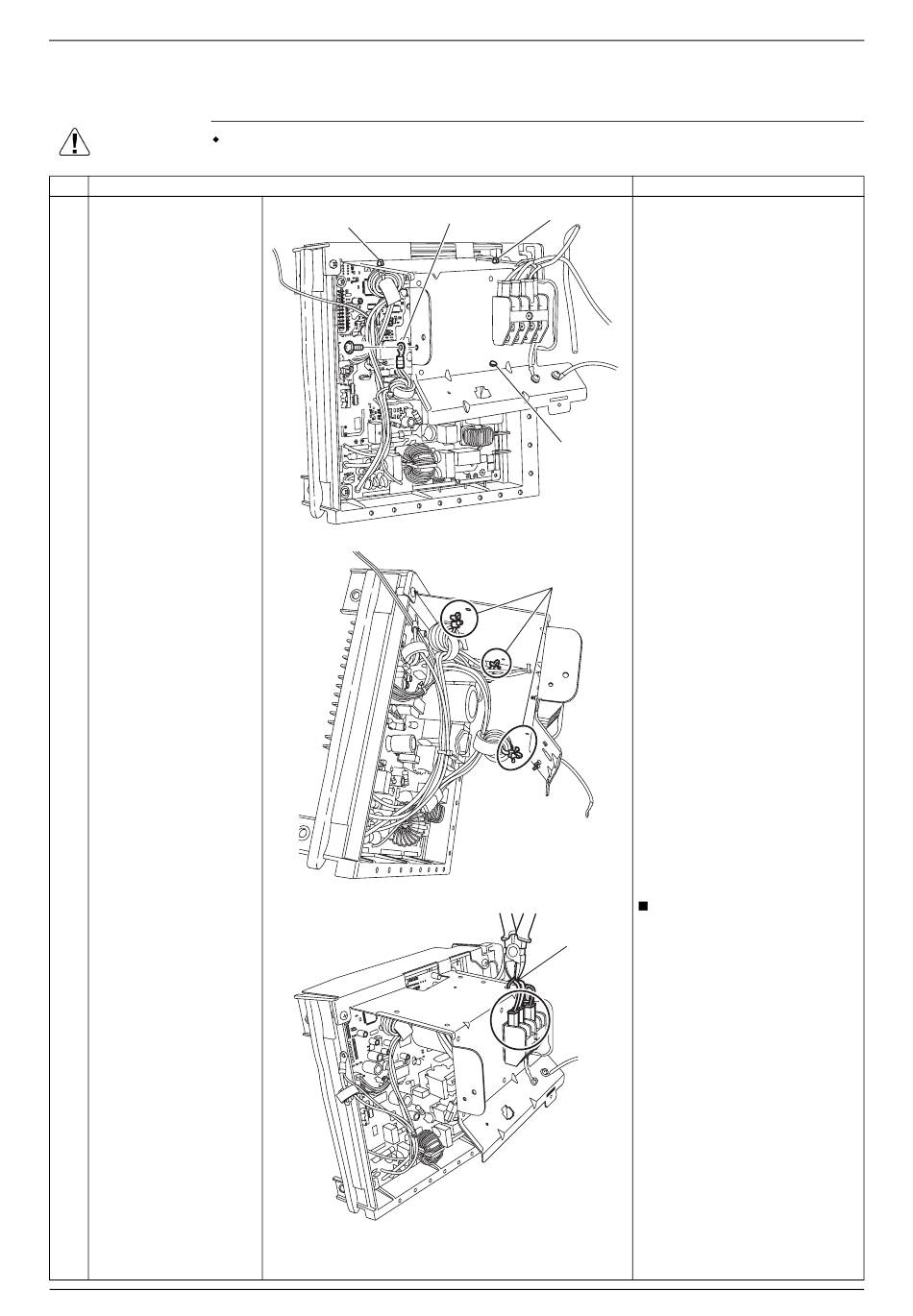

4. PCB
Warning
Step
1 Remove the screw and
release the earth /
ground wire.
2 Pull out the 3 clamps.
3 Cut the clamp.
4 Pull out the terminals
from the terminal board.
10
Be sure to wait for 10 minutes or more after turning off all power supplies before
disassembling work.
Procedure
Earth / ground screw
Clamp
Clamp
Clamp
(R20672)
Clamp
(R22020)
Before pulling out the
terminals, confirm the
Clamp
terminal locations.
(1): black (back)
(2): white (back)
(3): red (front)
(R20332)
Si001413EB
Points
Removal Procedure
