Partition Plate / Sound Blankets

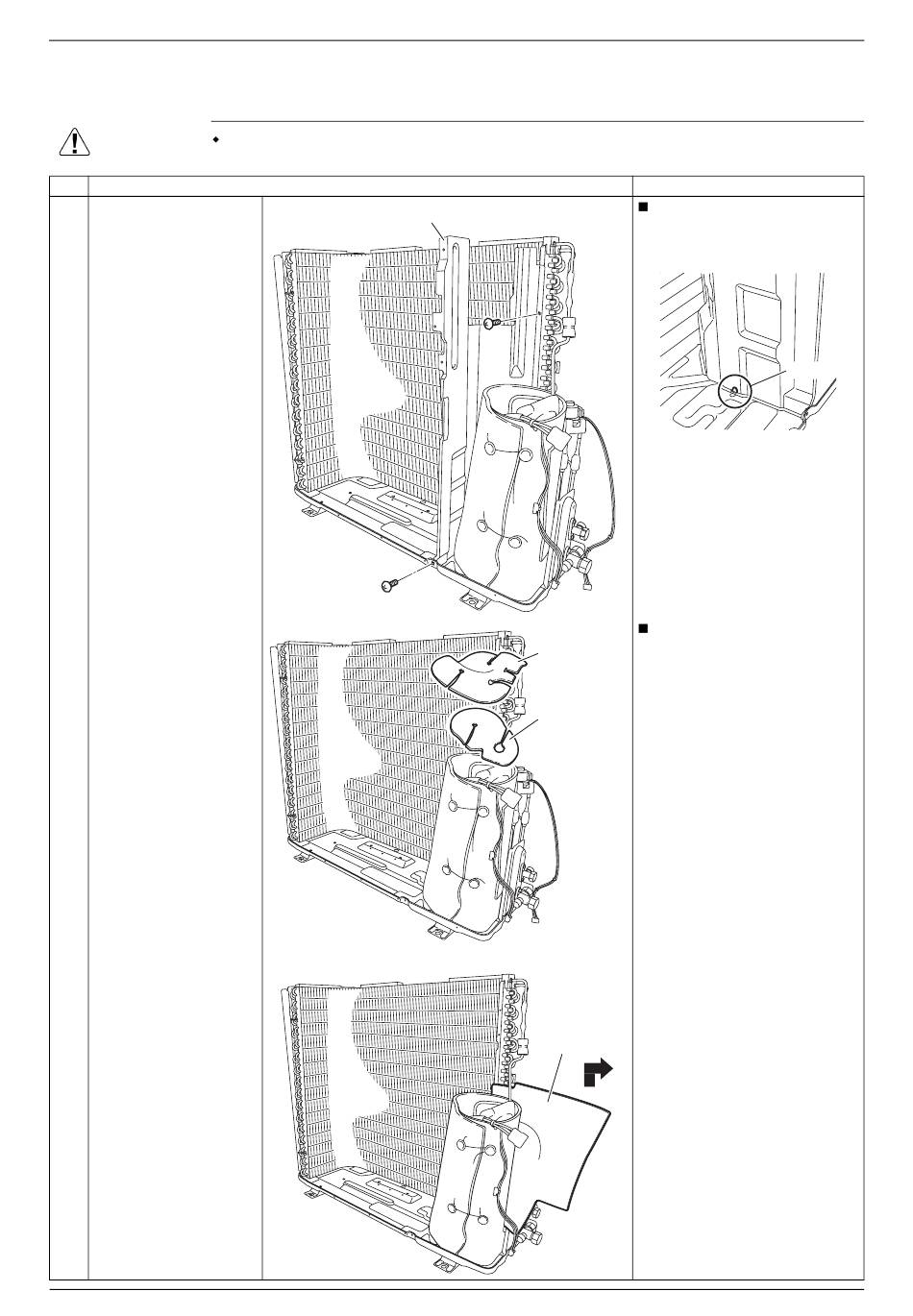

5. Partition Plate / Sound Blankets
Warning
Step
1 Remove the 2 screws
and remove the
partition plate.
2 Remove the sound
blanket (top upper) and
sound blanket (top
lower).
3 Remove the sound
blanket (back).
12
Be sure to wait for 10 minutes or more after turning off all power supplies before
disassembling work.
Procedure
Partition plate
When reassembling, fit the
lower hook into the bottom
frame.
(R20548)
Since the piping ports are
torn easily, remove the
Sound blanket
(top upper)
sound blankets carefully.
Sound blanket
(top lower)
(R20549)
Sound blanket
(back)
(R20550)
Si001413EB
Points
Hook
(R20677)
Removal Procedure
