Outdoor Fan / Fan Motor - Daikin ARKC18RV2S Service Manual

Outdoor Fan / Fan Motor

2. Outdoor Fan / Fan Motor
Warning
Step
1 Remove the top shield
plate.
2 Cut the clamp.
3 Disconnect the
connector [S70] and
release the fan motor
lead wire from the
groove.
4
Be sure to wait for 10 minutes or more after turning off all power supplies before
disassembling work.
Procedure

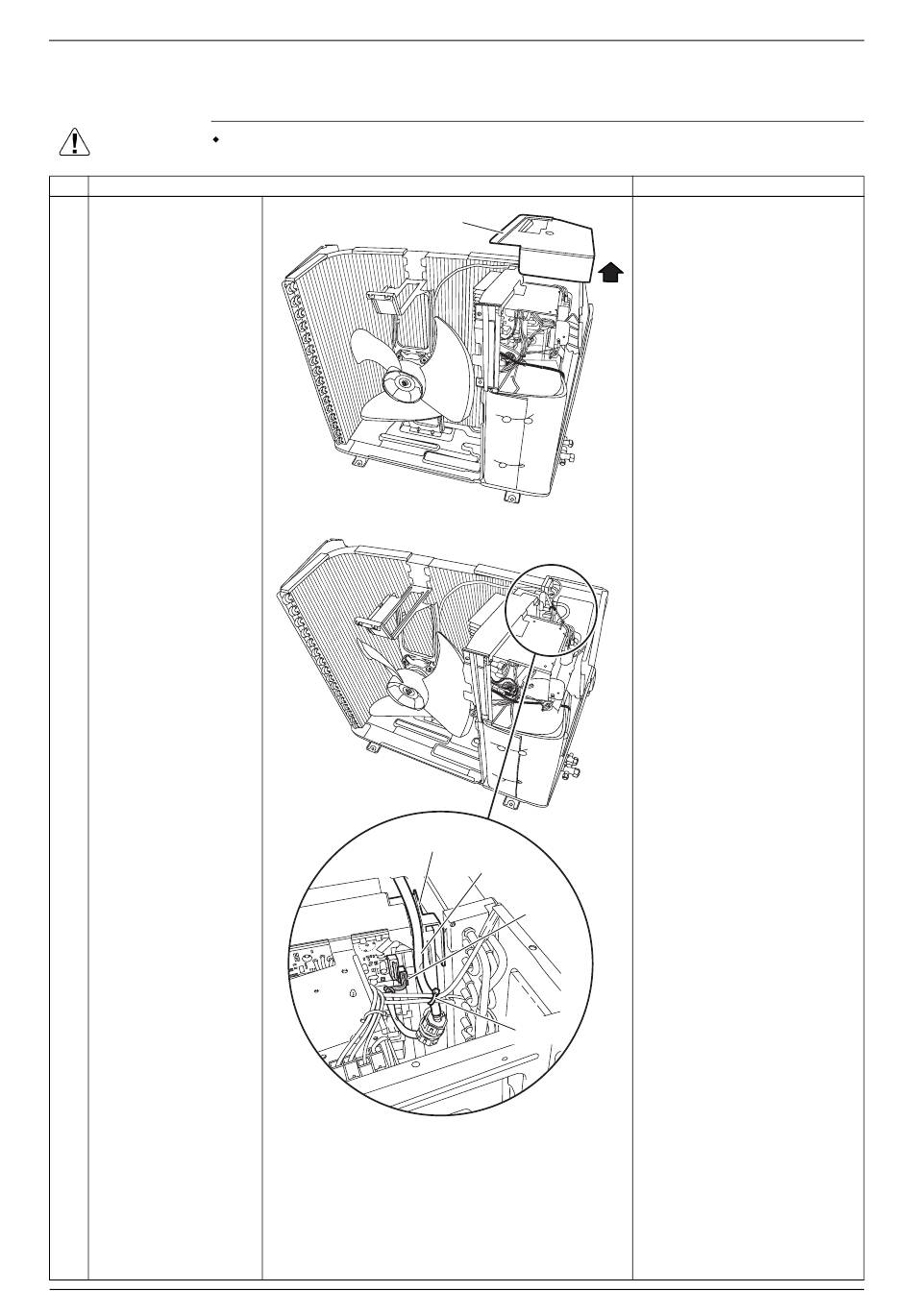

Top shield plate
(R23351)
Groove Fan motor
lead wire
[S70]
Clamp
(R20540)
Si001413EB
Points
[S70]: fan motor
Removal Procedure
