AR0835HS3C12SUAAH3-GEVB
AR0835HS Evaluation
Board User's Manual
Evaluation Board Overview
The evaluation boards are designed to demonstrate the features of
image sensors products from ON Semiconductor. This headboard is
intended to plug directly into the Demo 3 system. Test points and
jumpers on the board provide access to the clock, I/Os, and other
miscellaneous signals.
Features
Clock Input
Default – 27 MHz Crystal Oscillator
Optional Demo 3 Controlled MClk
Two-wire Serial Interface
Selectable Base Address
MIPI Interface
ROHS Compliant
Block Diagram
© Semiconductor Components Industries, LLC, 2016
February, 2016 − Rev. 0
Arrow.com.
Downloaded from

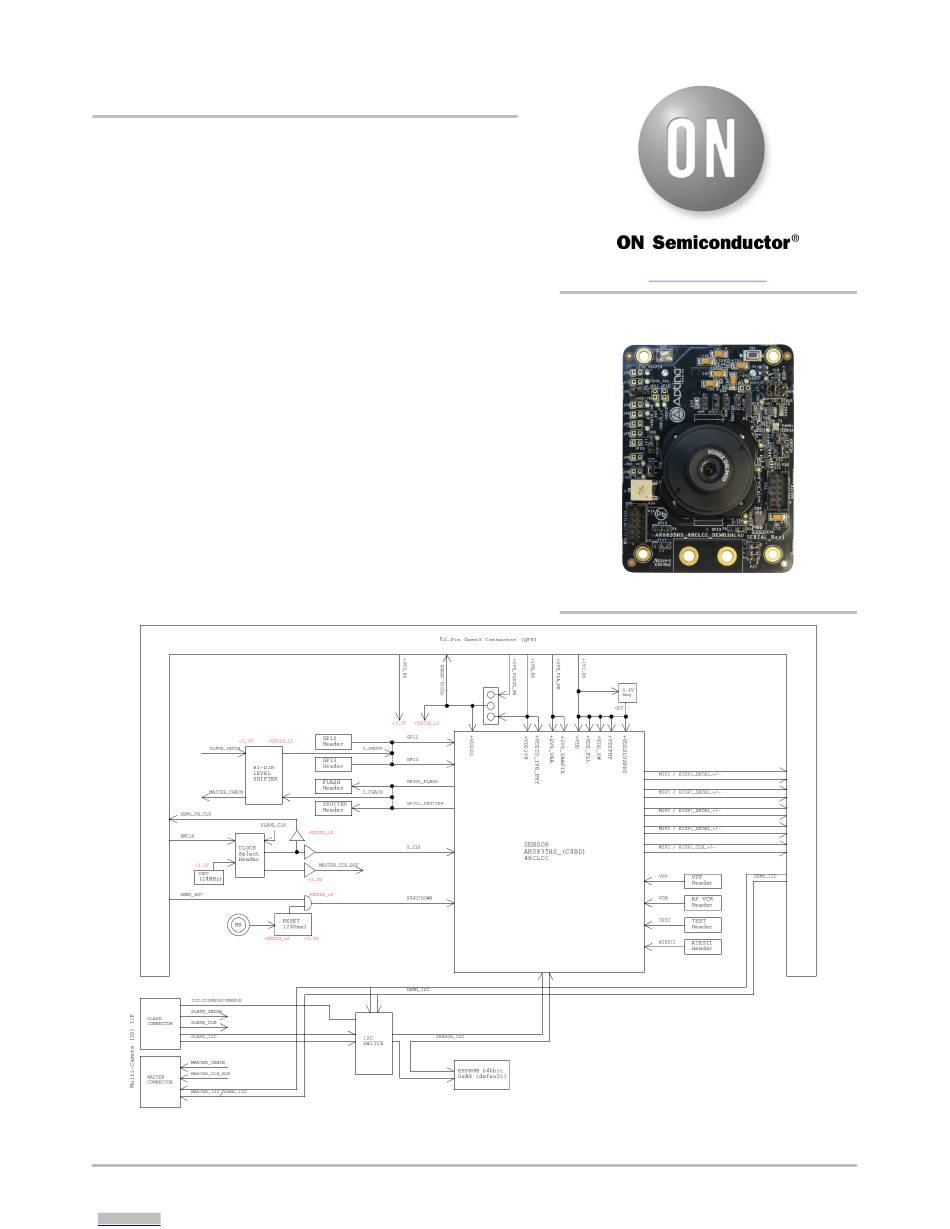

Figure 2. Block Diagram of AR0835HS3C12SUAAH3−GEVB
www.onsemi.com
EVAL BOARD USER'S MANUAL

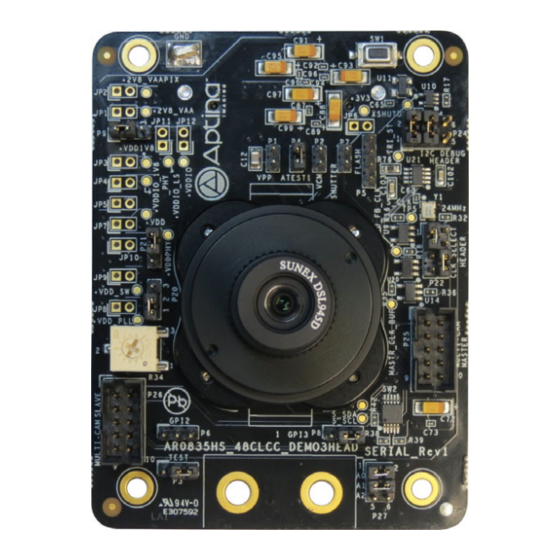

Figure 1. AR0835HS Evaluation Board
1
Publication Order Number:
EVBUM2386/D

Advertisement

loading
Need help?

Need help?

Do you have a question about the AR0835HS and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for ON Semiconductor AR0835HS

  • Page 1 The evaluation boards are designed to demonstrate the features of EVAL BOARD USER’S MANUAL image sensors products from ON Semiconductor. This headboard is intended to plug directly into the Demo 3 system. Test points and jumpers on the board provide access to the clock, I/Os, and other miscellaneous signals.
  • Page 2 AR0835HS3C12SUAAH3−GEVB Top View RESET Switch SW1 ATEST1 P4 VCM P2 +VDDIO P9 C Debug P24 +VPP P1 FLASH P5 SHUTTER P7 +VDDSLVSPHY P21 CLK_SELECT P22 +0V4_VDDSLVSPHY P20 GPI2 P6 GPI3 P8 TEST P3 EEPROM ADDR Sel P27 Figure 3. Top View of the Board − Default Jumpers Bottom View Baseboard Connector J1 Figure 4.
  • Page 3 AR0835HS3C12SUAAH3−GEVB Jumper Pin Locations The jumpers on headboards start with Pin 1 on the leftmost side of the pin. Grouped jumpers increase in pin size with each jumper added. Pin 1 Pins 1−4 Figure 5. Pin Locations for a Single Jumper. Pin 1 is Located at the Leftmost Side and Increases as it Moves to the Right Pin 1 Pins 1 and 2...
  • Page 4 When Pushed, 240 ms Reset Signal will be Sent to AR0835 Interfacing to ON Semiconductor Demo 3 Baseboard Table 2. SHORTED JUMPERS FOR POWER The ON Semiconductor Demo 3 baseboard has a similar MEASUREMENT 52-pin connector which mates with J1 of the headboard.
