ON Semiconductor AP1302CS User Manual

AP1302CSSL00SMGAH-GEVB
AP1302CS Evaluation Board
User's Manual
Evaluation Board Overview
The evaluation boards are designed to demonstrate the features of
image sensors products from ON Semiconductor. This headboard is
intended to plug directly into the Demo 3 system. Test points and
jumpers on the board provide access to the clock, I/Os, and other
miscellaneous signals.
Features
•
Clock Input
Default – 27 MHz Crystal Oscillator
♦
Optional Demo 3 Controlled MClk
♦
•
Two Wire Serial Interface
Selectable Base Address
♦
•
Parallel Interface
•
MIPI Interface
•
ROHS Compliant
Block Diagram
STAND_BY
MCLK
HOST MIPI
H_CLK, H_D0, H_D1, H_D2, H_D3
SPI (Host is Master)
RESET_FROM_HOST
SELECT
POWER +5V
0R
DISABLED
Power
JACK
© Semiconductor Components Industries, LLC, 2015
November, 2015 − Rev. 0
SPI_FLASH
ICP3 is Master
GPIO[11:0]
HOST I
Push
Button
RESET
Reset
+1V8HEADB
Power Regulators
IOVDD_HMTSC (+1.8 V HEADB) First then
after 200 ms the Reset of IOVDD

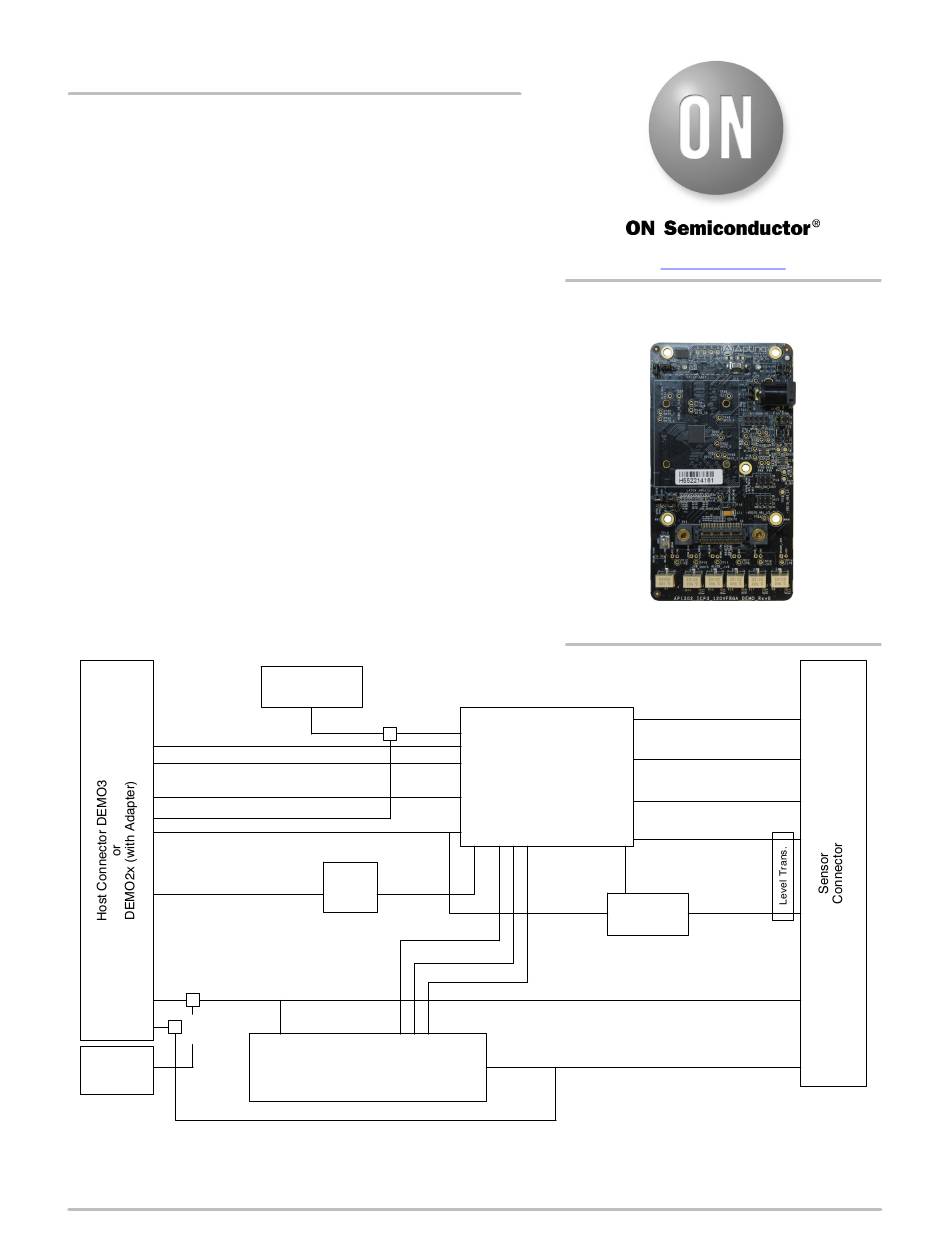

Figure 2. Block Diagram of AP1302CSSL00SMGAH−GEVB
EVAL BOARD USER'S MANUAL

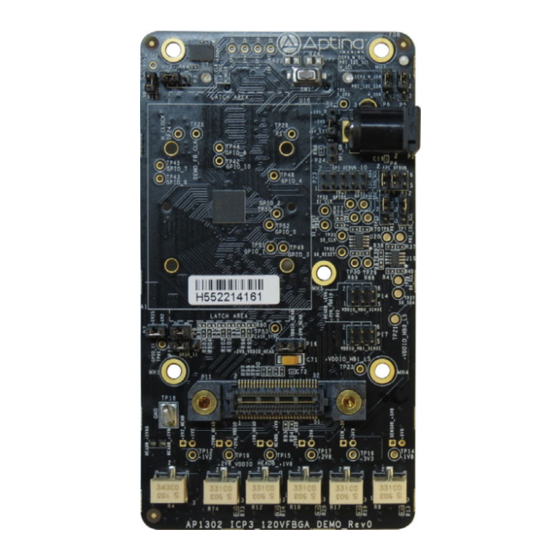

Figure 1. AP1302CS Evaluation Board
AP1302
(ICP3)
2
C
I
+1V2
+1V8
Power Supplies (+3.3 V, +2.8 V, + 1.8 V HEADB, +1.2 V)
1
www.onsemi.com
PRIMARY SENSOR MIPI
S0_CLK, S0_D0, S0_D1, S0_D2
SECONDARY SENSOR MIPI
S1_CLK, S1_D0, S1_D1
MUX SENSOR MIPI
S01_D32
2
SECONDARY I C MASTER
2
PRIMARY I C MASTER
2
C Select
Jumpers
Publication Order Number:
EVBUM2331/D
