NCD9830GEVB
NCD9830 Evaluation Board
User's Manual
About This Manual
This manual will enable the user to use NCD9830
Evaluation Board to evaluate functional performance of
NCD9830. A TSSOP−16 socket is available on the board to
avoid the hassle of soldering the device. NCD9830 is tested
by using a digital interface cable along with the supported
software. The test results should be taken to judge the device
functional performance according the specification in the
technical datasheet.
NCD9830 Product Information
The NCD9830 is a classic successive approximation
analog to digital converter with 8 bit resolution and an
internal 8 channel multiplexer. The converter contains
a capacitive DAC that eliminates the need of a separate
sample and hold circuit. The device has the capabilty to
generate an internal reference voltage for the built-in DAC.
Fast conversion time, low power dissipation and low noise
makes this device ideal for applications like sensors data
acquisition, battery monitoring, remote actuator interface
and gaming consoles/modules and telecommunications.
Communication with the NCD9830 is accomplished via the
2
I
C interface which is compatible with industry standard
© Semiconductor Components Industries, LLC, 2014
October, 2014 − Rev. 0

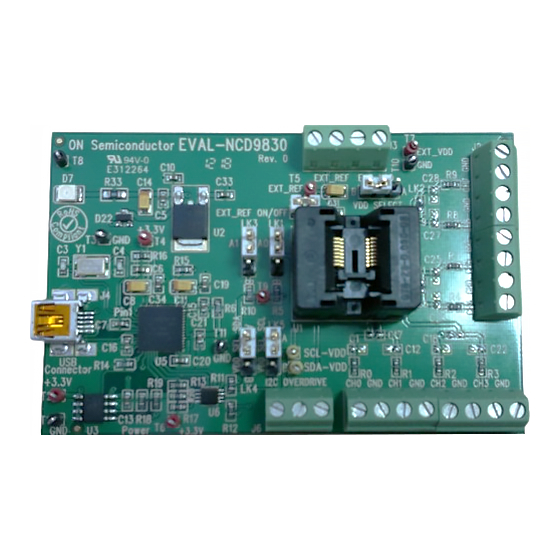

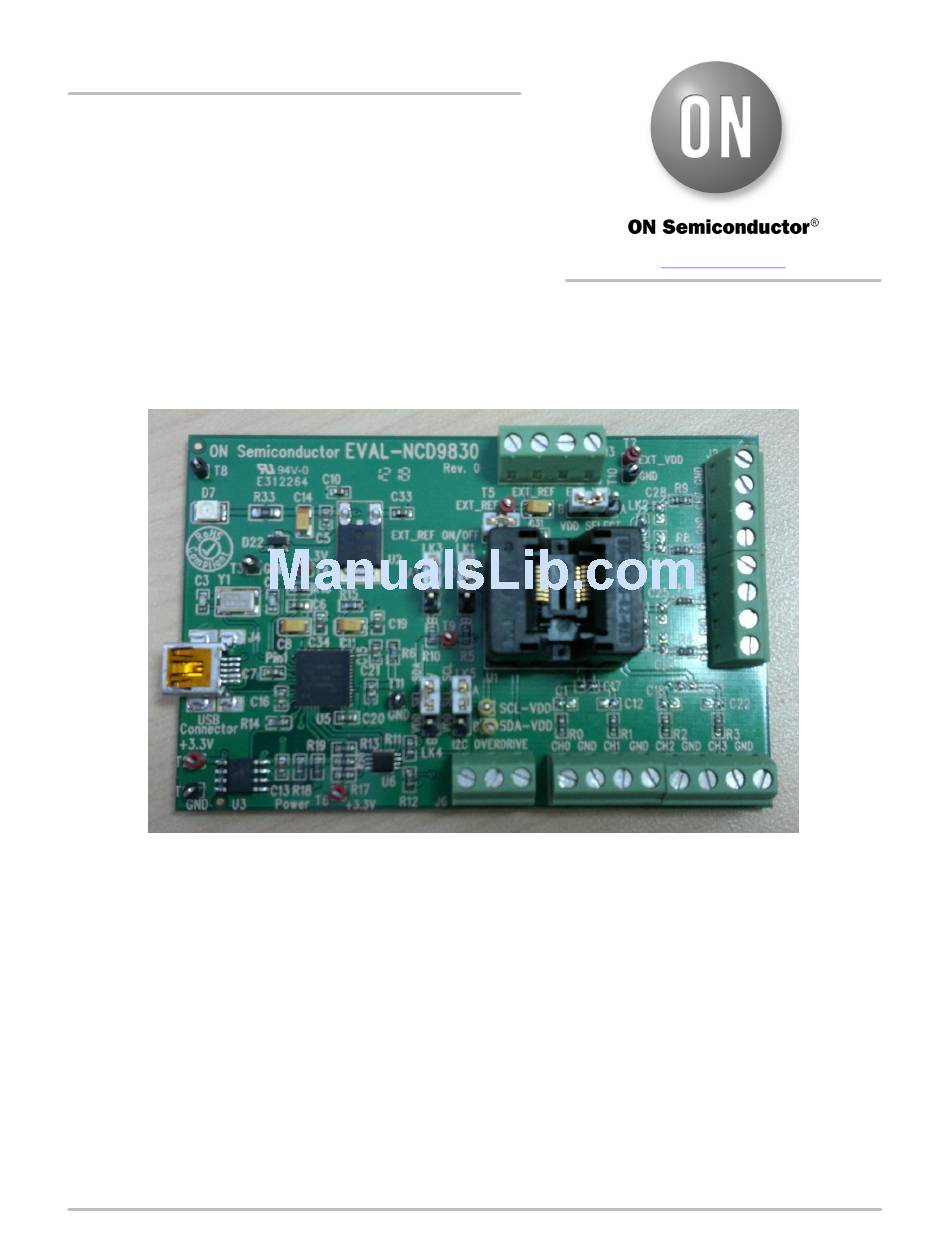

Figure 1. NCD9830 Evaluation Board
protocols. The NCD9830 is available in a 16 lead TSSOP
package.
Features
8 Bit Resolution with Internal 8 channel Multiplexer
Low Power Operation with Guaranteed Low Noise
SNR
No Missing Codes and Fast Conversion Time
Internally Generated Clock and Reference Voltage
Operational Supply Voltage from 2.7 to 5.5 V
Meets I
Full ROHS Compliant
1
www.onsemi.com
EVAL BOARD USER'S MANUAL
2
C Standard, Fast and High Speed Operation
Publication Order Number:
EVBUM2270/D

Advertisement

loading
Need help?

Need help?

Do you have a question about the NCD9830GEVB and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for ON Semiconductor NCD9830GEVB

  • Page 1 NCD9830GEVB NCD9830 Evaluation Board User's Manual About This Manual This manual will enable the user to use NCD9830 Evaluation Board to evaluate functional performance of www.onsemi.com NCD9830. A TSSOP−16 socket is available on the board to avoid the hassle of soldering the device. NCD9830 is tested EVAL BOARD USER’S MANUAL...
  • Page 2: How To Use This Manual

    NCD9830GEVB NCD9830 C Interface 8-bit Temporary Analog A-to-D Data Storage Converter 2.5 V Ref REFIN/REFOUT Figure 2. Block Diagram of NCD9830 HOW TO USE THIS MANUAL Analog Interface Two 8 way terminal blocks J1 & J2 are provided for pins of the ADC. The pin configurations of J1&J2 are analog channels.
  • Page 3 NCD9830GEVB Power Supply NCD9830 can be operated at supply voltage range and J3.3 as explained in Table 2. The digital interface of the between 2.7 V & 5 V. The liberty of supply voltage variation PCB is operated at 3.3 V. If NCD9830 supply voltage is must be used with appropriate reference voltage selection selected any value other than 3.3 V then appropriate...
  • Page 4 NCD9830GEVB Address Selection Links LK1 & LK3 are provided for appropriate address corresponds to 0 (GND) while position B corresponds to 1 selection as explained in the technical data sheet. LK1 (VDD). The default position of these links is A0A1 = 00 corresponds to A0 while LK3 corresponds to A1.
  • Page 5 NCD9830GEVB Digital Interface & Software file and the .hex file in the same folder for proper interfacing A USB cable is provided to interface the NCD9830 board of the device with the software. Double click the to computer. A software file NCD9830_REV5.exe along NCD9830_REV5.exe file and the user graphical interface...
  • Page 6: Evaluation Board Schematic

    NCD9830GEVB EVALUATION BOARD SCHEMATIC http://onsemi.com...
  • Page 7 NCD9830GEVB http://onsemi.com...
  • Page 8 PUBLICATION ORDERING INFORMATION LITERATURE FULFILLMENT: N. American Technical Support: 800−282−9855 Toll Free ON Semiconductor Website: www.onsemi.com Literature Distribution Center for ON Semiconductor USA/Canada Order Literature: http://www.onsemi.com/orderlit P.O. Box 5163, Denver, Colorado 80217 USA Europe, Middle East and Africa Technical Support: Phone: 303−675−2175 or 800−344−3860 Toll Free USA/Canada...
