AR0841CSSC32SMFAH3-GEVB
AR0841CS Evaluation Board
User's Manual
Evaluation Board Overview
The evaluation boards are designed to demonstrate the features of
image sensors products from ON Semiconductor. This headboard is
intended to plug directly into the Demo 3 system. Test points and
jumpers on the board provide access to the clock, I/Os, and other
miscellaneous signals.
Features
Clock Input
Default – 27 MHz Crystal Oscillator
Optional Demo 3 Controlled MClk
Two-wire Serial Interface
Selectable Base Address
Parallel Interface
MIPI Interface
ROHS Compliant
Block Diagram
© Semiconductor Components Industries, LLC, 2016
March, 2016 − Rev. 0
Figure 2. Block Diagram of AR0841CSSC32SMFAH3−GEVB
EVAL BOARD USER'S MANUAL

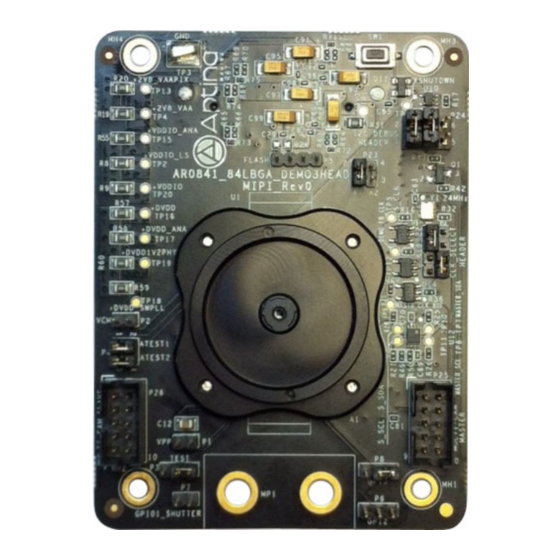

Figure 1. AR0841CS Evaluation Board
1
www.onsemi.com
Publication Order Number:
EVBUM2387/D
