AR0834AISN32SMFAH-GEVB
AR0834AI Evaluation Board
User's Manual

Evaluation Board Overview

The evaluation boards are designed to demonstrate the features of
image sensors products from ON Semiconductor. This headboard is
intended to plug directly into the Demo 3 system. Test points and
jumpers on the board provide access to the clock, I/Os, and other
miscellaneous signals.

Features

Clock Input
Default – 27 MHz Crystal Oscillator
Optional Demo 3 Controlled MClk
Two-wire Serial Interface
Selectable Base Address
Parallel Interface
MIPI Interface
ROHS Compliant

Block Diagram

© Semiconductor Components Industries, LLC, 2016
February, 2016 − Rev. 0
Figure 2. Block Diagram of AR0834AISN32SMFAH−GEVB
EVAL BOARD USER'S MANUAL

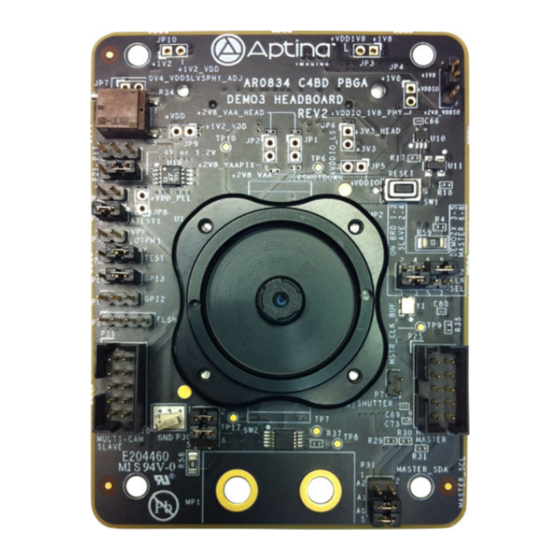

Figure 1. AR0834AI Evaluation Board
1
www.onsemi.com
Publication Order Number:
EVBUM2385/D
