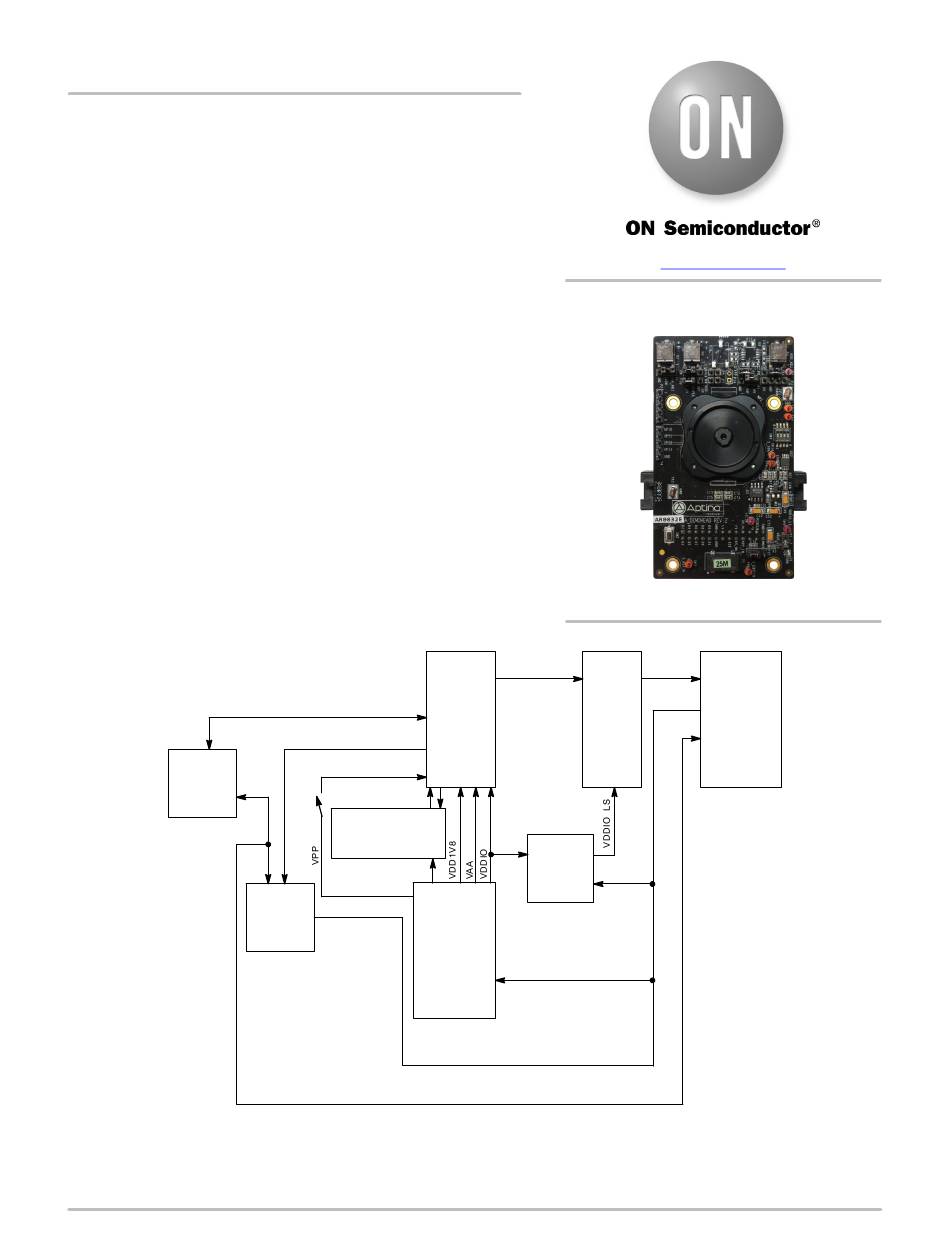

AR0832EASC25SUFAH-GEVB
AR0832EA Evaluation Board
User's Manual

Evaluation Board Overview

The evaluation boards are designed to demonstrate the features of
image sensors products from ON Semiconductor. This headboard is
intended to plug directly into the Demo 2X system. Test points and
jumpers on the board provide access to the clock, I/Os, and other
miscellaneous signals.

Features

Clock Input
Default – 25 MHz Crystal Oscillator
Optional Demo 2X Controlled MClk
Two-wire Serial Interface
Selectable Base Address
Parallel Interface
MIPI Interface
ROHS Compliant

Block Diagram

2
I
C Bus
Repeater
© Semiconductor Components Industries, LLC, 2016
February, 2016 − Rev. 0
2
Sensor I
C Bus
MIPI Clock
MIPI Data
Jumper Select
VDD, VDDPL
(VDD1V2, VREGOUT)
VDD1V2
2 x RJ45
Regulators
Figure 2. Block Diagram of AR0832EASC25SUFAH−GEVB
EVAL BOARD USER'S MANUAL

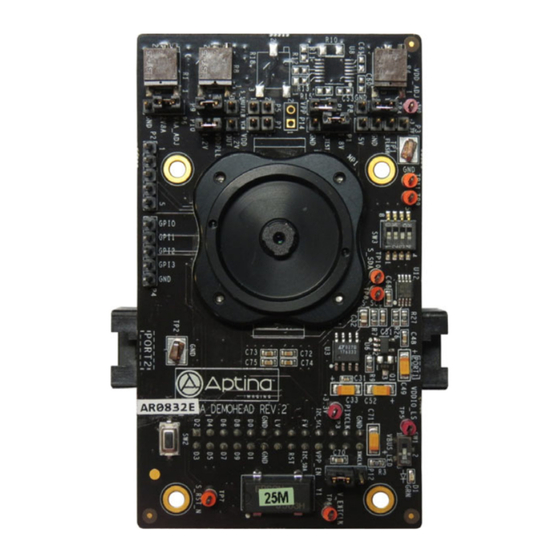

Figure 1. AR0832EA Evaluation Board
D[11:0]PIXCLK
LV
FV
Voltage
Sensor
Level
Shifter
Voltage
Follower
Voltage
5 V
2
I
C Bus
1
www.onsemi.com
Demo2
Connector
Publication Order Number:
EVBUM2382/D
