Summary of Contents for ON Semiconductor AR0841CSSC32SMFAH3-GEVB
Page 1
The evaluation boards are designed to demonstrate the features of EVAL BOARD USER’S MANUAL image sensors products from ON Semiconductor. This headboard is intended to plug directly into the Demo 3 system. Test points and jumpers on the board provide access to the clock, I/Os, and other miscellaneous signals.

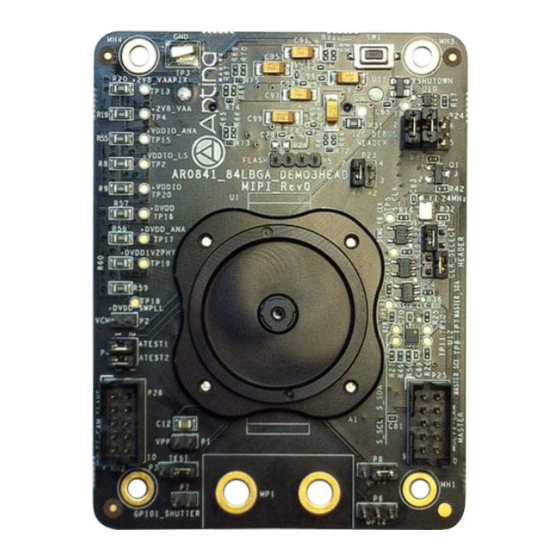

AR0841CSSC32SMFAH3−GEVB Top View RESET Switch SW1 C Debug P24 FLASH P5 EEPROM ADDR Sel P23 CLK_SELECT P22 AF_VCM P2 ATEST P4 VPP P1 TEST P3 GPI3 P8 SHUTTER P7 GPI2 P6 Figure 3. Top View of the Board − Default Jumpers Bottom View Baseboard Connector J1 Figure 4.
Page 3
AR0841CSSC32SMFAH3−GEVB Jumper Pin Locations The jumpers on headboards start with Pin 1 on the leftmost side of the pin. Grouped jumpers increase in pin size with each jumper added. Pin 1 Pins 1−4 Figure 5. Pin Locations for a Single Jumper. Pin 1 is Located at the Leftmost Side and Increases as it Moves to the Right Pin 1 Pins 1 and 2...
Page 4
When Pushed, 240 ms Reset Signal will be Sent to AR0841 Interfacing to ON Semiconductor Demo 3 Baseboard The ON Semiconductor Demo 3 baseboard has a similar The four mounting holes secure the baseboard and the 52-pin connector which mates with J1 of the headboard.
onsemi, , and other names, marks, and brands are registered and/or common law trademarks of Semiconductor Components Industries, LLC dba “onsemi” or its affiliates and/or subsidiaries in the United States and/or other countries. onsemi owns the rights to a number of patents, trademarks, copyrights, trade secrets, and other intellectual property. A listing of onsemi’s product/patent coverage may be accessed at www.onsemi.com/site/pdf/Patent−Marking.pdf.
