Summary of Contents for CommScope ION-M7P

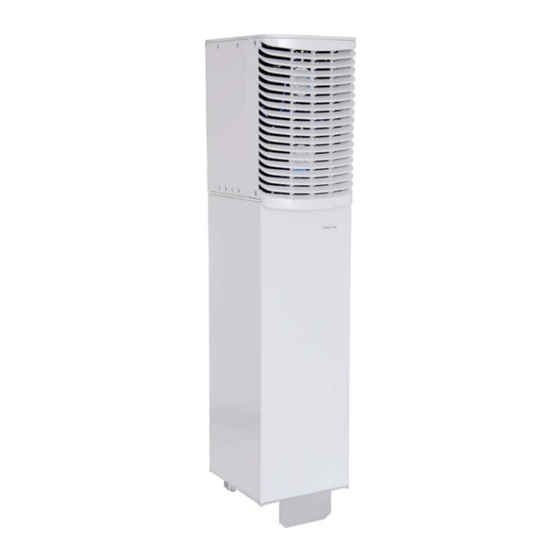

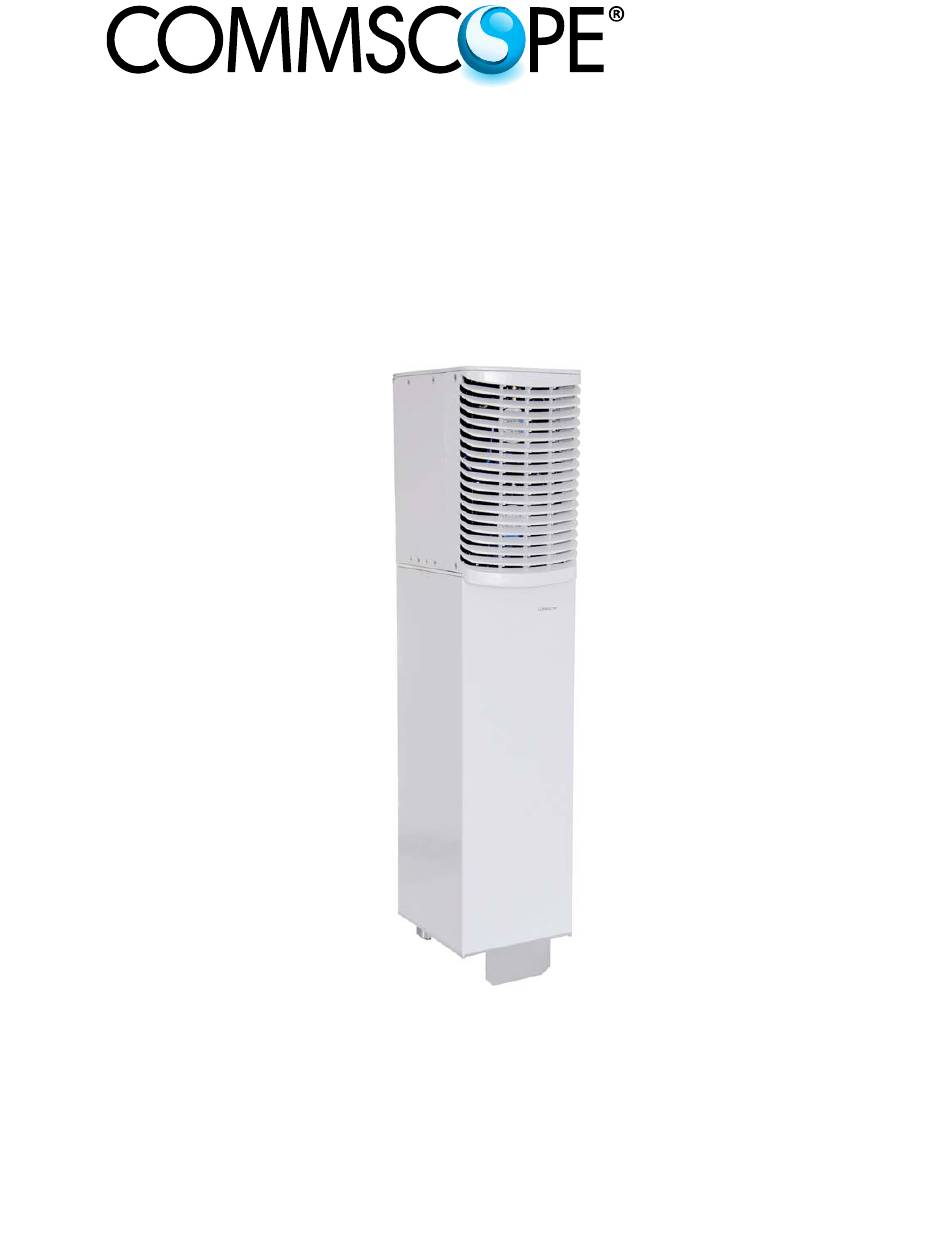

- Page 1 ® -M7P/17EHP/19P Optical Remote Unit (M2-Cabinet) Manual MF0150A4A...
- Page 2 DISCLAIMER: This document has been developed by CommScope, and is intended for the use of its customers and customer support personnel. The information in this document is subject to change without notice. While every effort has been made to eliminate errors, CommScope disclaims liability for any difficulties arising from the interpretation of the information contained herein.
-
Page 3: Table Of Contents
37 3.2.12. External Alarm Inputs and Outputs 39 3.2.13. Commisioning Flowchart 41 ALARMS AND TROUBLESHOOTING MAINTENANCE 5.1. GENERAL 44 5.2. REPLACING THE FAN UNIT 45 5.3. CLEANING THE HEAT SINK MF0150A4A.doc Manual for ION-M7P/17EHP/19P Page 3... - Page 4 4-8 Pole mounting - brackets ................21 figure 4-9 Pole mounting - fasten RU ................. 21 figure 4-10 Connector flange of ION-M7P/17EHP/19P, AC version ......23 figure 4-11 Connector flange of ION-M7P/17EHP/19P, DC version ......24 ...
-
Page 5: General
Radio & Telecommunications Terminal Equipment Radio Frequency Remote Unit Receiver SNMP Simple Network Management Protocol Transmitter Uplink UMTS Universal Mobile Telecommunication System Uninterruptible Power Supply WCDMA Wideband Code Division Multiple Access Wavelength Division Multiplex MF0150A4A.doc Manual for ION-M7P/17EHP/19P Page 5... -
Page 6: Health And Safety
Notice: Only suitably qualified personnel are allowed to work on this unit and only after becoming familiar with all safety notices, installation, operation and maintenance procedures contained in this manual. 6. Notice: Keep operating instructions within easy reach and make them available to all users. Page 6 MF0150A4A.doc Manual for ION-M7P/17EHP/19P... -
Page 7: Compliance
ICNIRP are valid: 0.2 for frequencies from 10 MHz to 400 MHz F (MHz) / 2000 for frequencies from 400 MHz to 2 GHz 1 for frequencies from 2 GHz to 300 GHz MF0150A4A.doc Manual for ION-M7P/17EHP/19P Page 7... - Page 8 émetteur. Les utilisateurs et les installateurs doivent être fournis avec des instructions d’installation de l’antenne et des conditions de fonctionnement de l’émetteur pour satisfaire la conformité aux expositions Page 8 MF0150A4A.doc Manual for ION-M7P/17EHP/19P...
- Page 9 9. Note: This unit complies with European standard EN60950. MF0150A4A.doc Manual for ION-M7P/17EHP/19P Page 9...
- Page 10 To be sold exclusively to mobile operators or authorized installers – no harmonized frequency bands, operation requires license. Intended use: EU and EFTA countries. Indicates conformity with R&TTE directive 1999/5/EC certified by the notified body no. 0700. Page 10 MF0150A4A.doc Manual for ION-M7P/17EHP/19P...
-
Page 11: About Commscope
* In case the Declaration of Conformity (DoC) for the product was not included in the manual CD delivered, it is available upon request from the local sales offices or directly from CommScope at one of the addresses listed in the following chapter. -
Page 12: International Contact Addresses For Customer Support
1. General 1.6. International Contact Addresses for Customer Support Canada United States CommScope Canada Andrew LLC, A CommScope Company 505 Consumers Road, Suite 803 620 North Greenfield Parkway Mail Mail Toronto M2J 4V8, Canada Garner, NC 27529, U.S.A. +1-905-878-3457 (Office) - Page 13 E-mail wisupport.ch@commscope.com Italy Iberia Region - Spain & Portugal CommScope Italy S.r.l., Faenza, Italy Andrew España S.A. A CommScope Company Via Mengolina, 20 Avda. de Europa, 4 - 2ª pta. Mail 48018 Faenza (RA) Mail Parque Empresarial de la Moraleja...
-
Page 14: Introduction
The ION-M7P/17EHP/19P is specifically tested and optimized for LTE, CDMA and WCDMA signals in the 700 MHz, 1900 MHz and 1700/2100 MHz bands. Furthermore it is provisioned for future modulation schemes and communication technologies. - Page 15 The entire system as well as complete network of systems can be managed remotely most efficiently by Commscope`s A.I.M.O.S, which includes alarm monitoring, task automation, statistics, inventory management and ION-M7P/17EHP/19P many more features. Should a sophisticated interface not be required, the Master Unit can be directly connected to the alarm interface of a base station via its contact relay.
-
Page 16: Commissioning
One of the three mounting kits has to be ordered separately. They are not contained within the standard equipment. See chapter 6.3 Spare Parts. Unless otherwise agreed to in writing by CommScope, CommScope’s general limited product warranty (http://www.commscope.com/Resources/Warranties/) shall be the warranty governing the Remote Units, including the installation, maintenance, usage and operation of the Remote Units. - Page 17 Spacing Type screws nuts band lock bolts (plastic) (alum.) Thread PG 13.5 PG 29 Specified 3.3 N-m 27 N-m 6 N-m 2.3 N-m 27 N-m 3.75 N-m 10 N-m torques table 3-1 Specified torques MF0150A4A.doc Manual for ION-M7P/17EHP/19P Page 17...
-
Page 18: Wall-Mounting Procedure
M8x25 screws (E), split lock washers (F), and washers (G). * The dowels are not included with the delivery because the suitable type depends on the on-site conditions (material of wall). Page 18 MF0150A4A.doc Manual for ION-M7P/17EHP/19P... -
Page 19: Pole Mounting With Screw Bands
Note: When fastening the brackets make sure that they are installed congruently and not at an angle to each other. To determine the distance between the clamps refer to figure 3-2 Pole mounting - pitches. MF0150A4A.doc Manual for ION-M7P/17EHP/19P Page 19... -
Page 20: Pole Mounting Procedure With Brackets
(F) and split lock (G) washers, hexagon (E) and locking (D) nuts to mount the brackets to the pole and two M8x25 screws (H), flat (F) and split lock (G) washers to attach the Remote Unit to the bracket. figure 3-6 Pole mounting – with brackets Page 20 MF0150A4A.doc Manual for ION-M7P/17EHP/19P... - Page 21 3.1.3), and fasten it to the lower bracket with the M8x25 screws (H), split lock washers (G), and flat washers (F). The diameter of the pole or column must be in the range from 65 to 120 mm (2.6 to 4.7 inch). MF0150A4A.doc Manual for ION-M7P/17EHP/19P Page 21...
-
Page 22: Electrical Installation
8. Notice: Use an appropriate torque wrench for the coupling torques: for 7/16 DIN-type (25 N-m / 19 ft lb) with 1 ¼ in opening, e. g. item no. 244377 available from the CommScope e-catalog for 4.3-10 type connectors (5 N-m, 44 in lb) with 22mm (7/8) in opening, e.g. -
Page 23: Connections
3. Commissioning 3.2.3. Connections Alarm output connector Alarm input connector not required for operation Antenna Status connector Antenna connector AC Mains connector Optical- fiber Grounding connector bolt figure 3-10 Connector flange of ION-M7P/17EHP/19P, AC version MF0150A4A.doc Manual for ION-M7P/17EHP/19P Page 23... - Page 24 Alarm input connector Antenna not required connector for operation Status DC Mains connector Antenna connector Grounding bolts Optical- fiber connector figure 3-11 Connector flange of ION-M7P/17EHP/19P, DC version figure 3-12 DC Connector of ION-M7P/17EHP/19P Page 24 MF0150A4A.doc Manual for ION-M7P/17EHP/19P...
-
Page 25: Grounding (Earthing)
Use an appropriate torque wrench for the coupling torques: for 7/16 DIN-type (25 N-m / 19 ft lb) with 1 ¼ in opening, e. g. item no. 244377 available from the CommScope e-catalog - for 4.3-10 type connectors (5 N-m, 44 in lb) with 22 mm (7/8) in opening, e.g. -
Page 26: Cleaning Procedure For Rf Cable Connectors
Caution: Risk of injury by flying particles when compressed air is used. Wear protective clothing, especially protective glasses. 3. Remove metal chips and small particles from the mating and inner surfaces of the connector using compressed air. Page 26 MF0150A4A.doc Manual for ION-M7P/17EHP/19P... - Page 27 6. Clean the inside surface of the inner ring with a cotton bud drenched with isopropyl alcohol. 7. Clean the inside of the center conductor spring tines with a cotton bud drenched with isopropyl alcohol. MF0150A4A.doc Manual for ION-M7P/17EHP/19P Page 27...
- Page 28 10. Continue with the winding area using lint-free wipe drenched with isopropyl alcohol. 11. Continue with the inside mating surface of the inner ring. 12. Clean the outside surface of the center pin. Page 28 MF0150A4A.doc Manual for ION-M7P/17EHP/19P...
-
Page 29: Antenna Cable Connector Assembly
2. Join the connectors and turn the coupling nut until the thread grips. 3. Push in the connector until it clicks. 4. Fasten the coupling nut hand-tight. Do not turn the connector but the coupling nut only. MF0150A4A.doc Manual for ION-M7P/17EHP/19P Page 29... -
Page 30: Optical-Fiber-Cable Connection - Rules
The fiber-optic cables are connected to the optical transceiver. Note: Angled connectors are not compatible with straight optical connectors; non-compatibility of connectors will result in permanent damage to both connectors. Page 30 MF0150A4A.doc Manual for ION-M7P/17EHP/19P... - Page 31 8. Repeat steps 5 through 7 until end face is clean. Note: For a more detailed description, please refer to: http://www.cisco.com/en/US/tech/tk482/tk876/technologies_white_paper09186 a0080254eba.shtml MF0150A4A.doc Manual for ION-M7P/17EHP/19P Page 31...
-
Page 32: Protective Plug Connection
To release the contact for disassembling, push the inner snap to the side and pull the contact out. To release upper and lower insulation bodies for disassembling, use a small screwdriver and carefully open the snap-connections at the left and the right side of the insulator without damaging them. Page 32 MF0150A4A.doc Manual for ION-M7P/17EHP/19P... - Page 33 **** Locking mechanism: The system of locking the plug is based on a “push-pull” mechanism. The locking ring has to be pushed forward to lock the connector and pulled back to free the connection. MF0150A4A.doc Manual for ION-M7P/17EHP/19P Page 33...
-
Page 34: Protective-Tube Kit
Protective tube the backshell! Push the fiber-optic cable carefully through the tube until it comes out at the other end. G1055M0 figure 3-16 Tube-kit installation Page 34 MF0150A4A.doc Manual for ION-M7P/17EHP/19P... -
Page 35: Mains Power Connection
8. Insert the plug into the Mains connector and tighten the clamping ring until it is hand tight. Do not over-tighten the clamping ring. Pin PE Pin1 Pin3 Pin2 figure 3-17 Mains power connector figure 3-18 Mains power cable - AC MF0150A4A.doc Manual for ION-M7P/17EHP/19P Page 35... - Page 36 120 Volt / 20 Amp max. or 240 Volt / 16 Amp, single-phase, 50 / 60 Hz AC service is needed, i.e. the external AC breaker should be 20 Amps max. for 120-Volt service or 13 - 16 Amps for 240-Volt service. Page 36 MF0150A4A.doc Manual for ION-M7P/17EHP/19P...
-
Page 37: Mains Power Connection Dc
Then remove the rubber plug. Rubber plug Double lug DC cable connectors need to be M6 with a stud hold spacing of 15.88 mm (5/8”). MF0150A4A.doc Manual for ION-M7P/17EHP/19P Page 37... - Page 38 Turn off mains* power before connecting the power cord at the Remote Unit, then, engage mains again. * Mains power must be interruptible with an external mains breaker (40 A). For the mains breaker, observe the local regulations of the DC provider. Page 38 MF0150A4A.doc Manual for ION-M7P/17EHP/19P...
-
Page 39: External Alarm Inputs And Outputs
Spare Parts. Subminiature circular connectors series 712 with five and seven contacts, which are contained in the alarm kit, can be ordered directly from the Binder Connector Group, the manufacturer, or indirectly from CommScope. For the location of the external-alarm inputs and outputs see figure “Connector Flange”. - Page 40 Just wait a few minutes until the thermoswitch reaches the normal operating temperature again. Note: The manufacturer / supplier of this system assumes no liability for damage caused by equipment connected to external outputs or by effects from such equipment. Page 40 MF0150A4A.doc Manual for ION-M7P/17EHP/19P...
-
Page 41: Commisioning Flowchart
E2000 APC8° connector Spanner with opening 32 Electrical connections Mains cable Connect AC power to the power cable. Connecting kit Ensure there is a circuit breaker between mains and RU. G1055Z0 Mains Switch mains power on. MF0150A4A.doc Manual for ION-M7P/17EHP/19P Page 41... - Page 42 ALC alarm: Decrease DL input power of service affected band. VSWR alarm: Check antenna and cable. Finished setting up all RUs? Proceed to MU to set up the SW Output: Go to MU All RUs okay. Page 42 MF0150A4A.doc Manual for ION-M7P/17EHP/19P...
-
Page 43: Alarms And Troubleshooting
Master Controller).Explicit troubleshooting is also available in the MU software (software manual or WEB Interface). The connection of the external alarms inputs and outputs provided is described in chapter 3.2.12. MF0150A4A.doc Manual for ION-M7P/17EHP/19P Page 43... -
Page 44: Maintenance
Note: Label any unlabelled cables before disconnecting them to ensure correct reconnection. Unless otherwise agreed to in writing by CommScope, CommScope’s general limited product warranty (http://www.commscope.com/Resources/Warranties/) shall be the warranty governing the Remote Units, including the installation, maintenance, usage and operation of the Remote Units. -
Page 45: Replacing The Fan Unit
Take out the fan unit, replace it by the new one, fasten the four Pan-head screws for the fan unit, re-connect the fan connector and mount the cover to the cabinet. Fan connector MF0150A4A.doc Manual for ION-M7P/17EHP/19P Page 45... -
Page 46: Cleaning The Heat Sink
Take care that the material is not scratched or damaged. 5. After cleaning the heat sink, mount the fan unit and the fan cover again according to section 5.2 Replacing the Fan Unit. Then, reconnect mains power and power up the unit. Page 46 MF0150A4A.doc Manual for ION-M7P/17EHP/19P... - Page 47 6. Appendix 6. Appendix 6.1. Illustrations 1 76 Airf low Power IN C able Prot ect ive Tube Kit C able bridge to E xt ension U nit figure 6-1 Cabinet drawing MF0150A4A.doc Manual for ION-M7P/17EHP/19P Page 47...
-
Page 48: Sw Requirements
824 x 176 x 220 mm (32.4 x 6.9 x 8.7 in) Weight 31 kg (68.2 Ib) * Spacing required: 50 mm (1.97 in) around unit All data is subject to change without notice. Page 48 MF0150A4A.doc Manual for ION-M7P/17EHP/19P... -
Page 49: Spare Parts
Do not damage the warranty labels on the components, as this voids the warranty. If any FRU not contained in the following list needs to be replaced, please contact customer service for additional instructions. Spare Parts List of the Remote Unit ION-M7P/17EHP/19P Designation: ID No. Fan Unit M2-Cabinet... -
Page 50: Index
Environmental and Safety ........ 48 Mechanical ............48 E Status LED ............. 43 SW Requirements..........48 External-Alarm Inputs & Outputs ......39 T F Troubleshooting ............. 43 Fiber-Optical Components (Installation, Cleaning) 31 Flange Connector (7 poles) ........40 Page 50 MF0150A4A.doc Manual for ION-M7P/17EHP/19P...
