SYSTIMAX 360
iPatch

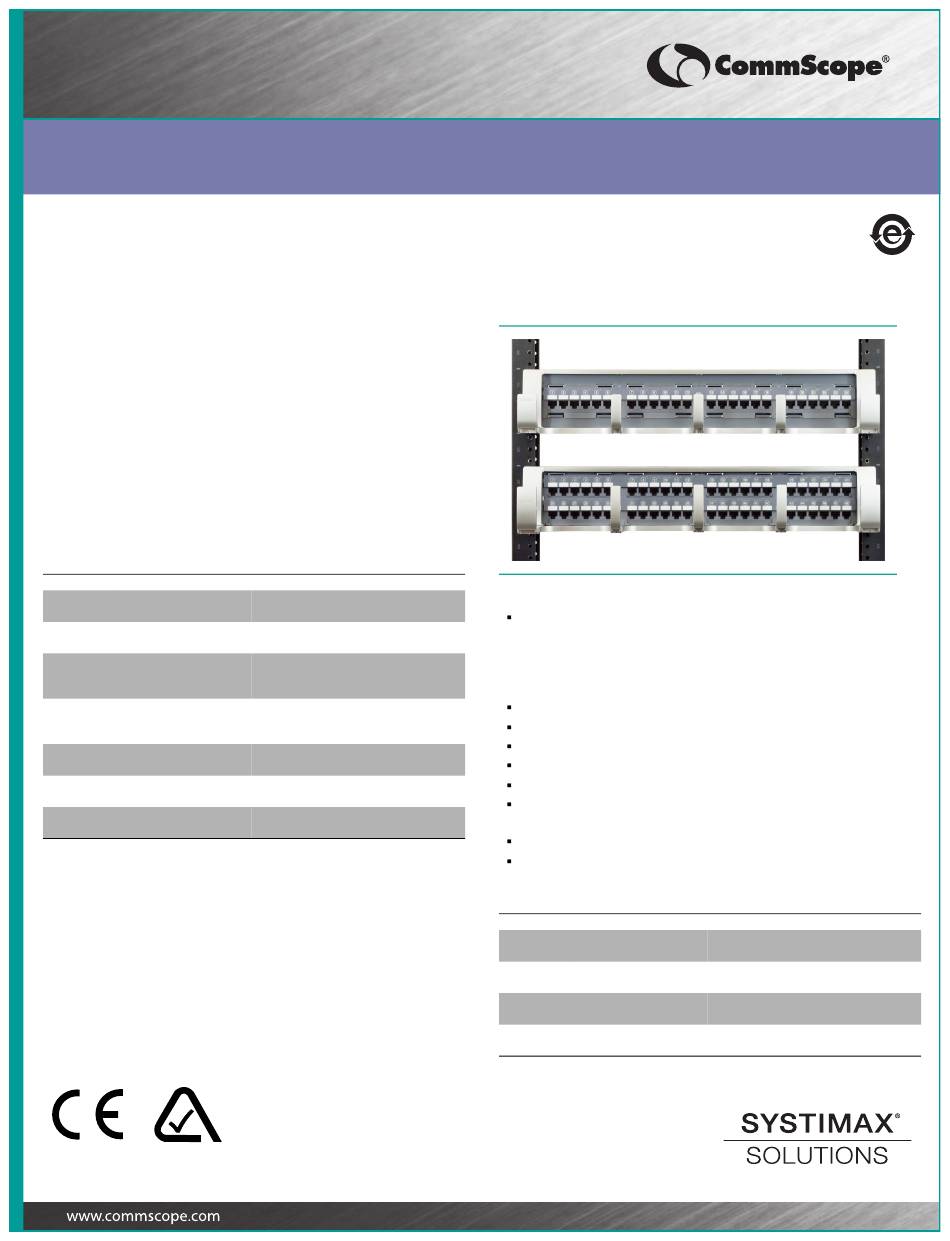

Instruction Sheet
Material ID 860 489 905
Issue 1, August 2010

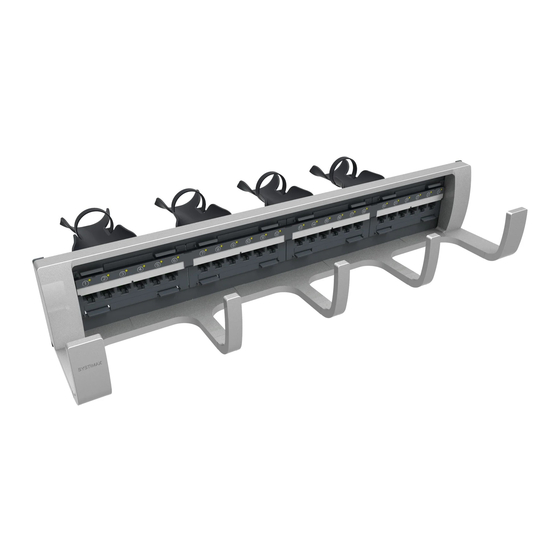

The SYSTIMAX 360™ iPatch
Panel is a SYSTIMAX approved product. This patch
panel can be used in an iPatch System for EIA-T568A or
EIA-T568B wiring applications. The 24-port version
holds four GS3-DM or GS5-DM 6-pack modules and the
48-port version holds four 12-pack modules. Both
versions are two units high and mount in a standard
19-inch rack with a universal hole pattern. Integrated
patch cord management and removable rear cable
management are included.
Ordering information is listed below.
Material ID
Product Code
760123489
360-iP-PMAX-GS3-24
760123497
360-iP-PMAX-GS5-24
760130377
360-iP-PMAX-GS3-48
760130385
360-iP-PMAX-GS5-48
760130419
360-iP-UP-KIT-PMAX-24 360 iPatch PATCHMAX 24-port upgrade
760130427
360-iP-UP-KIT-PMAX-48 360 iPatch PATCHMAX 48-port upgrade
760149096
360-iP-JMPR-PMAX
Note: To use the SYSTIMAX 360 iPatch PATCHMAX Modular Panel
in an existing iPatch System, the iPatch Managers must be running
software version 7.20N or later. The System Manager software, used
to manage the system, must be Version 6.5 or later.
that you upgrade the System Manager software to Version 6.5 or a
later version before you install the SYSTIMAX 360 iPatch
PATCHMAX Modular Shelf.
System Manager will automatically
upgrade the iPatch Manager software.
ACN 107 198 425
The iPatch System is covered by U.S. patents 6285293 and 6522737,
and other U.S. and foreign patents and patents pending.
®
®
PATCHMAX
Modular Panel
®
®
PATCHMAX
Modular
Description
360 iPatch PATCHMAX 24-port panel
equipped with GS3-DM 6-pack modules
360 iPatch PATCHMAX 24-port panel
equipped with GS5-DM 6-pack modules
360 iPatch PATCHMAX 48-port panel
equipped with GS3-DM 12-pack
modules
360 iPatch PATCHMAX 48-port panel
equipped with GS5-DM 12-pack
modules
(for 10 panels)
(for 5 panels)
360 iPatch PATCHMAX Cable Bus
Jumpers (10 jumpers)
We recommend
Components in this Package
Modular panel with the following items installed:
— GS3-DM or GS5-DM 6-pack or 12-pack modules (4)
— cabling labels for B wiring (4 or 8)
— iPatch sensor overlay (1 or 2)
— panel bus jumper (1 or 2)
Patch cord management
Front bezel
Cable support bar
Cable troughs (4)
Cable straps (4)
#12-24 x 1/2 inch screws (4) for mounting the panel in a
19-inch (482.6 mm) rack
Cabling labels for A wiring (4 or 8)
Termination Managers (28 or 56) and instruction sheet
Related Components (Ordered Separately)
Material ID
Product Code
760102269
360-PM-GS3-DM
760111393
360-PM-GS5-DM
760117382
360-PM-GS3-DM-12P
760117390
360-PM-GS5-DM-12P
Description
360 PATCHMAX GS3-DM replacement
distribution 6-pack module
360 PATCHMAX GS5-DM replacement
distribution 6-pack module
360 PATCHMAX GS3-DM replacement
distribution 12-pack module
360 PATCHMAX GS5-DM replacement
distribution 12-pack module
Advertisement
Table of Contents
Related Manuals for CommScope SYSTIMAX 360 iPatch PATCHMAX
Summary of Contents for CommScope SYSTIMAX 360 iPatch PATCHMAX
- Page 1 Cabling labels for A wiring (4 or 8) Termination Managers (28 or 56) and instruction sheet Note: To use the SYSTIMAX 360 iPatch PATCHMAX Modular Panel Related Components (Ordered Separately) in an existing iPatch System, the iPatch Managers must be running software version 7.20N or later.
-
Page 2: Important Safety Instructions
Care should be taken not to compromise the stability of the rack by installation of this equipment. SYSTIMAX 360 iPatch PATCHMAX shelves use infrared Important: 4 Connect the panel bus jumper: sensing technology and should be installed where they are not a Remove the adhesive backing from the cable retainers on the exposed to direct sunlight or other infrared sources. - Page 3 ® ® Instruction Sheet: SYSTIMAX 360™ iPatch PATCHMAX Modular Panel Cabling Modules Figure 5 Cabling Modules from the Rear of the Panel ™ ® ® The SYSTIMAX 360 iPatch PATCHMAX Modular Panel is designed to be terminated from either the front or rear of the panel. Figure 4 identifies the IDC (position) numbers and pair numbers for cabling modules.
- Page 4 ® ® Instruction Sheet: SYSTIMAX 360™ iPatch PATCHMAX Modular Panel 3 Select the location where you want to temporarily install the 5 Pull the cables through the panel opening where the module will module to be cabled. Then temporarily remove the module from be installed and mark the cables for termination, leaving an the selected location (Figure 7).
- Page 5 ® ® Instruction Sheet: SYSTIMAX 360™ iPatch PATCHMAX Modular Panel 7 After all cables have been connected to the module, remove the Installing the Rear Cable Support (Optional) module and rotate it so the front of the module is facing forward. ™...
-
Page 6: How To Contact Us
3 Pivot the top of the bezel towards the panel until the 3 tabs on the top of the bezel snap into the panel (Figure 15). Figure 15 Installing the Front Bezel 4 Restore power to the rack’s Panel Manager. © 2010 CommScope, Inc. All rights reserved.
