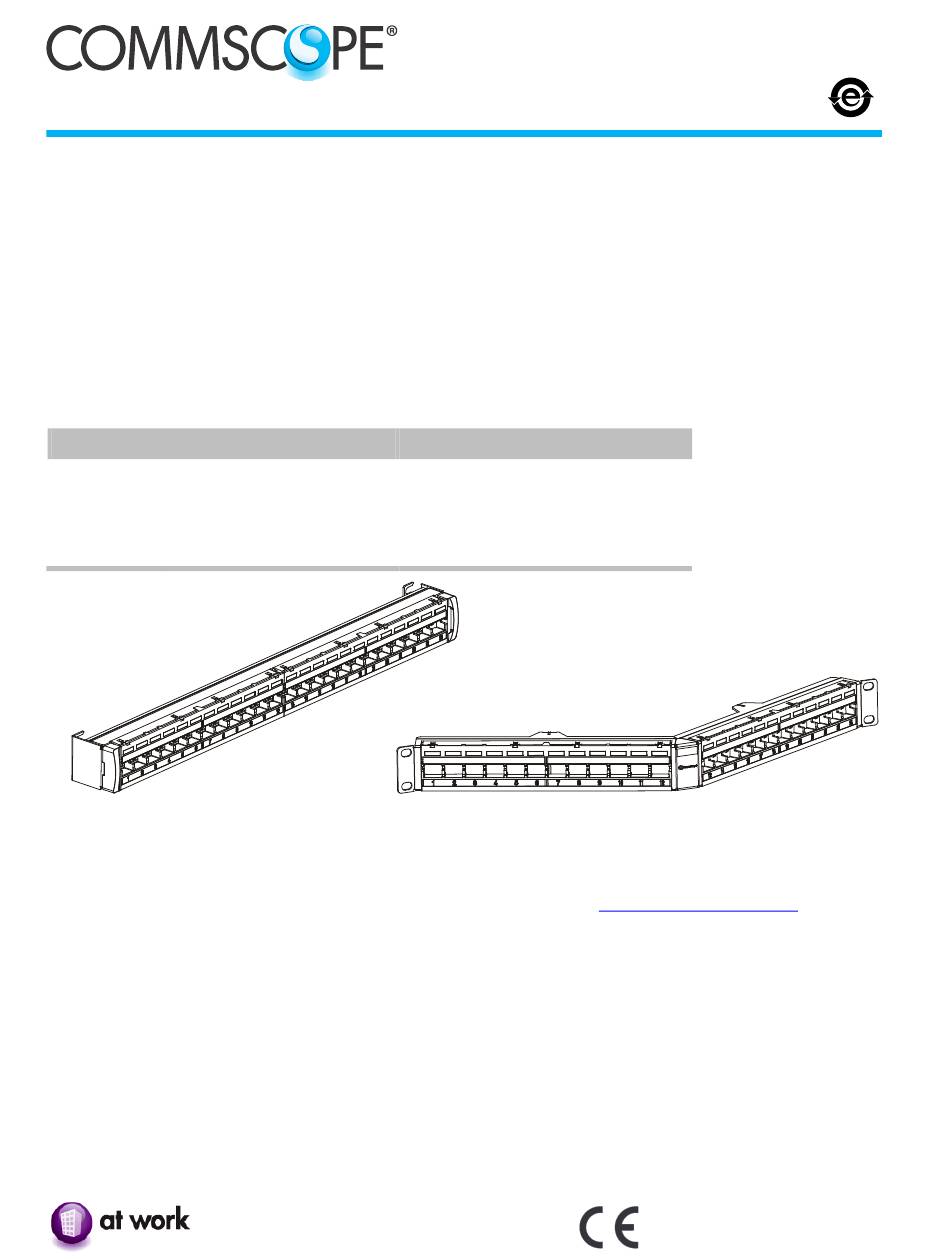

M2400 and M2400A Patch Panel Instructions

General

The M2400 and M2400A modular panels are highly flexible 24-port, front or rear accessible patch panel
assemblies available in GigaSPEED
information outlets, modular patch cords, and cables, they are an integral part of the CommScope
system. The panels mount in a standard 19-inch (483 mm) equipment rack with universal hole spacing.
Ordering information is listed below:
Material ID
760118323
M2400-1U-GS
760118315
M2400-1U-PS
760118349
M2400A-1U-GS
760118331
M2400A-1U-PS
M2400 Patch Panel
How to Contact Us
To find out more about CommScope
For technical assistance:
-
Within the United States, contact your local account representative or technical support at
1-800-344-0223. Outside the United States, contact your local account representative or
Authorized Business Partner.
-
Within the United States, report any missing/damaged parts or any other issues to
CommScope Customer Claims at 1-866-539-2795. Outside the United States, contact your
local account representative or Authorized Business Partner.
Tools Required
Phillips head screwdriver
www.commscope.com
, PowerSUM, or UNJ configurations. When installed with M-series or UNJ
Part No.
M2400 GS panel (GigaSPEED)
M2400 PS panel (PowerSUM/UNJ)
M2400A GS panel (GigaSPEED)
M2400A PS panel (PowerSUM/UNJ)
®
products, visit us on the web at
© 2012 CommScope, Inc. All rights reserved
Instruction Sheet 860481019
Description
M2400A Patch Panel
http://www.commscope.com/
For RoHS Inquiries:
CommScope Inc.
Corke Abbey, Bray
Co. Dublin, Ireland
Attn: Legal Department
Issue 4, November 2012
connectivity
Page 1 of 7

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the M2400 Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for CommScope M2400 Series

  • Page 1 , PowerSUM, or UNJ configurations. When installed with M-series or UNJ  information outlets, modular patch cords, and cables, they are an integral part of the CommScope connectivity system. The panels mount in a standard 19-inch (483 mm) equipment rack with universal hole spacing.
  • Page 2 860481019 www.commscope.com Instruction Sheet Parts List Verify parts against the parts list below: Quantity Description M2400 Panel M2400A Panel ― ― M2400 panel assembly ― ― M2400A panel assembly ― ― Panel end caps ― ― MPS/UNJ outlet caps ―...
  • Page 3 860481019 Issue 4, November 2012 Install Panel on Rack Align slots in panel with screws 12-24 x 1/2” screw Slide panel to right to engage screws 1. Position panel against rack rails offset to the left of the partially installed screws.
  • Page 4 860481019 www.commscope.com Instruction Sheet Install End Caps Panel Rack Snap end caps into place 1. Snap end caps into place on panel as shown. Step 1B – M2400A (Angled) Panel Installation Install Panel on Rack 19-inch equipment rack 12-24 x ½” screws M2400A panel 12-24 x ½”...
  • Page 5 860481019 Issue 4, November 2012 Step 2 ― Attach Separately Orderable Cable Management Bar M2400 panel shown 1U panel spacing 12-24 x 1/2” screws 1. Attach cable management bar to rear of equipment rack using the four provided 12-24 x 1/2” screws as shown.
  • Page 6 860481019 www.commscope.com Instruction Sheet Step 4 – Install Port Designation Labels and Icons Icons Labels for port designation 1. Apply labels and icons to front of panel as shown for port designation. Step 5 – Using Module Removal Tool (Part of Removal Tool Kit 760122713)
  • Page 7 860481019 Issue 4, November 2012 To Remove an Outlet M2400 panel shown Removal tool Locking tabs 1. Position tool as shown and insert into front of outlet to depress locking tabs. 2. Remove outlet from rear of panel. To Remove Modular Cap...
