Summary of Contents for Decon wheel BeRollka Rookie

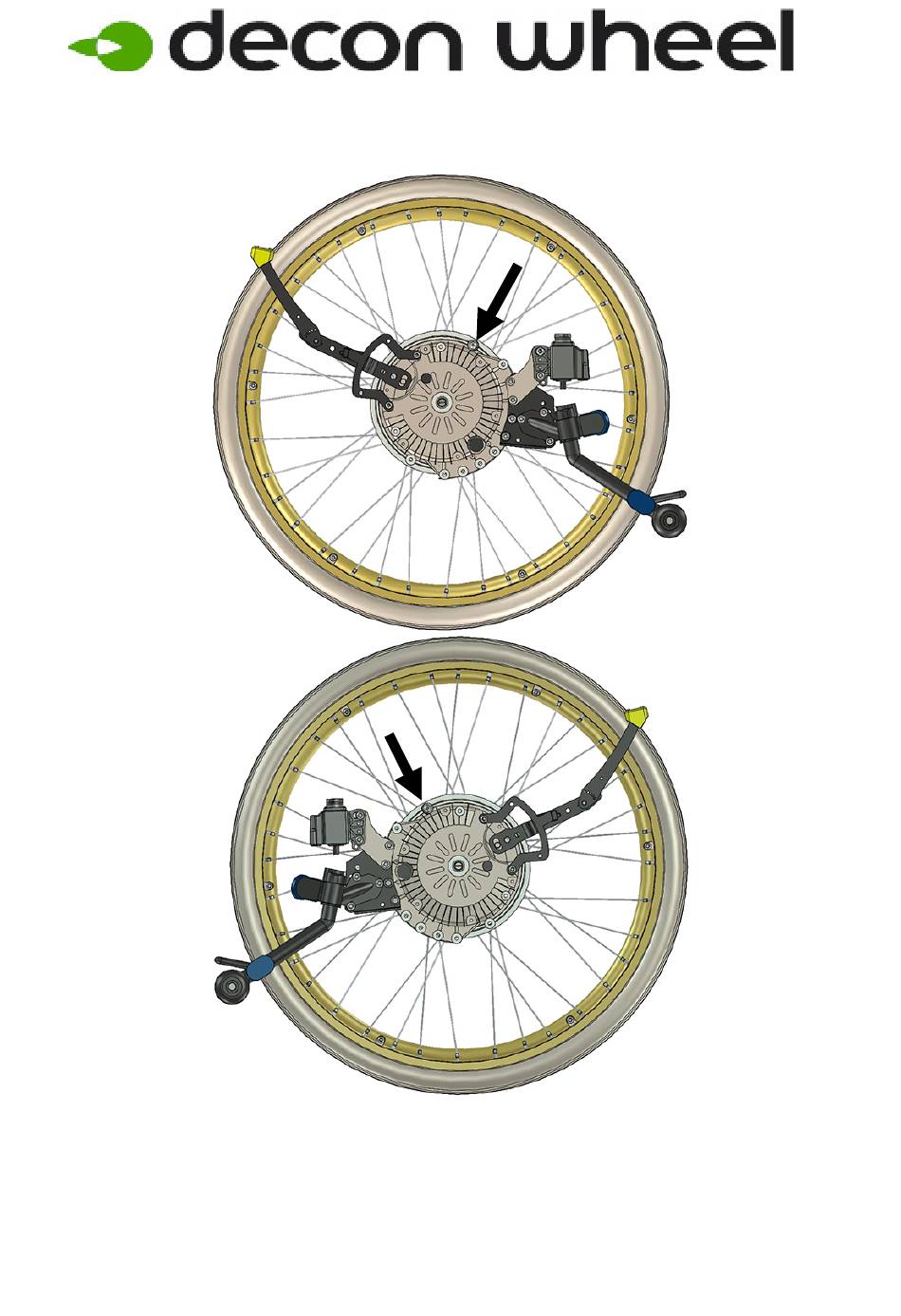

- Page 1 Assembly instructions for BeRollka Rookie MED3104 1. Remove wheels and hub sleeve with brakes on both sides. 2. Check the correct placement for the stop pin and that the battery box is removed. 2020-04-27...
- Page 2 3. Assemble the plate (right side) according to picture. Parts pair mounting set: Item No. Part Number Description MED2000 Bracket 100 400 007 Spacer XSM8ML Locknut M8 100 400 017 Spacer XSM16M Nut M16 low model 405239 Nordlock Washer 100 400 001 Spacer 100 400 005 Spacer...
- Page 3 Assembler the Attendant control If you move the Joystick to the Left side, then you have to move this too the other side. Alternate: Attendant control unit. (only right side) Attendant control with Joystick control unit. (both sides) With Attendant control unit Item No Part Number Description...
- Page 4 Åtdragningsmoment / Tightening torque Metriska grovgängor, stål. Metric coarse threads, steel. Gänga / Thread Åtdragningsmoment / Tightening torque 1,2 Nm 3 Nm 6 Nm 10 Nm 25 Nm 50 Nm 85 Nm Navhylsor. Sleeves. Gänga / Thread Åtdragningsmoment / Tightening torque M16x1 30 Nm M18x1...
