Assembly instructions for BeRollka B2

MED3102
1. Remove wheels and hub sleever on both sides.

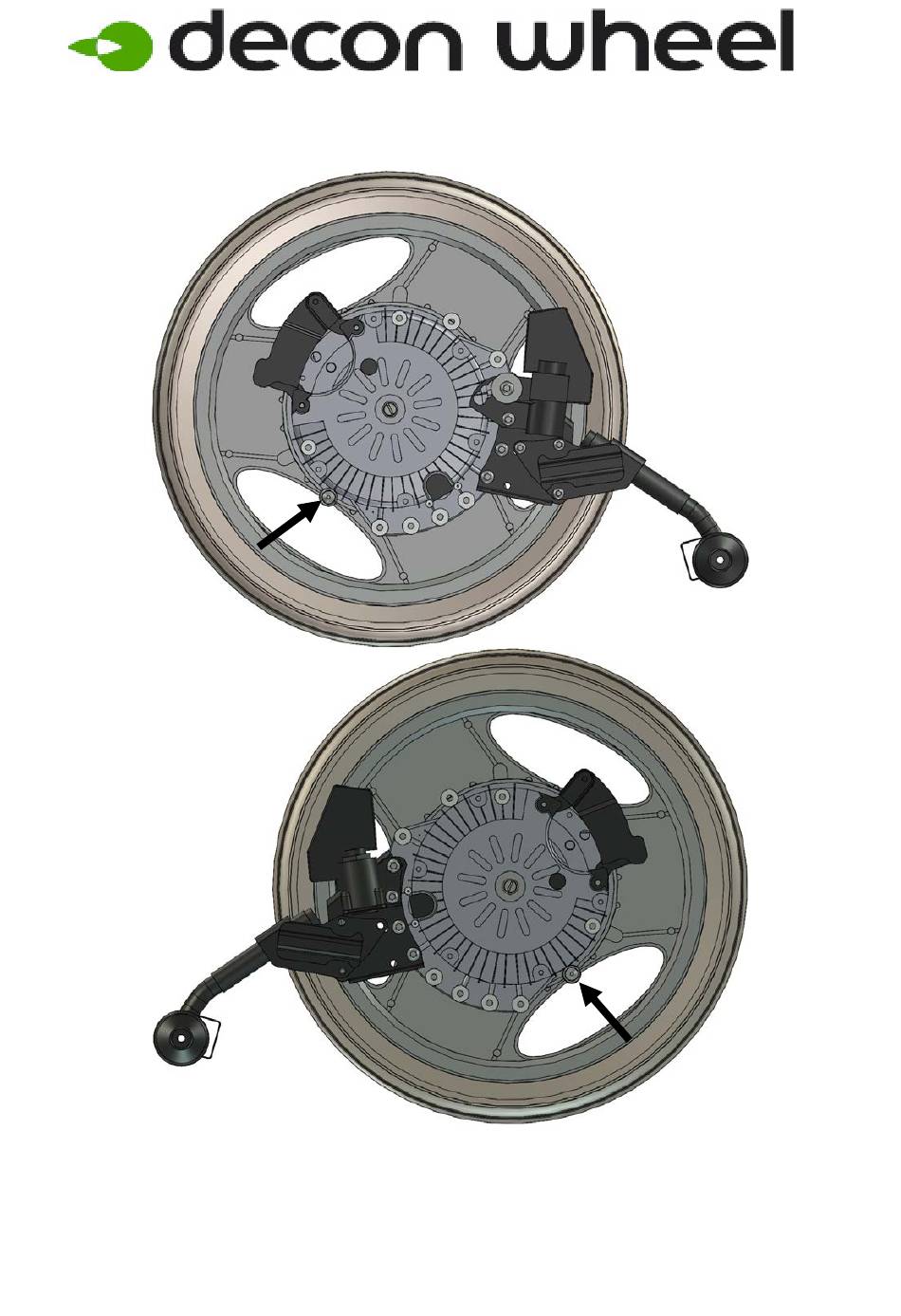

2. Check the correct placement for the stop pin and the battery connectors. Check that
the Battery Box is removed on the E-Drive. Use the anti tip devices on the eDrive.
2018-01-23

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the BeRollka B2 MED3102 and is the answer not in the manual?

Questions and answers

Related Manuals for Decon wheel BeRollka B2 MED3102

Summary of Contents for Decon wheel BeRollka B2 MED3102

  • Page 1 Assembly instructions for BeRollka B2 MED3102 1. Remove wheels and hub sleever on both sides. 2. Check the correct placement for the stop pin and the battery connectors. Check that the Battery Box is removed on the E-Drive. Use the anti tip devices on the eDrive. 2018-01-23...
  • Page 2 3. Assemble the plate (right side) according to picture. Parts pair mounting set: Item No. Part Number Description MED2000 Bracket XSM6ML Locknut M6 XSM6X45 Screw M6 x 45 100 400 017 Spacer HW069 Hubsleever M16x1/12,7 405239 Nordlock Washer M16 XSM16M Nut M16 low model XSM12ML Locknut M12...
  • Page 3 MED1356 Attendant control with Joystick controller Item No. Part Number Description MED1317 Bracket XSM6X45 Screw M6 x 45 XSM6X20 Screw M6 x 20 XSM6BR Plain Washer M6 XSM6ML Locknut M6 MED1316 Plate with pin XA2-2612K-00 Clamp with thread XA2-2612E-00 Clamp with hole 1.
  • Page 4 Attendant control with attendant controller (only right side) For the attendant control unit, you need these parts. Item No Part Number Description XSM6BRTG Torn washer X-Klamma2 Clamp 22 mm XSM6XBR Plain Washer XSM6X20 Screw M6 x 20 2018-01-23...
