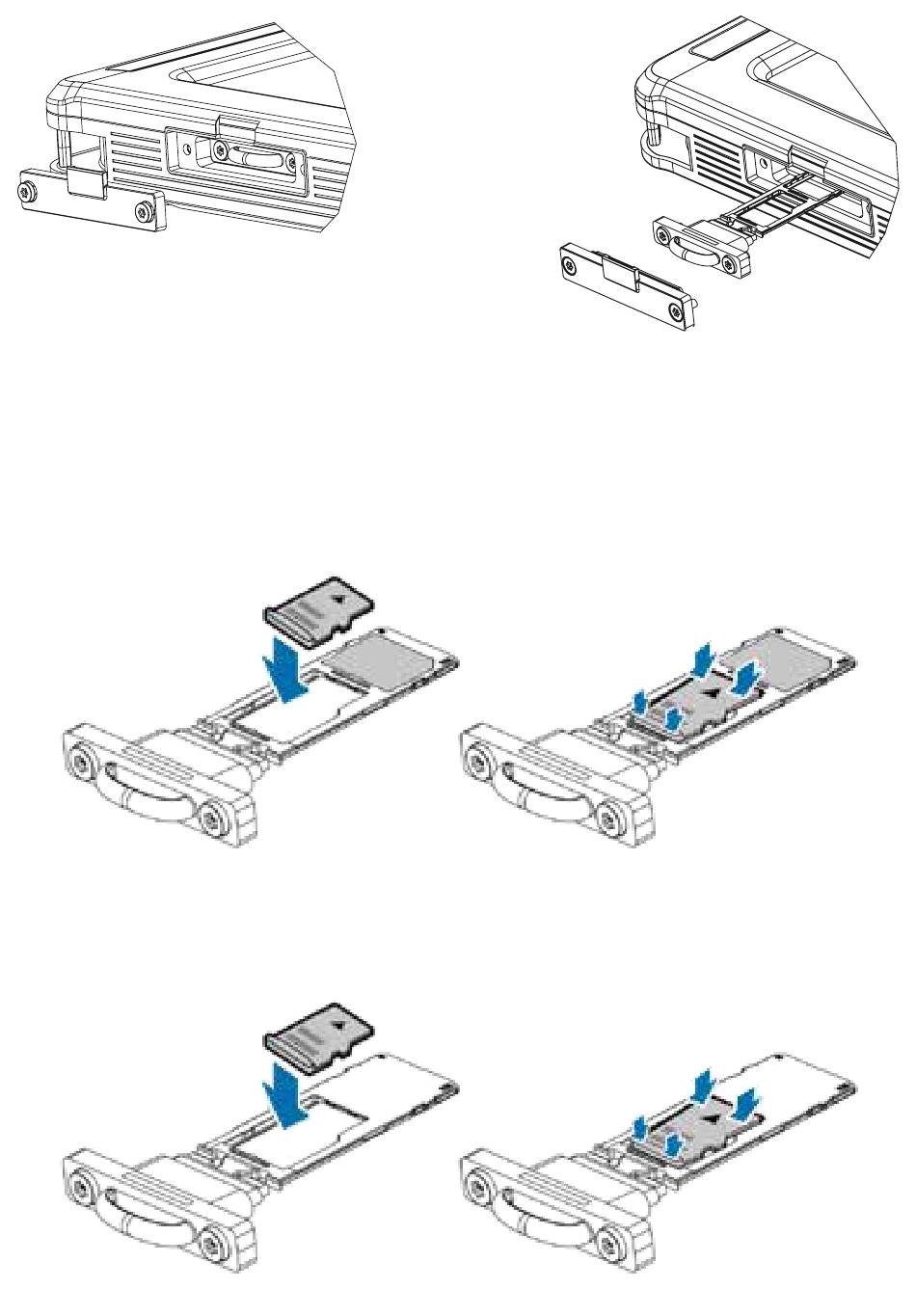

STEP 3 Pull out the tray gently from the tray slot.
When you remove the tray from the device, the mobile data connection will be disabled.
(Tab-Ex03 DZ1 WWAN)
STEP 4 Place a memory card (SD card) on the tray with the gold-coloured contacts
facing downwards. Gently press the memory card into the tray to secure it.
If the card is not fixed firmly into the tray, the memory card may leave or fall out of the tray.
WWAN
WiFi
