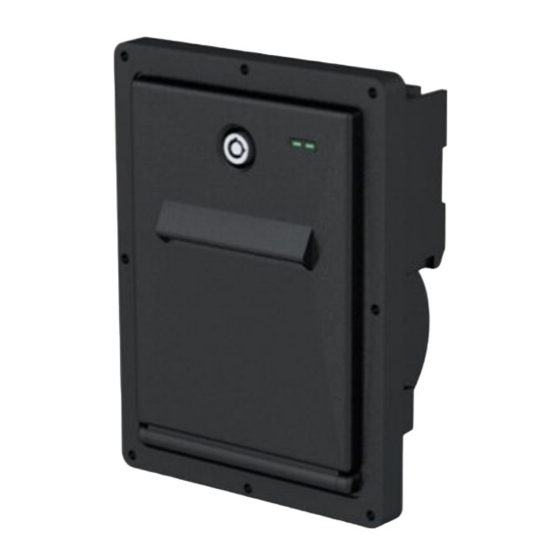

C05
QUICK INSTALL
快速安装
北京炜煌科技发展有限公司
Beijing Bright Technology Development Co.,Ltd

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the C05 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Brightek C05

  • Page 1 QUICK INSTALL 快速安装 北京炜煌科技发展有限公司 Beijing Bright Technology Development Co.,Ltd...
  • Page 2 快速安装手册 ●打印机各部件一览 Printer Parts Names 1.指示灯/键 Indicator Light/Button 6.出纸口 Outlet Connector 11. USB 接口 2.纸轴 Paper Roller 7.锁 Lock 12. 固定孔 fix hole 3.顶轴 Axis 8. 电源接口 Power Connector 4.纸仓盖 Paper Case Cover 9. 串行接口 Serial Interface 5.活动盖板 Cover Plate 10.
  • Page 3 快速安装手册 ●尺寸 Size WH-C05 型尺寸 Product Size: 外型尺寸 Outline Dimension: 128.4mm X 82mm X 173.4 mm 开口尺寸 Mounting Dimension: 104.8mm+0.5 X 147.8mm+0.5 嵌入深度 Inlaid Deepness: 70.8mm 注:请在开口尺寸要求的范围内开口,如开口尺寸过大会造成打印机与面板 固定不牢固。 Note: please open the hole within the mounting dimension, opening dimension beyond this range will cause insecure fixation between the printer and the panel.
  • Page 4 快速安装手册 ●安装 Installation 安装方法: 请把打印机嵌入部分直接插入仪器或设备面板的安装孔后,四角用螺钉和螺母固定内即 可。 所安装的面板厚度为 1.0~4.0mm 厚的金属板或塑料板。 Installation Method: Insert the built-in part of printer into the installing orifice of instrument or equipment, and fix with the screws and nuts. For the faceplate that will be fixed could be metal plate or plastic plate with thickness from 1.0mm to 4.0mm.
  • Page 5 Attention: Do not connect AC to the printer directly, operating voltage should be within ± 5% rated voltage. Power polarity must be correct, otherwise it will cause permanent damage to printer, brightek company don’t assume maintenance compulsory upon this. http://www.whkj.com.cn...
  • Page 6 快速安装手册 ●装纸 Paper Roll 安装步骤: 1.如图 1 所示,将钥匙插入锁内按箭头位置旋转 90°,拉开活动盖板如图 2。 2.继续朝上扣纸仓顶轴,这时打印头走纸轴与打印头分离,打开纸仓盖。 3.把打印纸装入,并拉出一截(超出一点撕纸牙齿),注意把纸放整齐,纸的方向为有药液一 面(光滑面)向上,如图 3。 4.合上纸仓盖,打印头走纸轴压齐打印纸后稍用力把打印头走纸轴压回打印头,把出纸口 多余的纸撕掉,合上活动盖板反方向旋转钥匙 90°锁上盖板,抽出钥匙再把锁盖拨 回原位置。 5.接通打印机的电源,使机头转动,这时看一下纸是否走歪,待机或关上电源。 Replacing the Paper Roll 1. As Fig.1, insert the key and rotate 90 degrees to unlock the cover plate. 2. Open the axis which the arrow point to as shown in Fig.2 and open the paper cover.
  • Page 7 快速安装手册 ●清洁 Cleaning 清洁保养: 热敏打印机使用久了以后,热敏条与滚轴上会留下一些污垢,如果不及时清理会影响到打印机的使 用与寿命。我们建议您不定期做好清理。方法是打开纸舱盖,用棉棒沾少许酒精,轻轻擦拭打印机 热敏头,及纸仓上的滚轴。 Printer Cleaning If the interior of the printer is dusty, print quality can decline. So please clean the printer regularly. Open the cover of printer, then wipe the printer head with a cleaning pen and use a cloth moistened with an alcohol to solution to clean the paper sensor and the platen roller.
  • Page 8 ●产品维护手册 一、打印机故障分析及排除 故障现象 可能原因 处理措施 检查打印纸方向是否装反,有药液一面(光滑面)朝 打印内容空白 打印纸装反 向纸仓内 数据线没插好 检查数据连接线是否有松动或连接是否良好 打印内容乱码 或不打印接口 串口配置参数 串口机型:检查串口配置参数(波特率、数据位、停 数据 不对 止位、校验位和流控制)是否与上位机匹配 打印内容颜色 比较浅或打印 电源电压低 检测打印机供电电源功率是否正常 一半 打印内容缺列 机头加热板有 关闭打印机电源,打开纸仓盖检查机头加热板上是否 或部分内容模 异物 有异物或划伤,如有异物,用医用棉签蘸无水酒精清 糊 洗;划伤请返回厂家检修 没纸状态下, 测纸传感器有 关闭打印机电源,检查机头测纸传感器表面是否有异 机头还一直转 异物 物,如有异物,用医用棉签蘸无水酒精清洗 动 注:打印机内的电子元件不能随意拆卸或代换,如出现故障现象按照以上方法无法修复,请拨 打售后技术支持电话:400-666-6868 二、打印机使用注意事项和日常保养...
