C2




QUICK INSTALL

快速安装









北京炜煌科技发展有限公司
Beijing Bright Technology Development Co.,Ltd

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the C2 and is the answer not in the manual?

Questions and answers

Summary of Contents for Brightek C2

  • Page 1                 QUICK INSTALL   快速安装               北京炜煌科技发展有限公司 Beijing Bright Technology Development Co.,Ltd  ...
  • Page 2: Operation Specification

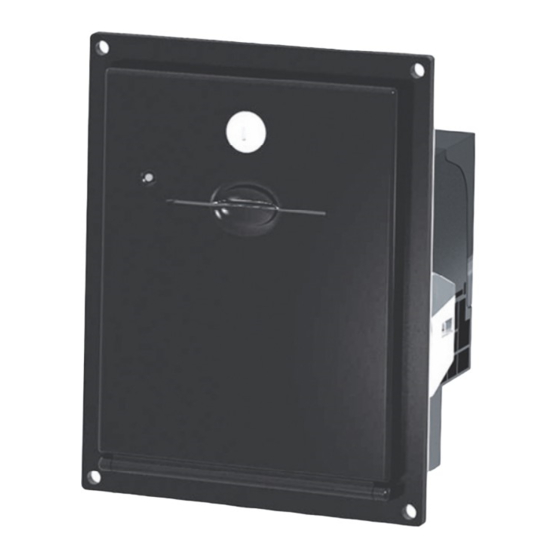

    快速安装手册  ●打印机各部件一览 Printer Parts Names   1.外壳 Shell Casing 6.锁 Lock 2.锁孔 Lock hole 7.法兰面 Flange Face 3.原 C1 打印机 C1 Printer 8.锁扣孔 Lock 4.活动盖板 Cover Plate 9.原 C1 打印机 C1 Printer 5.出纸口 Outlet   按钮开关的操作及指示灯 打印机上电后指示灯保持常亮状态, 打印机缺纸时指示灯闪, 不能接收数据。 正常上电后,按 LF 键走纸,SET 键无效。 自检测方式...
  • Page 3 快速安装手册  ●尺寸 Size     WH-C2 型尺寸 Product Size: 外形尺寸 Outline Dimension: 168mm×132mm×65mm 开口尺寸 Installation Dimension: 106mm(W)×140mm(H) 114.5mm(W)×150mm(H) 嵌入深度 Inlaid Deepness: 55mm/58mm http://www.whkj.com.cn      010‐51655555 ...
  • Page 4: Installation Method

      方法一:请把打印机嵌入部分从前面插入仪器或设备面板的安装孔内,并把螺钉从面板前 面(如图所示箭头处)穿入与螺母连接拧紧,固定好打印机。 方法二:请把打印机嵌入部分从后面插入仪器或设备面板的安装孔内,并把螺钉从面板后 面(如图所示箭头处)穿入与螺母连接拧紧,固定好打印机。 WH-C2 的安装尺寸:106mm(宽)×140mm(高) 114.5mm(宽)×150mm(高) Installation Method Method 1: Insert the built-in part of printer into the installing orifice of instrument or equipment in the front. As the picture show, fix the screws (four arrows) in front of panel, and tighten the printer.
  • Page 5 Attention: Do not connect AC to the printer directly, operating voltage should be within ± 5% rated voltage. Power polarity must be correct, otherwise it will cause permanent damage to printer, brightek company do not assume maintenance compulsory upon this. ...
  • Page 6: Replacing The Paper Roll

    快速安装手册  ●装纸 Paper Roll   安装步骤: 1.如图 1,打开活动盖板,箭头位置按下开关按钮,这时打印头走纸轴、切刀与打印头分 离,轻轻拉开纸仓盖,使纸仓盖彻底打开。 2.装入打印纸,并拉出一截(超出一点撕纸牙齿),把纸放整齐,同时注意纸的方向,有药 液一面(光滑面)向上,如图 2。 3.合上纸仓盖,打印头走纸轴压齐打印纸后稍用力把打印头走纸轴压回打印头,将打印纸 从活动盖板的出纸口中穿出来,然后关上活动盖板,如图 A 和图 B 所示。   4.接通打印机的电源,按键使机头转动,这时看一下纸是否走歪,待机,或关上电源。   Replacing the Paper Roll 1.Open the movable panel, and press the button which arrow point to as shown in Fig 1, and undrawn the paper cover.
  • Page 7: Printer Cleaning

    快速安装手册  ●清洁 Cleaning   清洁保养: 热敏打印机使用久了以后,热敏条与滚轴上会留下一些污垢,如果不及时清理会影响到打 印机的使用与寿命。我们建议您不定期做好清理。 纸仓盖打开后,用棉棒沾少许酒精,轻轻擦拭打印机热敏头,及纸仓上的滚轴。 Printer Cleaning If the interior of the printer is dusty, print quality can decline. So please clean the printer regularly. Open the cover of printer, then Wipe the print head with a cleaning pen and Use a cloth moistened with an alcohol solution to clean the paper sensor and the platen roller.
  • Page 8   ●产品规格一览表 Product Specification 项目 ITEMS 规格 SPECIFICATION 打印方式 Printing method 行式热敏打印 Direct thermal line printing 纸宽 Paper width 57mm 打印宽度 Print width 48mm 分辨率 resolution ration 8 dots/mm (384 dots/line) 打印头寿命 life of printing head 6,000,000 character lines 打印速度 Printing speed 65mm/sec(when the utilization rate is 25%) 字符大小...
