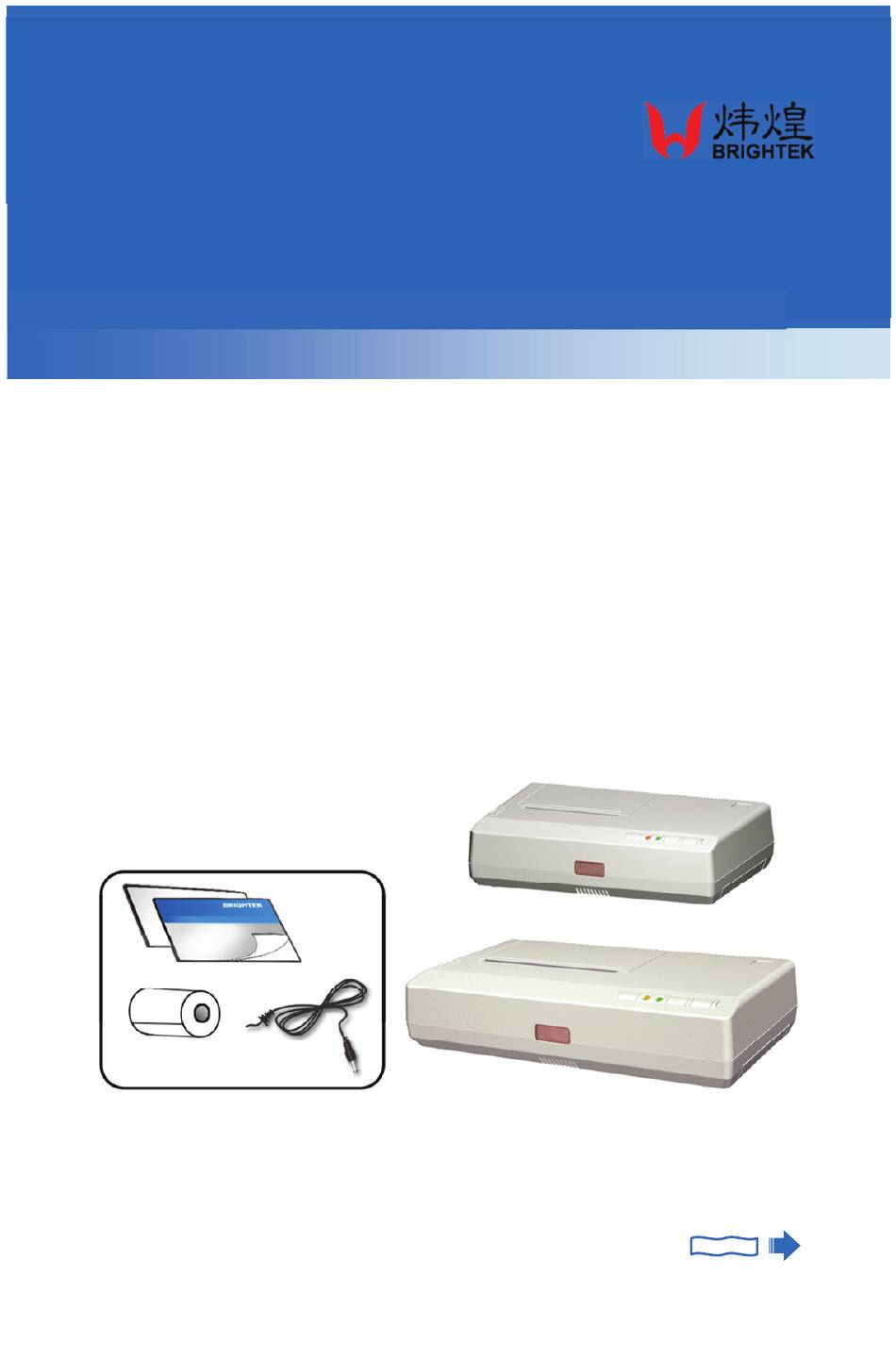

- Page 1 M03/M05 QUICK INSTALL 快速安装 北京炜煌科技发展有限公司 Beijing Bright Technology Development Co.,Ltd ...
-
Page 2: Operation Specification
快速安装手册 ●打印机各部件一览 Printer Parts Names 1.纸仓盖 Paper Case Cover 6.电池盒 Battery Cover 11.LF 键 LF Button 2.打印纸 Paper Roll 7.电源接口 Power Connector 12.SEL 键 SEL Button 3.纸仓开关 Lock 8.电池 Battery 13.状态指示灯 Status Indicator 4.红外接口 IrDA 9.电源开关 Power Button 5.数据接口 Interface Connector 10.电源指示灯... - Page 3 快速安装手册 ●尺寸 Size WH-M03/M05 型尺寸 Product Size: 外型尺寸 Outline Dimension: (M03)160mmX106mmX40mm (M05)182.8mmX106mmX40mm 安装尺寸 Installation Dimension: (M03)128mmX82.5mm (M05)150.8mmX82.5mm http://www.whkj.com.cn 010‐51655555 ...
-
Page 4: Installation Method
快速安装手册 ●安装 Installation 安装方法： 如图推开电池盖，将电池下端两个卡位卡入打印机内，并用力将另一端扣入，电池盖推回 即可。 Installation Method As the picture show, push the battery cover open, and put the battery into the printer rightly, then push the battery cover back. http://www.whkj.com.cn 010‐51655555 ... - Page 5 示红色，充电完毕，双色指示灯变成绿色。 Communication Connection USB and serial port connector please refer to the printer manual on company website. Bluetooth connect: 1.When the blue tooth device connects well with printer, “Brightek Thermal Printer” can be found. 2. The password: 0000. Power Connection In the printer working process, the remaining capacity is greater than 50%, three-color power indicator, green light keep bright;...
-
Page 6: Replacing The Paper Roll
快速安装手册 ●装纸 Paper Roll 安装步骤： 1.如图 2 所示沿着箭头方向翻开活动纸仓盖。 2.把打印纸装入，并拉出一截(超出一点撕纸牙齿),把纸放整齐,同时注意纸的方向有药液 的一面（光滑面）向下。 3.合上纸仓盖，打印头走纸轴压齐打印纸后稍用力把打印头走纸轴压回打印头。 4.开机。按下 LF 键使机头转动，如果纸走歪，再按下 LF 键。 Replacing the Paper Roll 1. As the Fig.1 show, open the paper case cover follow the arrow. 2. Insert the paper roller into the printer, Pull out a small amount of paper. Notice the direction of the paper according to Fig.2. -
Page 7: Printer Cleaning
快速安装手册 ●清洁 Cleaning 清洁保养： 热敏打印机使用久了以后，热敏条与滚轴上会留下一些污垢，如果不及时清理会影响到打 印机的使用与寿命。我们建议您不定期做好清理。方法是打开纸舱盖，用棉棒沾少许酒精， 轻轻擦拭打印机热敏头，及纸仓上的滚轴。 Printer Cleaning If the interior of the printer is dusty, print quality can decline. So please clean the printer regularly. Open the cover of printer, then wipe the printer head with a cleaning pen and use a cloth moistened with an alcohol to solution to clean the paper sensor and the platen roller. - Page 8 热敏卷纸 Thermal roll paper(57mm/80mm wide,30mm ø 接口 Interface Serial/USB, Bluetooth/WIFI, IrDA 温度 Temperature Printer -10℃～50℃(14℉～122℉) 温度 Temperature Battery 0℃～40℃(32℉～104℉) 湿度 Humidity Printer 10%～90% RH 湿度 Humidity Battery 20%～70% RH 主机重量 printer weight (M03)0.260kg / (M05)0.300kg 电池重量 Battery weight 0.100kg ...
