- Page 1 QUICK INSTALL 快速安装 北京炜煌科技发展有限公司 Beijing Bright Technology Development Co.,Ltd ...

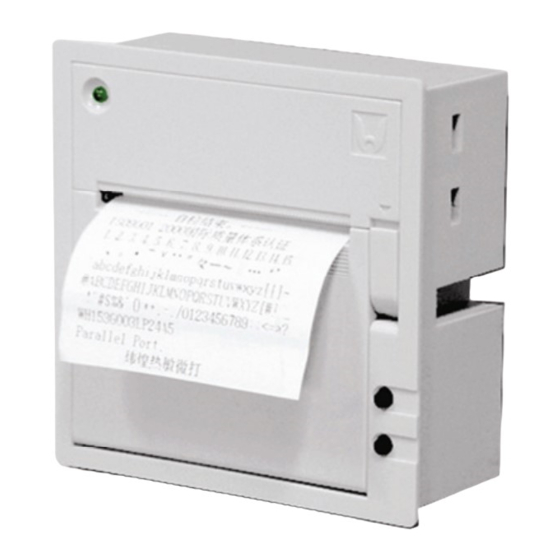

- Page 2 快速安装手册 ●打印机各部件一览 Printer Parts Names 1.状态指示灯 Status Indicator 6.纸仓 Paper Case 2.出纸口 Outlet 7.纸仓开关 Lock 3.SEL 键 SEL Button 8.电源接口 Power Connector 4.LF 键 LF Button 9.数据接口 Interface Connector 5.热敏打印头 Printer head 10.固定架 Fastener 按钮开关的操作及指示灯 电源指示灯常亮为正常状态，状态指示灯闪烁为缺纸。 正常上电后，按 LF 键走纸。按任意键上电，根据不同提示进行打印机设置。 自检测方式...
- Page 3 快速安装手册 ●尺寸 Size WH-A6 型尺寸 Product Size: 外形尺寸：Outline Dimension： 85mm×85mm×50/37mm 开口尺寸：Installation Dimension：80mm（W）×80mm（H） 嵌入深度：Inlaid Deepness： 48/35mm http://www.whkj.com.cn 010‐51655555 ...
- Page 4 快速安装手册 ●安装 Installation 安装方法： 请把打印机嵌入部分插入仪器或设备面板的安装孔内,并把塑料卡子从设备面板后面夹紧 打印机，螺钉从前面穿入并与塑料卡子中的螺母连接拧紧，左右对称各一套，安装方法相 同。 安装的面板厚度为 0.5～8mm 厚的金属板或塑料板；厚薄不会影响打印机安装的牢固性。 开口尺寸：80mm+0.5×80mm+0.5 Installation Method Insert the built-in part of printer into the installing orifice of instrument or equipment. As the picture show, fix the fastener onto the printer and tighten the screws in the front of panel.
- Page 5 Attention： Do not connect AC to the printer directly, operating voltage should be within ± 5% rated voltage. Power polarity must be correct, otherwise it will cause permanent damage to printer, brightek company do not assume maintenance compulsory upon this. ...
- Page 6 快速安装手册 ●装纸 Paper Roll 安装步骤： 1．如图 1 所示，箭头位置为可扣出的旋转扳手，轻轻扣出旋转扳手。 2．继续旋转扳手，使打印头走纸轴跳出打印头，这时打印头走纸轴与打印头分离，轻轻 拉开纸仓盖。 3．把打印纸装入，并拉出一截（超出一点撕纸牙齿） ，注意把纸放整齐，同时注意纸的方 向如图 3 所示，有药液一面（光滑面）向上。 4．合上纸仓盖，打印头走纸轴压齐打印纸后稍用力把打印头走纸轴压回打印头，并把旋 转扳手推入复位。接通打印机的电源，按 SEL 键使 SEL 指示灯灭，然后再按 LF 键使机 头转动，这时看一下纸是否走歪，再按一下 SEL 键，或关上电源。 Replacing the Paper Roll 1. Unsheathe the circumrotated wrench from the position the arrow point to as shown in Fig.1 and circumgyrate it until the paper cover opened as shown in Fig 2.
- Page 7 快速安装手册 ●清洁 Cleaning 清洁保养： 热敏打印机使用久了以后，热敏条与滚轴上会留下一些污垢，如果不及时清理会影响到打 印机的使用与寿命。我们建议您不定期做好清理。 纸仓盖打开后，用棉棒沾少许酒精，轻轻擦拭打印机热敏头，及纸仓上的滚轴。 Printer Cleaning If the interior of the printer is dusty, print quality can decline. So please clean the printer regularly. Open the cover of printer, then Wipe the print head with a cleaning pen and Use a cloth moistened with an alcohol solution to clean the paper sensor and the platen roller.
- Page 8 ●产品规格一览表 Product Specification 项目 ITEMS 规格 SPECIFICATION 打印方式 Printing method 行式热敏打印 Direct thermal line printing 纸宽 Paper width 57mm 打印宽度 Print width 48mm 分辨率 resolution ration 8 dots/mm (384 dots/line) 打印头寿命 life of printing head 6,000,000 character lines 打印速度 Printing speed 30mm/sec(when the utilization rate is 25%) 字符大小...
