P06
QUICK INSTALL
快速安装
北京炜煌科技发展有限公司
Beijing Bright Technology Development Co.,Ltd

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the P06 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Brightek P06

  • Page 1 QUICK INSTALL 快速安装 北京炜煌科技发展有限公司 Beijing Bright Technology Development Co.,Ltd...

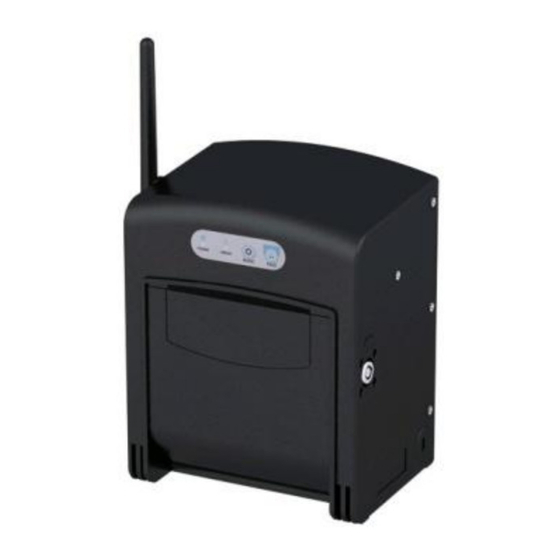

  • Page 2 快速安装手册 ●打印机各部件一览 Printer Parts Names 1.SET 设置 SET Button 6.天线 Aerial 2.LF 键 LF Button 7.壁挂 Wall-mounted parts 3.纸仓盖 Paper Case Cover 8.备用接 Reserve Connector Lock 9.电源接口 Power Connector 4.锁 5.钥匙 Key 10.电源开关 Power Switch 按钮开关的操作及指示灯 打印机上电后指示灯保持常亮状态,打印机缺纸时指示灯闪,不能接受数据。 正常上电后,LF 键为走纸键,SET 键为查询黑标位置。 自检测方式...
  • Page 3 快速安装手册 ●尺寸 Size WH-P06 型尺寸 Product Size: 外型尺寸 Outline Dimension: 137mm X168.8 mm X 225.9mm http://www.whkj.com.cn 010-51655555...
  • Page 4 快速安装手册 ●安装 Installation 安装方法: P06 打印机安装方式有两种: 1、可直接放置在水平桌面上使用。 2、壁挂使用,把配带的壁挂支架固定墙壁上,然后将打印机后背对准壁挂 支架,由上向下挂在壁挂支架上。注意需把打印机挂到位,防止打印机晃动 掉落。 Installation Method: Method 1: Use on the table. Method 2: Fix the wall-mounted parts on the wall, then hang the printer on the wall-mounted parts in place. http://www.whkj.com.cn 010-51655555...
  • Page 5 Attention: Do not connect AC to the printer directly, operating voltage should be within ± 5% rated voltage. Power polarity must be correct, otherwise it will cause permanent damage to printer, brightek company do not assume maintenance compulsory upon this.
  • Page 6 快速安装手册 ●装纸 Paper Roll 安装步骤: 1.如图 1 所示,按箭头位置将钥匙插入壳体侧面锁中,顺时针方向旋转钥匙打开纸仓门 ,见图 2。 2.将打印纸套在纸轴上,拆掉打印纸封口标签装入纸仓,并拉出一截(超出一点撕纸牙齿), 注意把纸放整齐,纸的方向为有药液一面(光滑面)向上,如图 3。 3.合上纸仓盖,打印头走纸轴压齐打印纸后稍用力把打印头走纸轴压回打印头。 4.接通打印机的电源,使机头转动,这时看一下纸是否走歪,待机或关上电源。 Replacing the Paper Roll 1. Turn the key in the lock as shown in Fig 1, and open the paper cover. 2. Insert the paper into the printer, Pull out a small amount of paper. Notice the direction of the paper according to Fig.3.
  • Page 7 快速安装手册 ●清洁 Cleaning 清洁保养: 热敏打印机使用久了以后,热敏条与滚轴上会留下一些污垢,如果不及时清理会影响到打印机的使 用与寿命。我们建议您不定期做好清理。方法是打开纸舱盖,用棉棒沾少许酒精,轻轻擦拭打印机热 敏头,及纸仓上的滚轴。 Printer Cleaning If the interior of the printer is dusty, print quality can decline. So please clean the printer regularly. Open the cover of printer, then wipe the printer head with a cleaning pen and use a cloth moistened with an alcohol to solution to clean the paper sensor and the platen roller.
  • Page 8 ●产品维护手册 一、打印机故障分析及排除 故障现象 可能原因 处理措施 检查打印纸方向是否装反,有药液一面(光滑面)朝 打印内容空白 打印纸装反 向纸仓内 数据线没插好 检查数据连接线是否有松动或连接是否良好 打印内容乱码 或不打印接口 串口配置参数 串口机型:检查串口配置参数(波特率、数据位、停 数据 不对 止位、校验位和流控制)是否与上位机匹配 打印内容颜色 比较浅或打印 电源电压低 检测打印机供电电源功率是否正常 一半 打印内容缺列 机头加热板有 关闭打印机电源,打开纸仓盖检查机头加热板上是否 或部分内容模 异物 有异物或划伤,如有异物,用医用棉签蘸无水酒精清 糊 洗;划伤请返回厂家检修 没纸状态下, 测纸传感器有 关闭打印机电源,检查机头测纸传感器表面是否有异 机头还一直转 异物 物,如有异物,用医用棉签蘸无水酒精清洗 动 注:打印机内的电子元件不能随意拆卸或代换,如出现故障现象按照以上方法无法修复,请拨 打售后技术支持电话:400-666-6868 二、打印机使用注意事项和日常保养...
