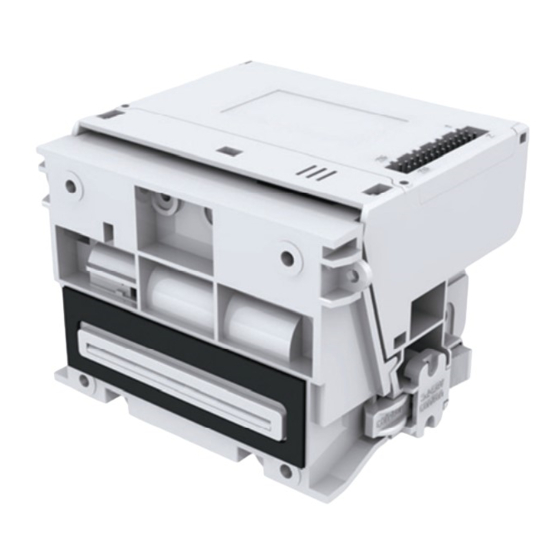

U02/U03




QUICK INSTALL

快速安装









北京炜煌科技发展有限公司
Beijing Bright Technology Development Co.,Ltd

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the U02 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Brightek U02

  • Page 1         U02/U03         QUICK INSTALL   快速安装               北京炜煌科技发展有限公司 Beijing Bright Technology Development Co.,Ltd  ...
  • Page 2 快速安装手册  ●打印机各部件一览 Printer Parts Names   1.密封圈 Seal Ring 6.锯齿 Sawtooth 11.纸卷 Paper Roll 16.LF 键 LF Button 2.切刀单元 Cutting Unit 7.锁扣 Lock 12.纸轴 Paper Roller 17.电源接口 Power Connector 3.滑轴 Sliding Axis 8.纸将尽调节 NPE Adjust 13.数据接口 Interface Connector 18.地线 Grounding 4.滚轴...
  • Page 3 快速安装手册  ●尺寸 Size     WH-U02 U03 型尺寸 Product Size: 外型尺寸 Outline Dimension: (U02)104.3mmX88.4mmX76.3mm (U03)126.4mmX88.4mmX76.3mm 安装尺寸 Mounting Dimension: 46.5 17.2 96.3 92.1 92.1 68.6 39.3 118.4 http://www.whkj.com.cn      010‐51655555 ...
  • Page 4 快速安装手册  ●安装 Installation   金 属 外 壳 塑 料 外 壳 φ50    φ80  安装方法: 安装方法有两种:一种是安装在金属机箱上,机上有根据尺寸预埋 4 个螺丝,安装时 把切纸单元对准出纸口并套在预埋螺丝上,用配套螺母固定即可;另一种是固定在塑料机 箱上,塑料机柜上根据尺寸设计 6 个固定自拱螺柱,安装时把切纸单元对准出纸口和 6 个 螺柱,用配套的自拱螺丝固定即可。 Installation Method Method 1: When mounted on a metal plate, fix the cutting unit onto the embedded four screws of the metal plate, then tighten the nut.
  • Page 5 Do not connect AC to the printer directly, operating voltage should be within ± 5% rated voltage. Power polarity must be correct, otherwise it will cause permanent damage to printer, brightek company do not assume maintenance compulsory upon this.  ...
  • Page 6 快速安装手册  ●装纸 Paper Roll   安装步骤: 1.如图 1 箭头方向所示,按压两侧锁扣,并将打印单元取下 2.将纸轴装入纸卷,然后装入打印机纸仓内,将纸轴两边固定在卡槽内(如图 3),同时注意 纸的方向有药液的一面(光滑面)向下(如图 2) 。 3.把打印纸装入后并拉出一截,将纸插入入纸口内,注意把纸放整齐。 4.开机,按下 LF 键使机头转动,如果纸走歪,再按下 LF 键。 5.把打印单元推入复位。 Replacing the Paper Roll 1. As the Fig.1 show, champ the lock both sides with fingers, and draw out the printer unit 2.
  • Page 7 快速安装手册  ●清洁 Cleaning   清洁保养: 热敏打印机使用久了以后,热敏条与滚轴上会留下一些污垢,如果不及时清理会影响到打 印机的使用与寿命。我们建议您不定期做好清理。方法是打开纸舱盖,用棉棒沾少许酒精, 轻轻擦拭打印机热敏头,及纸仓上的滚轴。 Printer Cleaning If the interior of the printer is dusty, print quality can decline. So please clean the printer regularly. Open the cover of printer, then wipe the printer head with a cleaning pen and use a cloth moistened with an alcohol to solution to clean the paper sensor and the platen roller.
  • Page 8   ●产品规格一览表 Product Specification 项目 ITEMS 规格 SPECIFICATION 打印方式 Printing method 行式热敏打印 Direct thermal line printing 纸宽 Paper width 57mm/80mm 打印宽度 Print width 48mm/72mm 分辨率 resolution ration 8 dots/mm(384 dots/line / 576 dots/line) 打印头寿命 life of printing head 6,000,000 character lines 打印速度...
