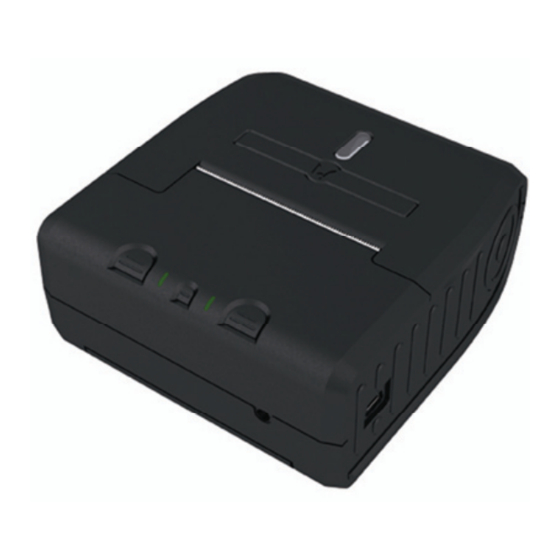

M06




QUICK INSTALL

快速安装









北京炜煌科技发展有限公司
Beijing Bright Technology Development Co.,Ltd

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the M06 and is the answer not in the manual?

Questions and answers

Summary of Contents for Brightek M06

  • Page 1                 QUICK INSTALL   快速安装               北京炜煌科技发展有限公司 Beijing Bright Technology Development Co.,Ltd  ...
  • Page 2: Operation Specification

    快速安装手册  ●打印机各部件一览 Printer Parts Names   1.纸仓盖 Paper Case Cover 6.电源开关 Power Button 11.状态指示灯 Status Indicator 2.打印纸 Paper Roll 7.充电电源接口 Power Connector 12.SEL 键 SEL Button 3.色带 Ribbon 8.电池盖 Battery Cover 4.电源指示灯 Power Indicator 9.电池 Battery 5.红外接口 IR Port 10.LF 键 LF Button  ...
  • Page 3 快速安装手册    ●尺寸 Size     WH-M06 型尺寸 Product Size: 外形尺寸 Outline Dimension: 115.5mm×100mm×46mm http://www.whkj.com.cn      010‐51655555 ...
  • Page 4: Installation Method

    快速安装手册  ●安装 Installation   安装方法:   如图推开电池盖,将电池下端两个卡位卡入打印机内,并用力将另一端扣入,电池盖推回 即可。 Installation Method As the picture show, push the battery cover open, and put the battery into the printer rightly, then push the battery cover back.  http://www.whkj.com.cn      010‐51655555 ...
  • Page 5 USB and serial port connector please refer to the printer manual on company website. Bluetooth connect: 1.When the blue tooth device connects well with printer ”Brightek Thermal Printer” can be found. 2. The password: 0000. Power Connection In the printer working process, the remaining capacity is greater than 50%, three-color power indicator, green light keep bright;...
  • Page 6: Replacing The Paper Roll

    快速安装手册  ●装纸 Paper Roll   安装步骤: 1.如图 2 所示沿着箭头方向翻开活动纸仓盖。 2.把打印纸装入,并拉出一截,放到进纸口。 3.开机。按下 LF 键使机头转动,如果纸走歪,重新进纸,再按下 LF 键。 4.合上纸仓盖。 Replacing the Paper Roll 1. As the Fig.1 show, open the paper case cover follow the arrow. 2. Insert the paper roller into the printer, and insert the paper to the feeder. 3.
  • Page 7: Printer Cleaning

    快速安装手册  ●色带 Ribbon   色带更换: 1.翻开纸仓盖. 2.从打印机头上轻轻取下旧色带盒。注意:请先抬起色带盒的左端,然后再抬起色带盒的右 端,取下色带盒。 3.换新的色带盒。首先将色带盒的右端轻轻放在机头右端的齿轮轴上,左端稍微抬起,不要 放下。 如色带盒右端未落到底,请按住色带盒上的旋钮,顺时针方向稍微转动一下,直到色 带盒的右端落到底后再放下色带盒的左端。 4.合上纸仓盖即可。 Printer Cleaning 1. Open the paper cover of printer. 2. Take down the old ribbon cassette, notice: lift up the left end of the ribbon cassette, then lift up the right end, and then take down the ribbon cassette. 3.
  • Page 8   ●产品规格一览表 Product Specification 项目 ITEMS 规格 SPECIFICATION 打印方式 Printing method 针式打印 Dot matrix printing method 纸宽 Paper width 57mm 打印宽度 Print width 48mm 分辨率 resolution ration 240 dots/line , 5 dots/mm 每行字符数 Character per line 打印速度 Printing speed 5.5mm/s 充电器...
