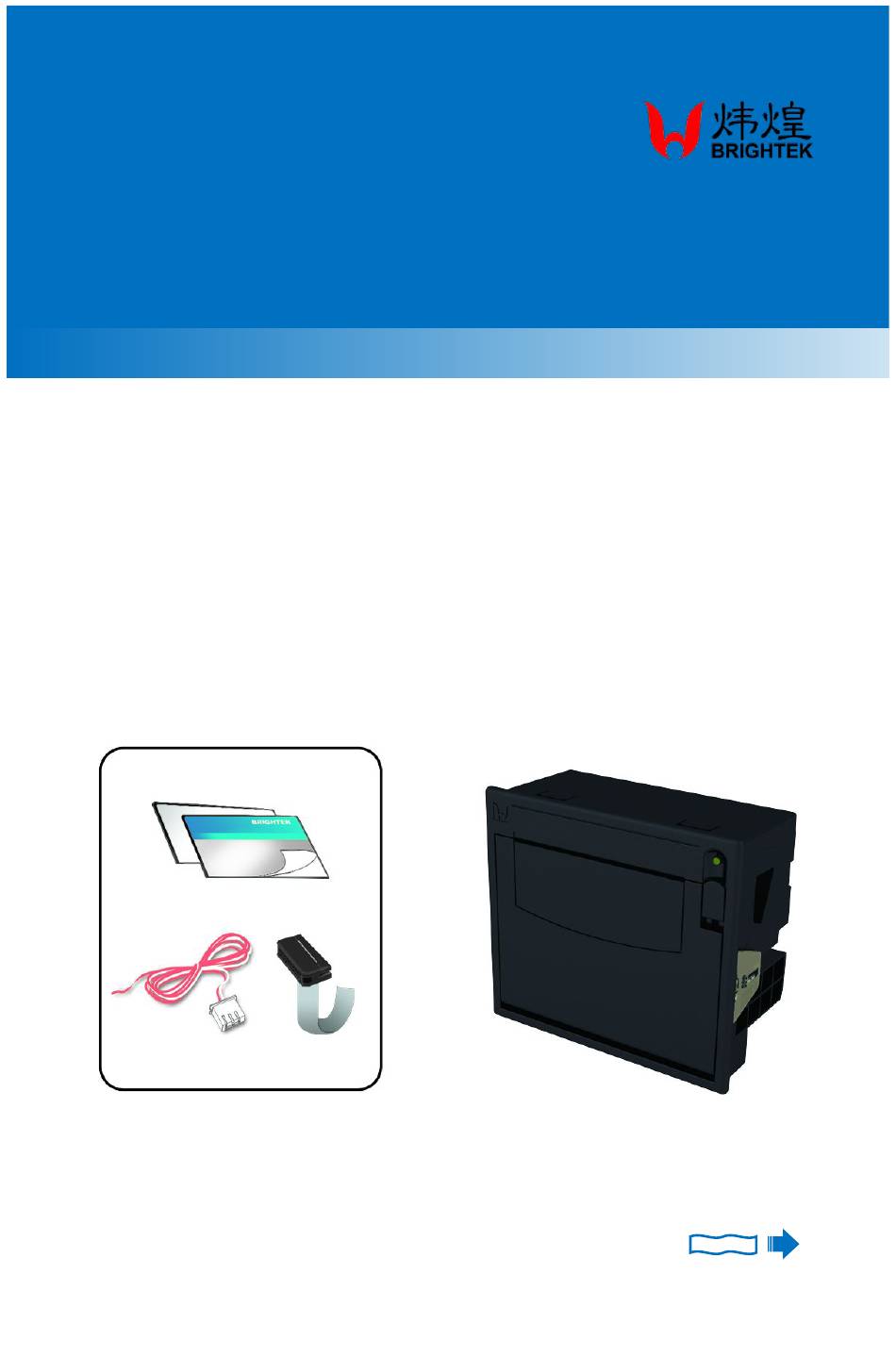

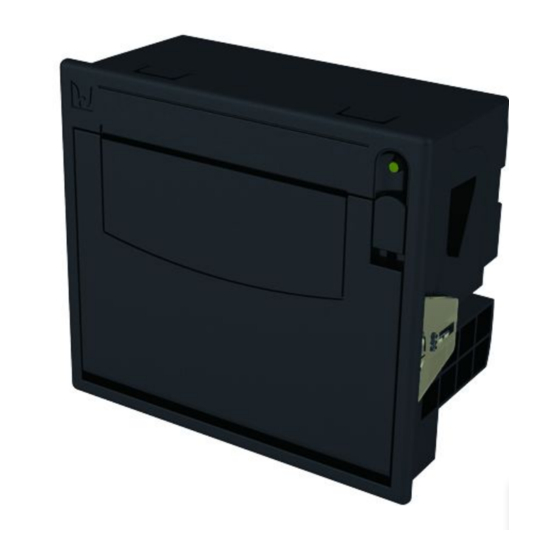

- Page 1 QUICK INSTALL 快速安装 北京炜煌科技发展有限公司 Beijing Bright Technology Development Co.,Ltd...
- Page 2 快速安装手册 ●打印机各部件一览 Printer Parts Names 1.LF 键/电源指示灯 LF Button/ Power Light 10.SET 键 SET Button 6.滚轴/切刀 Platen 2.打印头 Printer head 11.USB 接口 USB Connector Roller/Cutter 3.纸仓 Paper Case 7.纸仓开关 Lock 12.数据接口 Interface Connector 4.紧固件 Fastener 8.接地 Ground 13.固定架 Holder 5.纸仓盖 Paper Case Cover 9.电源接口...
-
Page 3: Operation Specification
快速安装手册 按钮开关的操作及指示灯 电源指示灯常亮为正常状态，状态指示灯闪烁为缺纸。 正常上电后，按 LF 键走纸。按任意键上电，根据不同提示进行打印机设置。 自检测方式 打印机上电之后，按住 LF 键不放，同时给打印机上电，即打出自检条。 Operation Specification After turning on the printer, the indicator light will keep on. When the light flash, it shows that the paper is lacking, and the printer can not receive data. After turning on the printer, press the LF button, the printer will feed paper, and the SET button is no used. - Page 4 快速安装手册 WH-C03 型尺寸 Product Size: 外形尺寸：Outline Dimension： 123mm×109mm×59.7mm 开口尺寸：Installation Dimension： 117mm（W）×103mm（H） 嵌入深度：Inlaid Deepness： 56.7mm ●安装 Installation http://www.whkj.com.cn 010-51655555...
-
Page 5: Installation Method
快速安装手册 安装方法： 请把打印机嵌入部分插入仪器或设备面板的安装孔内,并把塑料卡子从设备面板后面夹紧 打印机，螺钉从前面穿入并与塑料卡子中的螺母连接拧紧，左右对称各一套，安装方法相 同。 所安装的面板厚度为 0.5～6mm 厚的金属板或塑料板;厚薄不会影响打印机安装的牢固性。 开口尺寸：117mm+0.5×103mm+0.5 Installation Method Insert the built-in part of printer into the installing orifice of instrument or equipment. As the picture show, fix the fastener onto the printer and tighten the screws in front of panel. The faceplate that will be fixed could be metal plate or plastic plate with thickness from 0.5mm to 6mm. - Page 6 Attention： Do not connect AC to the printer directly, operating voltage should be within ± 5% rated voltage. Power polarity must be correct, otherwise it will cause permanent damage to printer, brightek company do not assume maintenance compulsory upon this.
-
Page 7: Replacing The Paper Roll
快速安装手册 安装步骤： 1.如图 1 箭头位置按下开关按钮，这时打印头走纸轴、切刀与打印头分离，轻轻拉开纸仓 盖，使纸仓盖彻底打开。 2.装入打印纸，并拉出一截(超出一点撕纸牙齿)，把纸放整齐，同时注意纸的方向，有药 液一面(光滑面)向上(如图 3)。 3.合上纸仓盖，打印头走纸轴压齐打印纸后稍用力把打印头走纸轴压回打印头(如图 4) 4.接通打印机的电源，按键使机头转动，这时看一下纸是否走歪，待机，或关上电源。 Replacing the Paper Roll 1. Press the button which arrow point to as shown in Fig 1, and undrawn the paper cover. 2. Insert the paper into the printer, Pull out a small amount of paper. Notice the direction of the paper according to Fig.3. -
Page 8: Printer Cleaning
快速安装手册 清洁保养： 热敏打印机使用久了以后，热敏条与滚轴上会留下一些污垢，如果不及时清理会影响到打 印机的使用与寿命。我们建议您不定期做好清理。 纸舱盖打开后，用棉棒沾少许酒精，轻轻擦拭打印机热敏头，及纸仓上的滚轴。 Printer Cleaning If the interior of the printer is dusty, print quality can decline. So please clean the printer regularly. Open the cover of printer, then Wipe the print head with a cleaning pen and Use a cloth moistened with an alcohol solution to clean the paper sensor and the platen roller. - Page 9 ●产品规格一览表 Product Specification 项目 ITEMS 规格 SPECIFICATION 打印方式 Printing method Thermal printing method 纸宽 Paper width 80mm 打印宽度 Print width 72mm 分辨率 resolution ration 576dots/line 打印头寿命 life of printing head 6,000,000 character lines 打印速度 Printing speed 65mm/sec(when the utilization rate is 25%) 字符大小...
