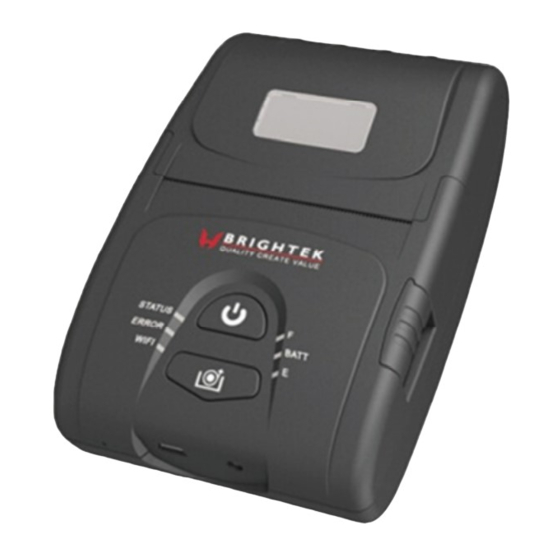

M10




QUICK INSTALL

快速安装









北京炜煌科技发展有限公司
Beijing Bright Technology Development Co.,Ltd

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the M10 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Brightek M10

  • Page 1                 QUICK INSTALL   快速安装               北京炜煌科技发展有限公司 Beijing Bright Technology Development Co.,Ltd  ...
  • Page 2 快速安装手册  ●打印机各部件一览 Printer Parts Names   1.滚轴 Platen Roller 5.电源开关 Power Button 9. USB 接口 Interface Connector 2.纸仓盖 Paper Case Cover 6.指示灯 Indicator Light 10.充电电源接口 Power Connector 3.纸卷 Paper Roll 7.LF 键 LF Button 11.电池 Battery 4.纸仓开关 Lock 8.WIFI 复位键 Reset Button 12.背夹...
  • Page 3 快速安装手册  ●尺寸 Size     WH-M10 型尺寸 Product Size: 外型尺寸 Outline Dimension: 134mm×86mm×56.7mm 打印纸规格 Paper Size: 纸类型 厚度 宽度 纸卷直径 Paper Type Thickness width Diameter 热敏纸 0.06-0.08mm 57±0.5mm Max 50mm Thermal Paper http://www.whkj.com.cn      010‐51655555 ...
  • Page 4 快速安装手册  ●安装 Installation   安装方法: 1、装电池,将电池下端两个卡位插入打印机内,并用力将另一端扣入即可。 见上图所示。 2、装挂钩,先把两端的固定支架插入挂钩两端孔内,再把支架装到机壳对 应的孔内用 M2.5*8 螺丝固定,然后挂在腰带上,注意挂钩方向。见上图所 示。  Installation Method: Battery assembled:As shown in the picture, push the battery cover open, and put the battery into the printer rightly. Clip assembled:Plug fasteners into the clip, and Fix the assembled onto the printer, and then tighten the screws (M2.5*8).
  • Page 5 快速安装手册  ●清洁 CIeaning   清洁保养: 热敏打印机使用久了以后,热敏条与滚轴上会留下一些污垢,如果不及时清理会影响到打 印机的使用与寿命。我们建议您不定期做好清理。 纸仓盖打开后,用棉棒沾少许酒精,轻轻擦拭打印机热敏头,及纸仓上的滚轴。 Printer Cleaning If the interior of the printer is dusty, print quality can decline. So please clean the printer regularly. Open the cover of printer, then Wipe the print head with a cleaning pen and Use a cloth moistened with an alcohol solution to clean the paper sensor and the platen roller.
  • Page 6 快速安装手册  ●装纸 Paper Roll   安装步骤: 1.如图 2 所示沿着箭头方向翻开活动纸仓盖。 2.把打印纸装入,并拉出一截,放到进纸口,合上纸仓盖。 3.开机。按下 LF 键使机头转动,如果纸走歪,重新进纸,再按下 LF 键。 Replacing the Paper Roll 1. As shown in Fig 1, press the lock following the arrow to open the paper case cover. 2. Insert the paper roller into the printer, and then pull out a small amount of paper.
  • Page 7 Attention: Do not connect AC to the printer directly, operating voltage should be within ± 5% rated voltage. Power polarity must be correct, otherwise it will cause permanent damage to printer, Brightek company do not assume maintenance compulsory upon this.
  • Page 8   ●产品维护手册 一、打印机故障分析及排除 故障现象 可能原因 处理措施 检查打印纸方向是否装反,有药液一面(光滑面)朝 打印内容空白 打印纸装反 向纸仓内 数据线没插好 检查数据连接线是否有松动或连接是否良好 打印内容乱码 或不打印接口 串口配置参数 串口机型:检查串口配置参数(波特率、数据位、停 数据 不对 止位、校验位和流控制)是否与上位机匹配 打印内容颜色 比较浅或打印 电源电压低 检测打印机供电电源功率是否正常 一半 打印内容缺列 机头加热板有 关闭打印机电源,打开纸仓盖检查机头加热板上是否 或部分内容模 异物 有异物或划伤,如有异物,用医用棉签蘸无水酒精清 糊 洗;划伤请返回厂家检修 没纸状态下, 测纸传感器有 关闭打印机电源,检查机头测纸传感器表面是否有异 机头还一直转 异物 物,如有异物,用医用棉签蘸无水酒精清洗 动 注:打印机内的电子元件不能随意拆卸或代换,如出现故障现象按照以上方法无法修复,请拨 打售后技术支持电话:400-666-6868 二、打印机使用注意事项和日常保养...
