E55




QUICK INSTALL

快速安装






北京炜煌科技发展有限公司
Beijing Bright Technology Development Co.,Ltd


Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the E55 and is the answer not in the manual?

Questions and answers

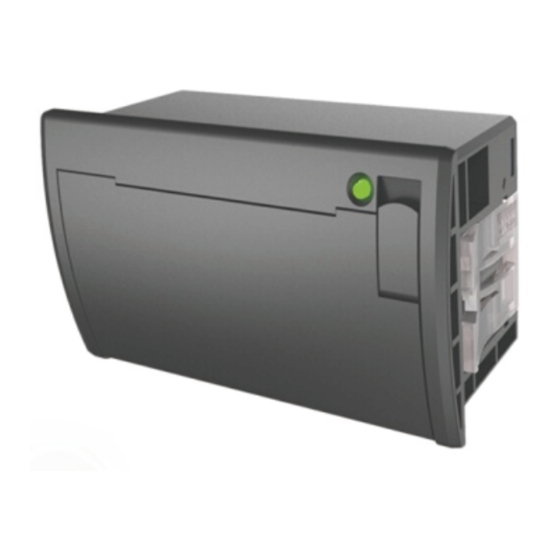

Summary of Contents for Brightek E55

  • Page 1                 QUICK INSTALL   快速安装           北京炜煌科技发展有限公司 Beijing Bright Technology Development Co.,Ltd  ...
  • Page 2 快速安装手册  ●打印机各部件一览 Printer Parts Names   1. 指示灯/LF 键 Indicator Light/LF Button 5. 滚轴 Platen Roller USB Connector 9.USB 接口 2. 顶轴 Axis 6. SET 键 SET Button 10. 固定架 Fastener 3. 纸仓盖 Paper Case Cover 电源接口 Power Connector 纸卷 Paper Roll Interface Connector 8.
  • Page 3 快速安装手册  ●尺寸 Size     WH-E55 型尺寸 Product Size: 外形尺寸:Outline Dimension: 109mm×63mm×45mm 开口尺寸:Installation Dimension: 102+0.5mm(W)×56.2+0.5mm(H) 嵌入深度:Inlaid Deepness: 45mm 打印纸规格 Paper Size: 纸类型 厚度 宽度 纸卷直径 Paper Type Thickness width Diameter 热敏纸 0.06-0.08mm 57±0.5mm Max 30mm Thermal Paper 注:请在开口尺寸要求的范围内开口,如开口尺寸过大会造成打印机与面板 固定不牢固。 Note: please open the hole within the mounting dimension, opening dimension beyond this range will cause insecure fixation between the printer and the panel.
  • Page 4 快速安装手册  ●安装 Installation   安装方法:  1、将打印机嵌入部分直接插入仪器或设备安装孔内,见图三所示。 2、再按照图四所示,打开纸仓盖顺时针方向拧固定架螺钉,直到固定架与面板卡紧为止, 两侧操作方法相同(注:固定架有弹性,拧螺钉时要控制好力度) 。 所安装的面板厚度为 1.0~9.5mm 厚的金属板或塑料板。 Installation Method: 1. Insert the built-in part of printer into the installing orifice of instrument or equipment as in Fig.3. 2. As show in the picture 4, open the paper case cover, fix the fastener onto the printer and tighten the screws in the front of panel.
  • Page 5 快速安装手册  ●拆机 Dis-assembly   拆机方法: 1、打开纸仓盖,用改锥逆时针方向拧两侧固定架螺丝 3~5 圈,见图二所示。 2、再按照图三所示,用一字改锥撬固定架,固定架脱离面板后再往外抽打印机,两侧操 作方法相同。 Dis-assembly Method: 1 Open the paper case cover, turn the screw clockwise round and round.as in Fig.2. 2 Pry the fastener with slotted screwdriver as in Fig.3, and draw out the printer according Fig.4.
  • Page 6 快速安装手册  ●装纸 Paper Roll   安装步骤: 1.如图 1 所示,箭头位置轻轻扣出旋转扳手,扣出后如图 2。 2.继续旋转扳手,这时打印头走纸轴与打印头分离,打开纸仓盖。 3.把打印纸装入,并拉出一截(超出一点撕纸牙齿),注意把纸放整齐,纸的方向为有药液一 面(光滑面)向上,如图 3。 4.合上纸仓盖,打印头走纸轴压齐打印纸后稍用力把打印头走纸轴压回打印头,并把旋转 扳手推入复位,如图 4。   5.接通打印机的电源,使机头转动,这时看一下纸是否走歪,待机或关上电源。   Replacing the Paper Roll 1. Unsheathe the circumrotated wrench from the position the arrow point to as shown in Fig.1 and circumgyrate it until the paper cover opened as shown in Fig 2. 2.
  • Page 7 Attention: Do not connect AC to the printer directly, operating voltage should be within ± 5% rated voltage. Power polarity must be correct, otherwise it will cause permanent damage to printer, brightek company do not assume maintenance compulsory upon this.
  • Page 8   ●产品维护手册 一、打印机故障分析及排除 故障现象 可能原因 处理措施 检查打印纸方向是否装反,有药液一面(光滑面)朝 打印内容空白 打印纸装反 向纸仓内 数据线没插好 检查数据连接线是否有松动或连接是否良好 打印内容乱码 或不打印接口 串口配置参数 串口机型:检查串口配置参数(波特率、数据位、停 数据 不对 止位、校验位和流控制)是否与上位机匹配 打印内容颜色 比较浅或打印 电源电压低 检测打印机供电电源功率是否正常 一半 打印内容缺列 机头加热板有 关闭打印机电源,打开纸仓盖检查机头加热板上是否 或部分内容模 异物 有异物或划伤,如有异物,用医用棉签蘸无水酒精清 糊 洗;划伤请返回厂家检修 没纸状态下, 测纸传感器有 关闭打印机电源,检查机头测纸传感器表面是否有异 机头还一直转 异物 物,如有异物,用医用棉签蘸无水酒精清洗 动 注:打印机内的电子元件不能随意拆卸或代换,如出现故障现象按照以上方法无法修复,请拨 打售后技术支持电话:400-666-6868 二、打印机使用注意事项和日常保养...
