- Page 1 Thermal Panel Printer User Operation Manual 2023.04.03 深圳炜煌打印机有限公司 Shenzhen Brightek Printer Co., Ltd.
- Page 2 Version Version Date Description V1.01 2023.04.03 Initial version Shenzhen Brightek Printer Co., Ltd. P. 2...
-
Page 3: Table Of Contents
CHAPTER 3 POWER AND COMMUNICATION ..........11 3.1 Power Interface ......................11 3.2 Cash Drawer Interface ....................12 3.3 Serial Interface ......................12 3.4 USB Interface ....................... 13 CHAPTER 4 APPENDIX ..................... 14 4.1 Contact Us ........................14 Shenzhen Brightek Printer Co., Ltd. P. 3... -
Page 4: Chapter 1 General Details
Life of Print Head 100 KM Power Input DC 24V, 3A Communication Interface Serial (RS232 / TTL / 485), USB Temperature Printer: -10~50 ℃ (14~122 ℉ ) Condition Humidity Printer: 10~90% RH (no condensing) Shenzhen Brightek Printer Co., Ltd. P. 4... -
Page 5: Printer Operating Instructions
2. In the state of the printer setting menu, short press the LF button to switch the printer setting items; long press the LF button to enter the setting item; Shenzhen Brightek Printer Co., Ltd. P. 5... - Page 6 3 times continuously, and hear the buzzer beep twice. The printer enters the module status of restoring the factory settings. After the restoration is completed, the printer will automatically shut down. Shenzhen Brightek Printer Co., Ltd. P. 6...
-
Page 7: Chapter 2 Installation

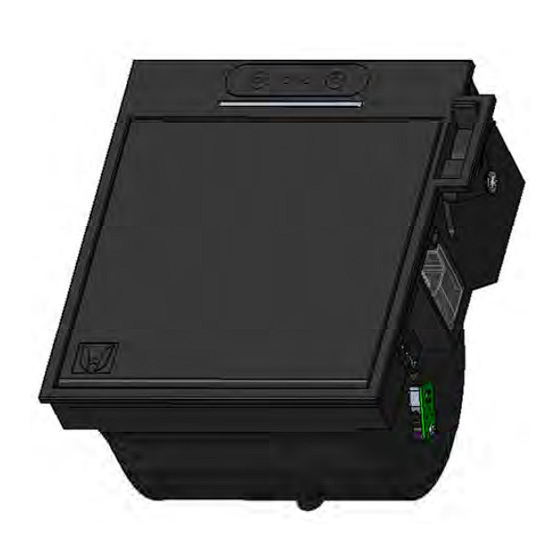

Chapter 2 Installation 2.1 Dimension and Parts 2.1.1 Printer Parts Shenzhen Brightek Printer Co., Ltd. P. 7... -
Page 8: Dimension
122+0.5mm X 128+0.5mm Inlaid Deepness: 84.7mm Note: Please follow the installation dimension for making the opening size. If the opening size is too large, the printer and the panel will not be firmly fixed. Shenzhen Brightek Printer Co., Ltd. P. 8... -
Page 9: Installaion
The operation method on both sides is the same. The thickness of the installed panel is 1.0~10.0mm thick, which can be metal plate or plastic plate. Shenzhen Brightek Printer Co., Ltd. P. 9... -
Page 10: Install The Paper Roll
5. Power on the printer, print the self-test slip (according to the self-test procedure described in 1.2.2), then check whether the paper is skewed. If Okay, turn off the printer or let it be standby for printing. Shenzhen Brightek Printer Co., Ltd. P. 10... -
Page 11: Chapter 3 Power And Communication
Chapter 3 Power and Communication 3.1 Power Interface The C15 printer is powered by a DC 24V, 3A power supply. Its schematic diagram is shown in below figure. 3.1.1 Power Interface (1) Pin definition as shown in the table: Pin No. -
Page 12: Cash Drawer Interface
When the signal is High: the printer is busy and not able to receive data 232-BUSY When the signal is Low: the printer is ready to receive data 232-TXD Serial Data Output 232-RXD Serial Data Input Ground Shenzhen Brightek Printer Co., Ltd. P. 12... -
Page 13: Usb Interface
3.4 USB Interface The USB interface of the printer is 4-pin USB2.0. Its schematic diagram is shown in below figure. Pin definition as shown in the table: Pin No. Signal Description Power Netj2_2 Netj2_3 Ground Shenzhen Brightek Printer Co., Ltd. P. 13... -
Page 14: Chapter 4 Appendix
1/F, Building 6, Lianchuang Science and Technology Park, No.21 Bulan Road, Nanwan Street, Longguan District, Shenzhen, China. (2) Dongguan Factory: 8/F, Building A2, Songhu Zhigu, Renju Road, Shangdi Village, Liabu, Dongguan, Guangdong, China. Shenzhen Brightek Printer Co., Ltd. P. 14...
