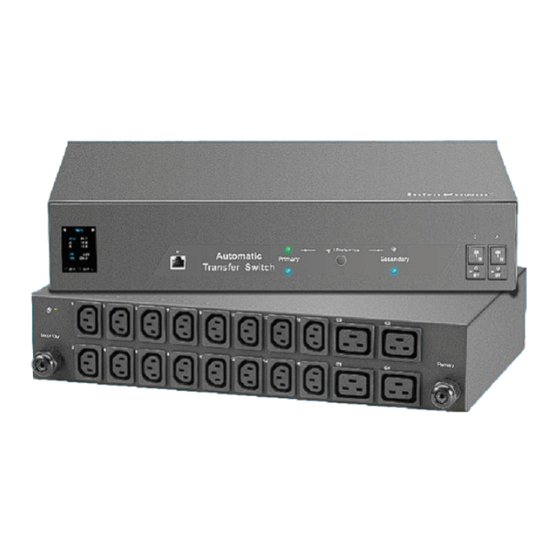

Austin Hughes InfraPower ATS-03-S User Manual
  1. Manuals
  2. Brands
  3. Austin Hughes Manuals
  4. Switch
  5. InfraPower ATS-03-S
  6. User manual

Austin Hughes InfraPower ATS-03-S User Manual

Webui
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Inspired by Your Data Center
User Manual
ATS-03-S WEBUI
Designed and manufactured by Austin Hughes
UM-IP-ATS-03-S-Q223V1
www.austin-hughes.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the InfraPower ATS-03-S and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Austin Hughes InfraPower ATS-03-S

Summary of Contents for Austin Hughes InfraPower ATS-03-S

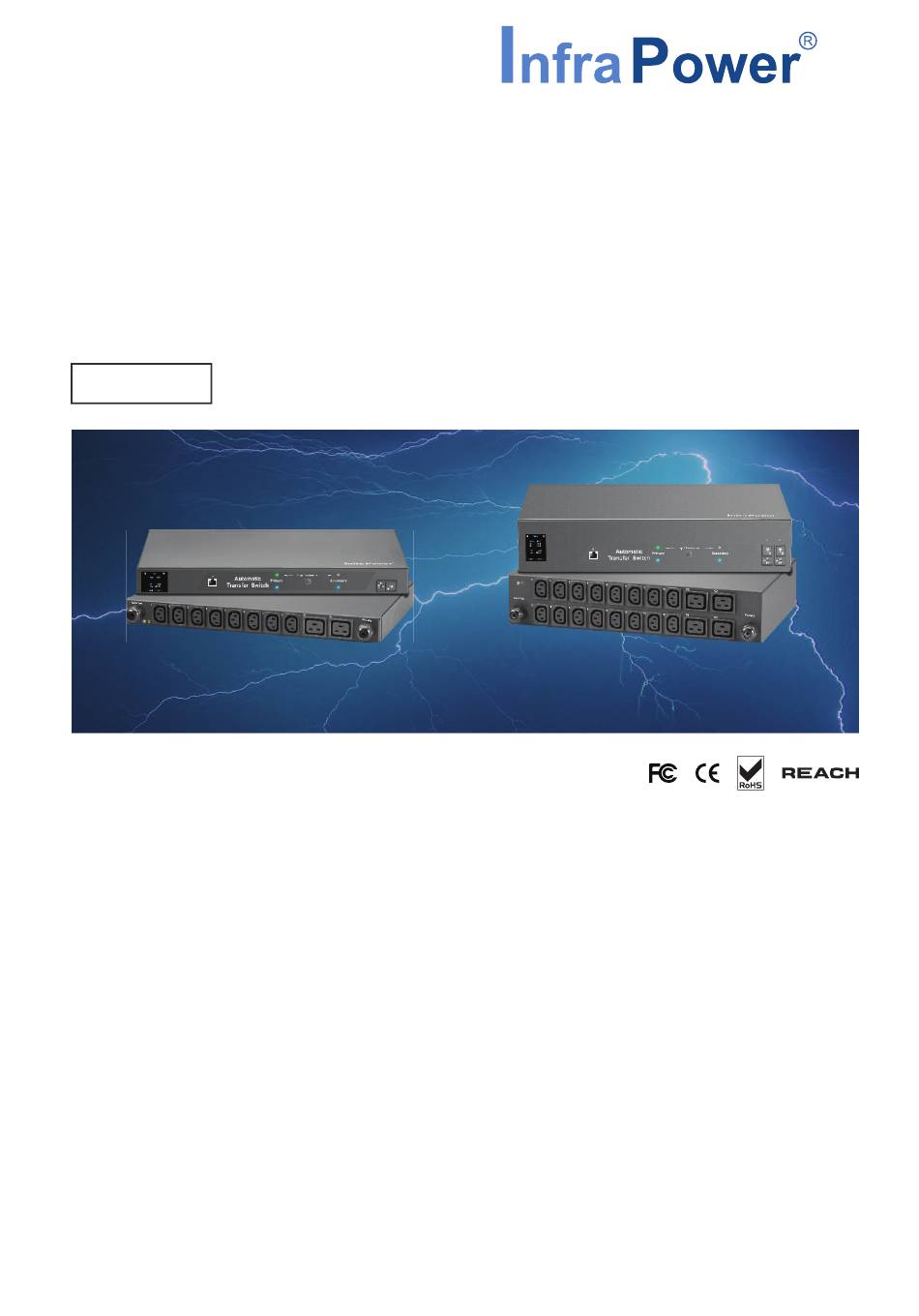

  • Page 1 Inspired by Your Data Center User Manual ATS-03-S WEBUI Designed and manufactured by Austin Hughes UM-IP-ATS-03-S-Q223V1 www.austin-hughes.com...
  • Page 2 Legal Information First English printing, May 2023 Information in this document has been carefully checked for accuracy; however, no guarantee is given to the correctness of the contents. The information in this document is subject to change without notice. We are not liable for any injury or loss that results from the use of this equipment.

  • Page 3: Table Of Contents

    Contents < 1.1 > ATS Key Features < 1.2 > How to switch power input < 1.3 > Meter Reading & Setting < 1.4 > Hardware Specifi cation < 1.5 > ATS GUI ATS-03-S Key Features < 1.6 > IP Confi guration <...

  • Page 4: Ats Key Features

    < 1.1 > ATS Key Features Secondary Primary 2.0" color LCD ( feature w/ Touchscreen ) IP Port Input Preference Switch Power LED - primary input Power LED - secondary input Circuit Breaker Primary Input attached with 3M cord & inlet plug Secondard Input attached with 3M cord &...
  • Page 5 < 1.2 > How to switch power input 1. By Manual - Press the local input switch button on the front panel - Set the input preference via WEBUI / SNMP remotely 2. By Auto Switch automatically when the preferred input source is powered off Once ATS current loading is over the rated input current, input switching is not allowed either by local or remote.
  • Page 6 < 1.3 > Meter Reading & Setting Touch Button Reading ( Single & Dual Circuit ) • Amp, Voltage & Power Factor • kWh Energy Consumption • Active & Apparent Power • Temp. & Humidity Single Circuit Dual Circuit 1 - 3 4 - 7 1 - 4 5 - 8...
  • Page 7 < 1.3 > Meter Reading & Setting Setting Touchscreen Calibration If no any calibrate touch in 30 seconds, it will return to Touchscreen page Buzzer ON / OFF Default : ON Default : Screen < ON > Scan < OFF > OFF Screen - Screen OFF in 30 seconds - If want to turn on the screen just touch it...
  • Page 8 < 1.4 > Hardware Specifi cation 230V Nominal input voltage 200 ~ 230V Electrical Acceptable input voltage ±10% nominal Input frequency 50 / 60Hz Inlet plug & cord 2 x C14 / C20 / EN 60309 / BS1363 / CEE7 plug w/ 3M cord Outlet connectors C13 / C13+C19 / C19 / IEC309 / UK / Schuko / FR Local meter...
  • Page 9 < 1.4 > Hardware Specifi cation 208V Nominal input voltage 208V Electrical Acceptable input voltage ±10% nominal Input frequency 50 / 60Hz Inlet plug & cord 2 x L620 / L630 plug w/ 3M cord Outlet connectors C13 / C13+C19 / C19 / IEC309 Local meter 2.0"...
  • Page 10 < 1.4 > Hardware Specifi cation 110V Nominal input voltage 110V Electrical Acceptable input voltage ±10% nominal Input frequency 50 / 60Hz Inlet plug & cord 2 x 515 / L520 / L530 plug w/ 3M cord Outlet connectors NEMA 5-20R Local meter 2.0"...
  • Page 11 < 1.5 > ATS GUI ATS-03-S Key Features InfraPower Manager ATS-03-S is a FREE built-in GUI of each intelligent ATS which allows remotely monitoring over IP. InfraPower ATS-03-S Features IP Dongle Group Capacity ATS Number Concurrent User Input Source Selection...

  • Page 12: Ip Confi Guration

    < 1.6 > IP Confi guration The following steps show the static IP setting only. For DHCP setting, please refer to < 1.10 > DHCP Setting Step 1. Prepare a notebook computer to download the IP setup utilities from the link : http://www.austin-hughes.com/support/utilities/infrapower/IPdongleSetup.msi Step 2.

  • Page 13: Ats-03-S Gui

    < 1.7 > ATS-03-S GUI Each ATS provides a FREE built-in GUI, ATS-03-S, which allows user, via a web browser, to monitor the ATS status over a TCP / IP Ethernet network remotely. Each web browser window supports only one ATS. If you install more ATS, multi windows will be required. Please follow the steps below to login the ATS GUI ( ATS-03-S ).
  • Page 14 < 1.7 > ATS-03-S GUI In < Status >, - View the installed ATS status - View aggregate current & energy consumption of the ATS - Select the preferred “ Input Switch “ - Change “ Name “ & “ Location “ of ATS & Click “ Apply “ - Change “...
  • Page 15 < 1.7 > ATS-03-S GUI In < Outlet details >, - Change PDU outlet name - Change " Power up sequence delay " ( Outlet Switched PDU only ) - Change " Alarm amp. " , " Rising alert amp. " & " Low alert amp. " ( Outlet Measurement PDU only ) Click "...

  • Page 16: System

    < 1.8 > System In < System >, - Change the built-in IPD-03-S name & location - Change temperature unit displayed in GUI - Set “ Date & Time ” of the ATS ( by “ Manually ” or “ NTP server ” ). Default is “ Manually ” - Click “...

  • Page 17: Network

    < 1.9 > Network - Change the “ IPv4 address ”, “ IPv6 address ”, “ Subnet mask ” & “ Gateway ” ( For static IP setting only ) - Select “ ON ” in “ DHCP ” to enable DHCP setting. Default is OFF ( For DHCP setting, please refer to <...

  • Page 18: Dhcp Setting

    < 1.10 > DHCP Setting Step 1. Connect the Intelligent ATS to the computer ( Please refer to < 1.6 > IP Confi guration ) Step 2. Open Internet Explorer ( I.E. ), version 11.0 Step 3. Enter the confi gured ATS's IP address into the address bar ( Please refer to <...
  • Page 19 < 1.10 > DHCP Setting Step 7. Select “ Firmware “ from the left navigation pane Step 8. Record the “ Device MAC address ” Step 9. Assign an IP address to the Intelligent ATS from your DHCP server. UM-IP-ATS-03-S-Q223V1 P.16 www.austin-hughes.com...

  • Page 20: Login

    < 1.11 > Login In < Login >, you can login the ATS WEBUI by “ Local User ” or “ Domain/LDAP ” login. ( Default login : “ Local User ” ) Local User : - Change “ Login name ” OR “ Password ” - Re-enter password in “...
  • Page 21 < 1.11 > Login In “ Domain Users Setting ”, - Click “ Update domain data ” to update domain user list. - Assign access right ( No access / Allow / Deny ) to “ Domain Users ” and click “ Apply ” . - The Domain User assigned “...
  • Page 22 < 1.11 > Login Domain/LDAP : - Default LDAP Authentication is “ Disable “ - Enable “ LDAP Authentication ” only when you want to login the ATS WEBUI by LDAP server - Enter “ LDAP Server ”, - Select “ Protocol ”( LDAP / LDAPS ). Default is “ LDAP “ - Enter “...
  • Page 23 < 1.11 > Login In “ LDAP Access Setting ”, - Click “ Update domain data ” to update domain user list. - Assign access right ( No access / Allow / Deny ) to “ LDAP User ” and click “ Apply ” . - The LDAP User assigned “...

  • Page 24: Snmp Setup

    < 1.12 > SNMP Setup The intelligent ATS has SNMP ( v1/v2 or v3 ) function which is capable of integration of 3rd party DCIM to achieve centralized monitoring for power, cooling and environment factors across facilities and IT systems. ( I ).
  • Page 25 < 1.12 > SNMP Setup Step 6. The SNMP settings window appears as below : Step 7. Click “ Enable “ in “ SNMP agent “ to start the SNMP agent service Step 8. Select “ v1/v2 “ in “ SNMP version “ Step 9.
  • Page 26 < 1.12 > SNMP Setup The following steps summarize how to enable the ATS for SNMP v3 support. Step 1. Connect the ATS to a computer. ( Please refer to < 1.6 > IP confi guration ) Step 2. Open the Internet Explorer ( I.E. ) version 11.0 Step 3.
  • Page 27 < 1.12 > SNMP Setup Step 7. Click “ Enable “ in “ SNMP agent “ to start the SNMP agent service Step 8. Select “ v3 “ in “ SNMP version “ & the SNMP v3 settings window appears as below : Step 9.

  • Page 28: Notifi Cation

    < 1.13 > Notifi cation In < Notifi cation > , you can confi gure the alarm email server & max. 5 email recipients to receive alarm notifi cations from the IP dongle. Default is “ Disable ”. Step 1. “ Enable ” alarm email Step 2.

  • Page 29: Syslog

    < 1.14 > Syslog In < Syslog > , you can view the latest 2000 device and system log UM-IP-ATS-03-S-Q223V1 P.26 www.austin-hughes.com...

  • Page 30: Ats Firmware Upgrade

    < 1.15 > ATS Firmware Upgrade For function enhancement of the intelligent ATS WEBUI , please take the following steps to remotely update the ATS fi rmware : Step 1. Click the following link to go to the mangement software download page : http:/www.austin-hughes.com/downloads/IPDL/IPDfi...
  • Page 31 < 1.15 > ATS Firmware Upgrade Step 8. The fi rmware upgrade window appears as below : Step 9. Click “ Browse ” and select the fi rmware fi le ( xxx.enc ) from the specifi c path in the pop up window and Click “...

  • Page 32: Bulk Firmware Upgrade

    < 1.16 > Bulk Firmware Upgrade < Bulk Firmware Upgrade via DHCP/TFTP > If a TFTP server is available, you can use it to perform fi rmware upgrade for a huge number of intelligent ATS ( IPD-03-S built-in ) in the same network. •...
  • Page 33 < 1.16 > Bulk Firmware Upgrade Step 6. Reboot the Intelligent ATS. The DHCP server will execute the commands in the “ fwupdate.cfg ” fi le on the TFTP server to upgrade those intelligent ATS supporting DHCP in the same network. You can Click “ Reboot System ” in “ System ” of intelligent ATS GUI. You must enable fi...
  • Page 34 < 1.16 > Bulk Firmware Upgrade Confi guration of username / password for bulk fi rmware upgrade Step 1. Access the SSH using putty Step 2. Input the login name and password to login the CLI. Step 3. Select “ (U) Firmware upgrade ” and “ Enter ” UM-IP-ATS-03-S-Q223V1 P.31 www.austin-hughes.com...
  • Page 35 < 1.16 > Bulk Firmware Upgrade Step 4. Select “ (5) Change fi rmware upgrade authentication ” and “ Enter ” Step 5. Select “ (1) Change authentication name ” or “ (2) Change authentication password ” to change the username or password for bulk fi rmware upgrade purpose. UM-IP-ATS-03-S-Q223V1 P.32 www.austin-hughes.com...
  • Page 36 Please follow the procedures below to confi gure your DHCP server. The illustration below is based on Microsoft Windows Server 2019 Step 1. Add a new vendor class for Austin Hughes Intelligent ATS - Right Click the IPv4 node in DHCP to select Defi ne Vendor Classes ( under server manager, select tools >...
  • Page 37 < 1.16 > Bulk Firmware Upgrade Step 2. Defi ne one DHCP standard option – Vendor Class Identifi er - Right Click the IPv4 node in DHCP to select Set Predefi ned Options. - Select “ DHCP Standard Options ” in the “ Option class ” fi eld, and “ Vendor Class Iden- tifi...
  • Page 38 < 1.16 > Bulk Firmware Upgrade - Click “ Add “ to add the fi rst option. Type “ update-server ” in the Name fi eld, select String as the data type, and type 1 in the Code fi eld and Click “ OK “. - Click “...
  • Page 39 < 1.16 > Bulk Firmware Upgrade - Click “ Add “ to add the fourth option. Type “ update-port ” in the Name fi eld, select String as the data type, and type 4 in the Code fi eld and Click “ OK “. Step 4.
  • Page 40 < 1.16 > Bulk Firmware Upgrade - Click “ Next “. - Select “ DHCP Standard Options “ in the “ Vendor class ” fi eld, select “ 060 Vendor Class Identifi er ” from the Available Options list, and type “ InfraPower ” in the “ String value ”...
  • Page 41 < 1.16 > Bulk Firmware Upgrade - Select “ 002 update-control-fi le ” from the Available Options list, and type the fi lename “ fwupdate.cfg ” in the “ String value ” fi eld. - Select “ 003 update-magic ” from the Available Options list, and type folder name of the fi...
  • Page 42 < 1.16 > Bulk Firmware Upgrade - Select “ 004 update-port ” from the Available Options list, and type UDP port number you set for the TFTP server in the “ String value ” fi eld. Port number 69 is used in this illustration.
  • Page 43 < 1.16 > Bulk Firmware Upgrade Description of Devices.csv Column A & B is reserved for future use Column C is the MAC address of the network interface of Intelligent ATS. Column D & E is the IP address of the network interface of the Intelligent ATS and the TFTP server respectively.

  • Page 44: 802.1X Authentication

    < 1.17 > 802.1X authentication User Guide of 802.1X Authentication 802.1X is an authentication protocol which provides protected authentication for secure network access with the use of a Radius server. It opens ports for network access when an organization authenticates a user’s identity and authorizes them for access to the network. The user’s identity is determined based on their credentials or certifi...
  • Page 45 < 1.17 > 802.1X authentication Please follow the procedures below to setup the 802.1X authentication in Intelligent ATS WEBUI. Step 1. Login the Intelligent ATS’s WEBUI and go the Network. Step 2. Click the Authentication pull down menu and you will see the authentication method. UM-IP-ATS-03-S-Q223V1 P.42 www.austin-hughes.com...
  • Page 46 < 1.17 > 802.1X authentication Step 3. To use PEAP as authentication method, select PEAP. Then input the “ Identity ”, “ Password ” and “ CA certifi cate ” in PEM format. You can uncheck “ Enable CA certifi cate ” to bypass the authentication using CA certifi...

  • Page 47: Command Line Interface ( Cli ) Access

    < 1.18 > Command Line Interface ( CLI ) Access Command Line Interface ( CLI ) allows you access the ATS via Telnet or Secure Shell ( SSH ) to confi gure the system settings and login settings. By default, CLI access via SSH is enabled and Telnet is disabled whereas Telnet can be enabled. Telnet provides the basic security of authentication by user name and password, but not the high- security benefi...
  • Page 48 The company reserves the right to modify product specifi cations without prior notice and assumes no responsibility for any error which may appear in this publication. All brand names, logo and registered trademarks are properties of their respective owners. Copyright 2023 Austin Hughes Electronics Ltd. All rights reserved. UM-IP-ATS-03-S-Q223V1 www.austin-hughes.com...
