Summary of Contents for FuzzDog JenFuzz

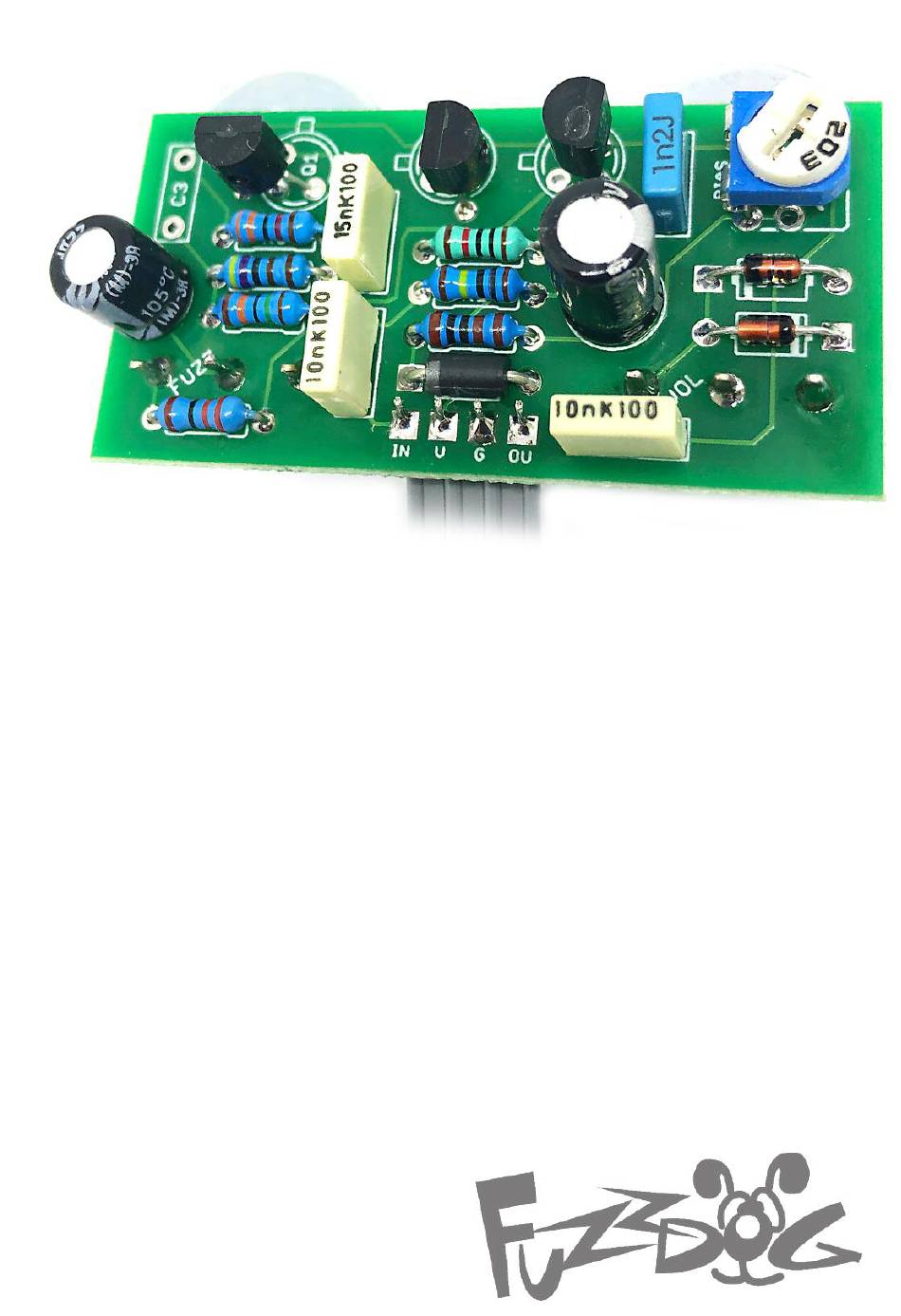

- Page 1 Jen Fuzz Skanky 60s fuzz tones Contents of this document are ©2022 Pedal Parts Ltd. No reproduction permitted without the express written permission of Pedal Parts Ltd. All rights reserved.
-
Page 2: Important Notes
Important notes If you’re using any of our footswitch daughterboards, DOWNLOAD THE DAUGHTERBOARD DOCUMENT • Download and read the appropriate build document for the daughterboard as well as this one BEFORE you start. • DO NOT solder the supplied Current Limiting Resistor (CLR) to the main circuit board even if there is a place for it. - Page 3 Schematic + BOM D1-2 BAT46* ‡ 1N5817 ‡ Empty 150K Q1-3 Low gain NPN BJT** 22u elec BIAS 22K trimmer 100u elec FUzz 50KA*** *Original diodes are SA815. Try what you like here - they’ll make a big difference to the feel of the fuzz.
- Page 5 The power and signal pads on the PCB conform There are extra pads on trimmers to allow to the FuzzDog Direct Connection format, so can different package formats to be used. Pads are be paired with the appropriate daughterboard for connected via PCB traces as shown above, so quick and easy offboard wiring.
- Page 6 Transistor orientation You can use transistors with any combination of pinouts. TO-18 transistors should follow the screen print, with the emitter tab as shown. Standard EBC transistors, such as 2N3904, 2N5088 Standard EBC transistors, such as 2N3904, 2N5088 Standard EBC transistors, such as 2N3904, 2N5088 Standard EBC transistors, such as 2N3904, 2N5088 Standard EBC transistors, such as 2N3904, 2N5088 Standard EBC transistors, such as 2N3904, 2N5088...
- Page 7 Test the board! Check the relevant daughterboard document for more info before you undertake this stage. UNDER NO CIRCUMSTANCES will troubleshooting help be offered if you have skipped this stage. No exceptions. Once you’ve finished the circuit it makes sense to test is before starting on the switch and LED wiring.
- Page 8 Now’s the time to refer to the daughterboard document for your chosen bypass method. Enjoy your pedal!
- Page 9 3 mm This template is a rough guide only. You should ensure correct marking of your enclosure before drilling. You use this template at your own risk. Pedal Parts Ltd can accept no responsibility for incorrect drilling of enclosures. FuzzDog.co.uk...
- Page 10 3 mm This template is a rough guide only. You should ensure correct marking of your enclosure before drilling. You use this template at your own risk. Pedal Parts Ltd can accept no responsibility for incorrect drilling of enclosures. FuzzDog.co.uk...
