FuzzDog Amber Chuck V4 Instructions Manual

Advertisement

Amber Chuck V4
JTM45 in-a-box
Contents of this document are ©2018 Pedal Parts Ltd.
No reproduction permitted without the express written
permission of Pedal Parts Ltd. All rights reserved.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Amber Chuck V4 and is the answer not in the manual?

Questions and answers

Summary of Contents for FuzzDog Amber Chuck V4

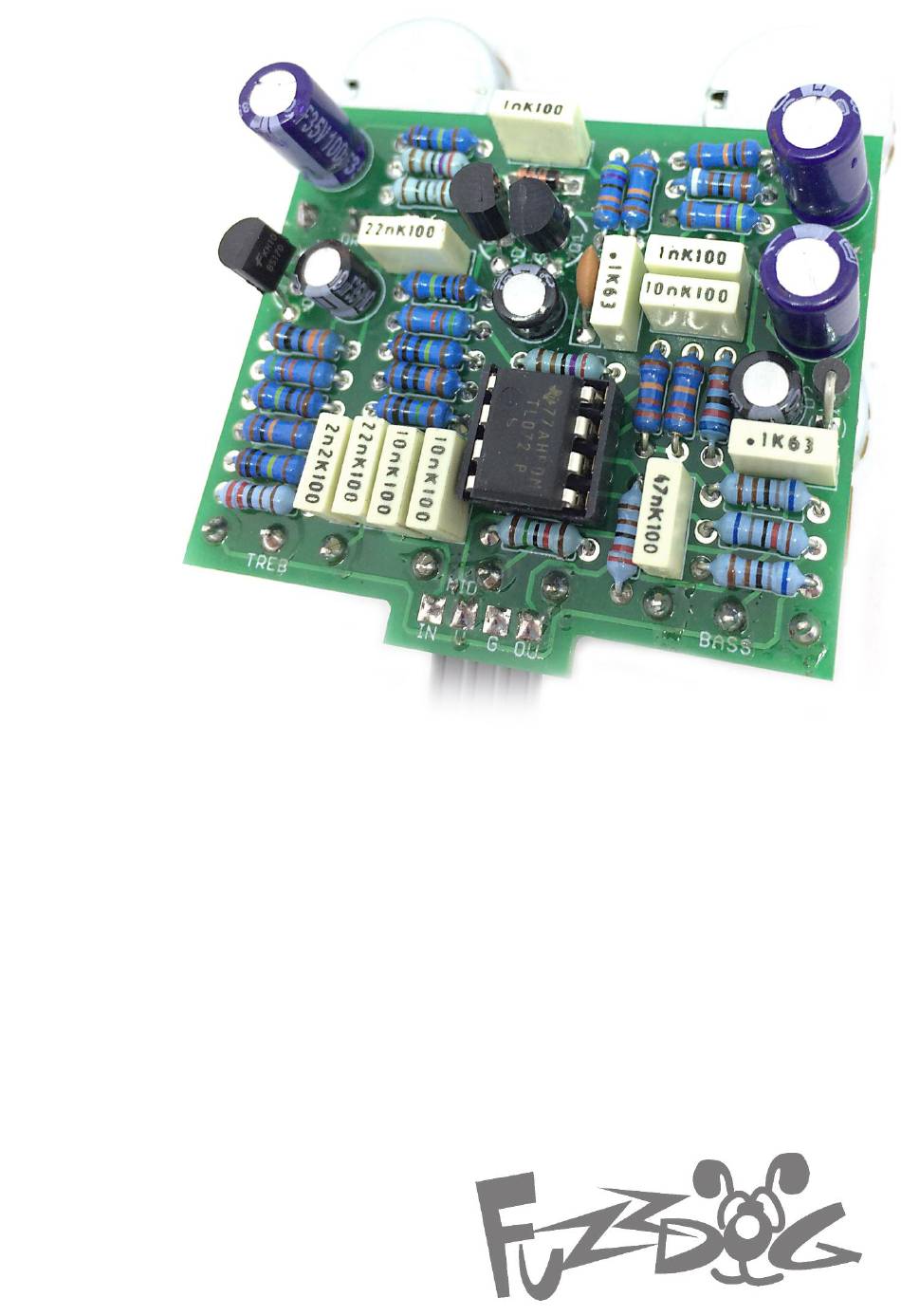

  • Page 1 Amber Chuck V4 JTM45 in-a-box Contents of this document are ©2018 Pedal Parts Ltd. No reproduction permitted without the express written permission of Pedal Parts Ltd. All rights reserved.
  • Page 2 Important notes If you’re using any of our footswitch daughterboards, DOWNLOAD THE DAUGHTERBOARD DOCUMENT • Download and read the appropriate build document for the daughterboard as well as this one BEFORE you start. • DO NOT solder the supplied Current Limiting Resistor (CLR) to the main circuit board even if there is a place for it.
  • Page 3 Schematic + BOM TL072 100K 100n 470p Q1-3 BS170 9.1V zener 1N4001 470K 10KC 100KA BASS 25KB 180R 25KB 10u elec TREB 25KB 10u elec 10u elec 330R 100n 100u elec 100u elec 100u elec...
  • Page 4 The power and signal pads on the PCB conform You should solder all other board-mounted to the FuzzDog Direct Connection format, so components before you solder the pots. Once can be paired with the appropriate they’re in place you’ll have no access to much of daughterboard for quick and easy offboard the board.
  • Page 5 Test the board! BATTERY 9V GND Your nice, new circuit board INCLUDING WIRED POTS!!!! UNDER NO CIRCUMSTANCES will troubleshooting help be offered if you have skipped this stage. No exceptions. Once you’ve finished the circuit it makes sense to test is before starting on the switch and LED wiring.
  • Page 6 Wire it up (if using a daughterboard please refer to the relevant document) BOARD BOARD INPUT BOARD BOARD BOARD BOARD BOARD BOARD BATTERY Wiring shown above will disconnect the battery when you remove the jack plug from the input, and also when a DC plug is inserted. The Board GND connections don’t all have to directly attach to the board.
  • Page 7 17 5mm This template is a rough guide only. You should ensure correct marking of your enclosure before drilling. You use this template at your own risk. Pedal Parts Ltd can accept no responsibility for incorrect drilling of enclosures. FuzzDog.co.uk...
