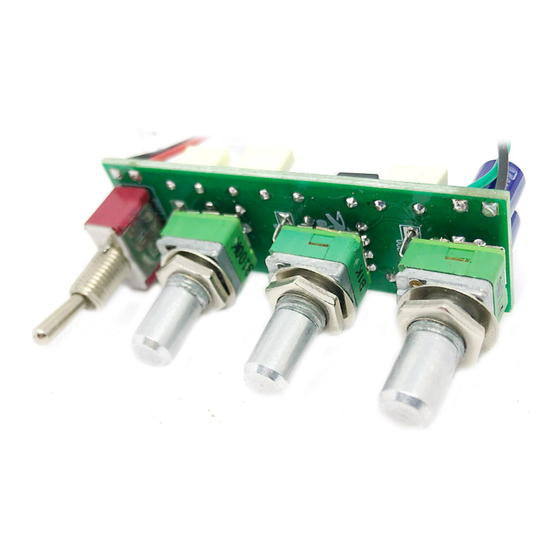

- Page 1 Ruby / Noisy Cricket A couple of saucy little amps Contents of this document are ©2020 Pedal Parts Ltd. No reproduction permitted without the express written permission of Pedal Parts Ltd. All rights reserved.
- Page 2 Important notes If you’re using any of our footswitch daughterboards, DOWNLOAD THE DAUGHTERBOARD DOCUMENT • Download and read the appropriate build document for the daughterboard as well as this one BEFORE you start. • DO NOT solder the supplied Current Limiting Resistor (CLR) to the main circuit board even if there is a place for it.
- Page 3 Schematic RUBY 2N5457* *Other FETs will work, such as J201. This section is LM386-N1 working as a buffer and will have little bearing on the 10KB tone. Pads are provided for GAIN through-hole or SMT FETs. 100n Empty **We’ve been building these for years will 100u at the output.
- Page 4 Schematic NOISY CRICKET 2N5457* *Other FETs will work, such as J201. This section is LM386-N1 working as a buffer and will have little bearing on the 10KB tone. Pads are provided for GAIN through-hole or SMT FETs. 100n TONE 100KB*** **We’ve been building these 100n*** for years will 100u at the...
- Page 5 PCB layout ©2020 Pedal Parts Ltd. Be very careful when soldering Q1. FETs are very You should solder all other board-mounted sensitive to heat. You should use some kind of components before you solder the pots. Once heat sink (crocodile clip or reverse action they’re in place you’ll have no access to much of tweezers) on each leg as you solder them.
- Page 6 Enclosure layout Of course you can lay it out however you like, but it was designed for this configuration in a 1590B.
- Page 7 Wiring This configuration, using a TRS input jack, will disconnect the battery when the jack is unplugged. However, if you have a DC supply connected it will be on all the time. You can add an on/off switch inline with the ground wire between the DC socket and the PCB - see bottom.
- Page 8 2 mm 2 mm This templates are rough guides only. You should ensure correct marking of your enclosure before drilling. You use this template at your own risk. Pedal Parts Ltd can accept no responsibility for incorrect drilling of enclosures. FuzzDog.co.uk...
