1) INITIAL CHECKS

- In its original packaging, each Style clock
is supplied clipped onto its wall holder,
together with a cleaning kit (impregnated
anti-static cloth), a bag containing 3 screws,
3 rawlplugs and one 33 Ohm resistor. This
resistor is only used for French serial time
distribution.

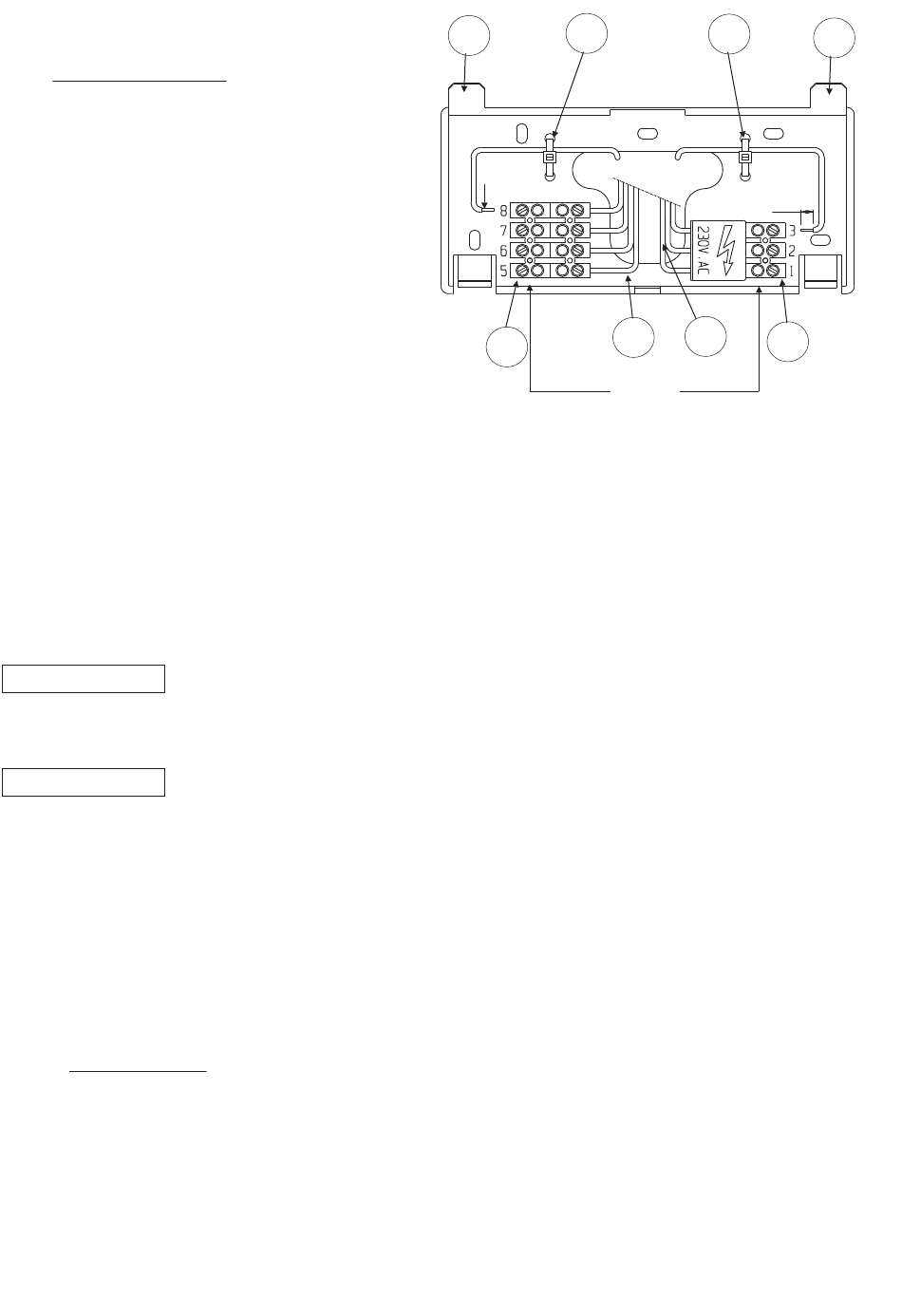

- Unclip the holder (A) : insert your finger at
the base of the opening (B), then pull firmly
towards you.
- IMPORTANT : product information.
Two descriptive labels are affixed to the back of the clock, and visible once the holder has
been removed. One of them indicates the following information : clock model (Style 5,
Style 7, ...), power supply, type of clock (refer to information below), other information such
as the colour for example. Check that the Style clock which has been delivered to you is
suitable for the intended mode of operation.
IND.-M-1/2M
The clock can be configured for independent operation, or linked up to a time
distribution network controlled by a master clock which delivers minute or
half-minute impulses.
SYN. EXT.
The clock can be configured for independent operation, or radio-synchronized
using a radio receiver, P/N 907025 (France-Inter) or P/N 907026 (DCF). Only the
Style 7, Style 7 ellipse and Style 7 date clocks are available in the radiosynchro
version.
Any operation not complying with the present instructions can cause irreversible
damage to the clock, and renders the warranty invalid.
The present instruction booklet concerns "Ind.- Impuls" and "Ind.- Radio" clocks.
For other models, please refer to the appropriate instruction booklet.
Security rules :
The installation and the maintenance service of this clock has to be done by skilled
person.
The installation has to be done according to the standard (NFC 15-100 for France).
You need a 4A break circuit before the power supply.
This break circuit has to be turned off in case of maintenance service.
The power supply has to be turned on only after fixing the clock.
Connection according to the installation instructions TN or TT.
S
E
2
1,5 mm maxi
A
D
Impulses
S
E
5 mm maxi
B
C
115 or 230V
3
