2) ELECTRIC POWER SUPPLY INSTALLATION FOR STYLE CLOCKS

- Wall mounting : Fix the holder (A) in the chosen position, using the 3 rawlplugs and 3
screws supplied.
- Mounting on vertical bracket or ceiling bracket : the holder (A) fits the single-sided mounting
bracket, P/N 936301, the double-sided mounting bracket, P/N 936300, and the double-sided
chain suspension P/N 936302. Use the tapping screws supplied with the bracket.
- A flush-mounting holder for Style 5 s clocks is also available, P/N 936306. This type of
mounting is particularly suitable for operating theatres in hospitals and clinics.
- Remove the black protective cover (covering the terminal strip (C). Connect up the 115
or 230 Volt 50/60 Hz mains supply line to the terminal strip : Live and Neutral on terminals 1
2 nd
and 2 (Wire max. section : 1.5 mm with 5 mm bare). As this clock is classified on the 2
level, the connection to the earth is not required because it is not used.
Put the protective cover back in place. Lock the wires with collars (S).
N.B.: Style clocks have been designed for a 115 or 230 Volt ± 10 % mains supply.
This clock is protected by a fuse (F1).
If the clock belongs to a time distribution network, or if it must be connected to a
France-Inter or DCF radio receiver, please proceed as explained in chapters 3 to 5.

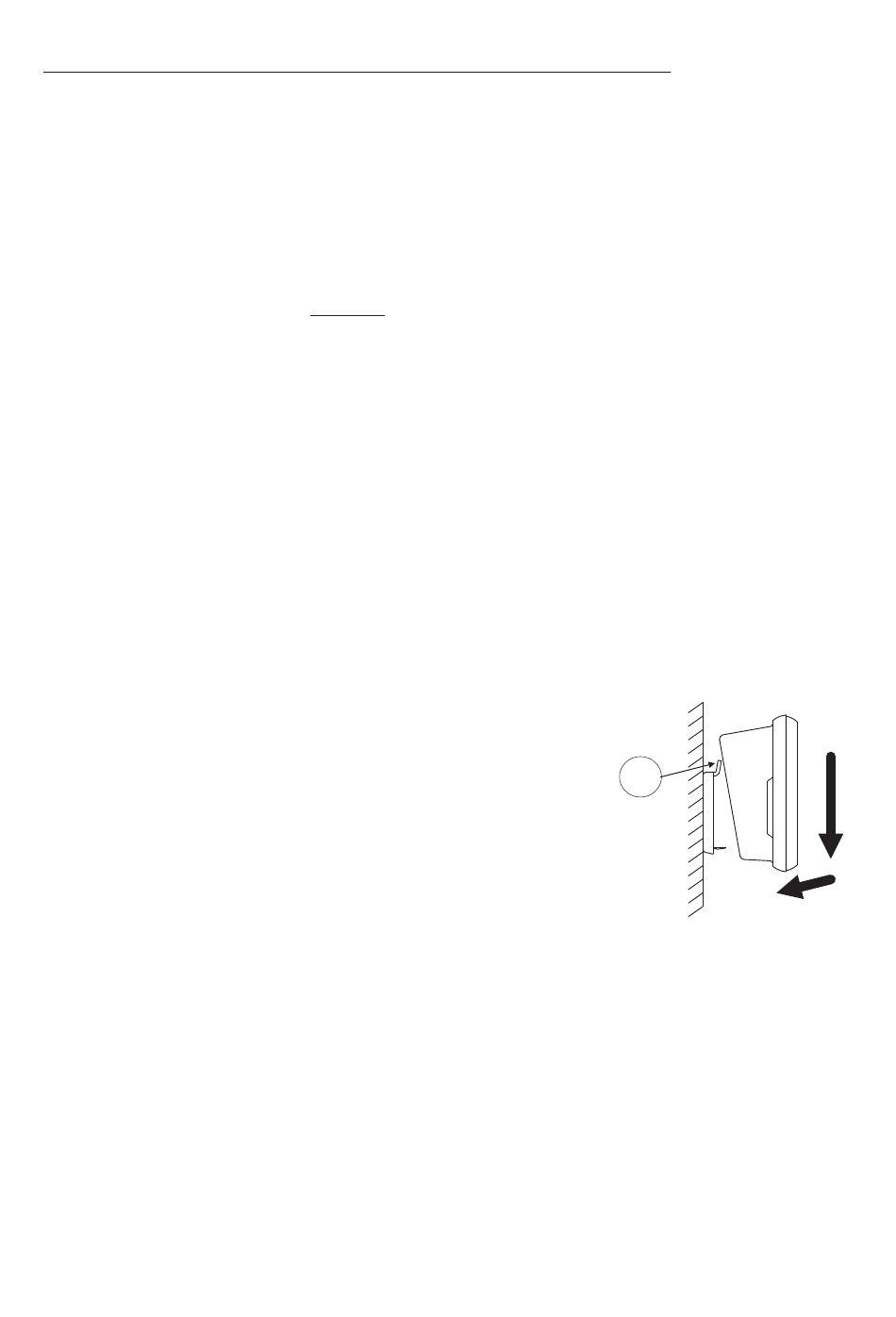

- Clip the clock onto its holder, by introducing the two
studs (E) into the two corresponding openings made in
the back of the clock, and then by pressing firmly on the
E
1
lower part of the clock, until it clicks into place. Take care
not to jam the cables during this operation.
- The clock can be subsequently unclipped from its
2
holder, by pulling the lower part of the clock firmly towards
you, and then by removing it via the top.
- You may now configure your Style clock, set time and date, and adjust the display
brightness. Please refer to Chapters 6 to 9.
- Remove the protective sheet from the front panel and use the anti-static cloth to clean the clock.
- If the display does not change check that the operating mode chosen is indeed "Ind"
(Chapter 7).
