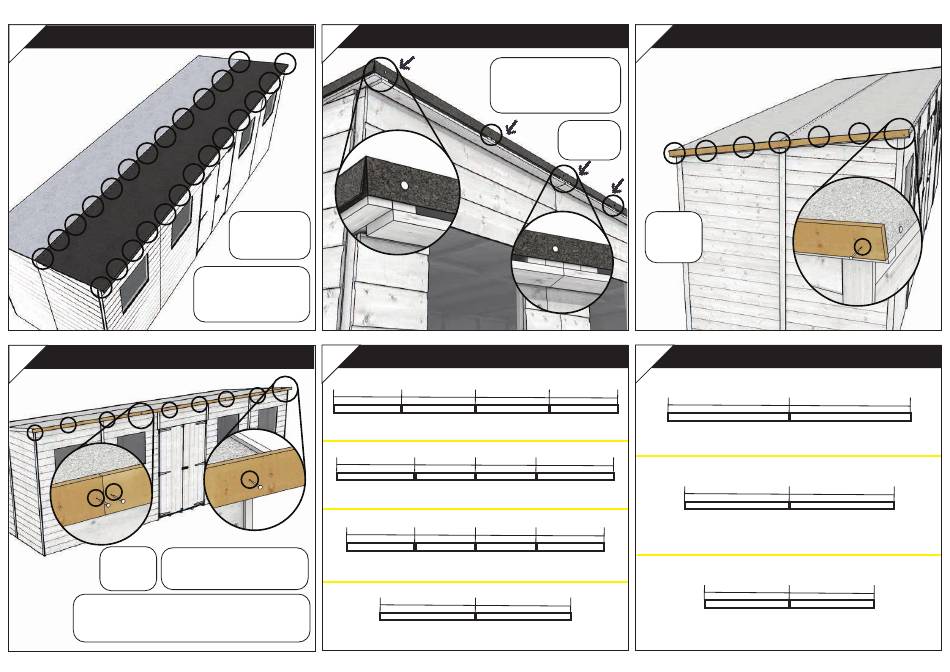

Project Timber Hobbyist Building Instructions page 19

52 Roof Felt fittings
1
2
55
Front Fascia fixing
The fascias are fixed
30mm
to the roof purlins
Nails
Front fascias on 14, 12, 10 and 8
buildings will be joint in centre
53 Roof Felt fittings for TG Roof
T10 Felt
Tacks
The felt overlaps
over the top of the
previous piece
56
Front Fascia Length Diagram
1240mm
Front Fascia (20ft Wide Building)
1530mm
Front Fascia (18ft Wide Building)
1240mm
Front Fascia (16ft Wide Building)
Front Fascia (14ft Wide Building)
On the front the
felt tacks tack into
the roof purlins
T10 Felt
Tacks
1760mm 1760mm 1240mm
1170mm 1170mm 1530mm
1170mm 1170mm 1240mm
2115mm 2115mm
54 Side Fascia fixing
Side Fascia Board
(2)
60mm x 11mm x 2000mm
N30
Nails
57
Front Fascia Length Diagram
1822mm
Front Fascia (12ft Wide Building)
1530mm
Front Fascia (10ft Wide Building)
1235mm 1235mm
Front Fascia (8ft Wide Building)
1822mm
1530mm
