Project Timber Hobbyist Building Instructions page 15

29

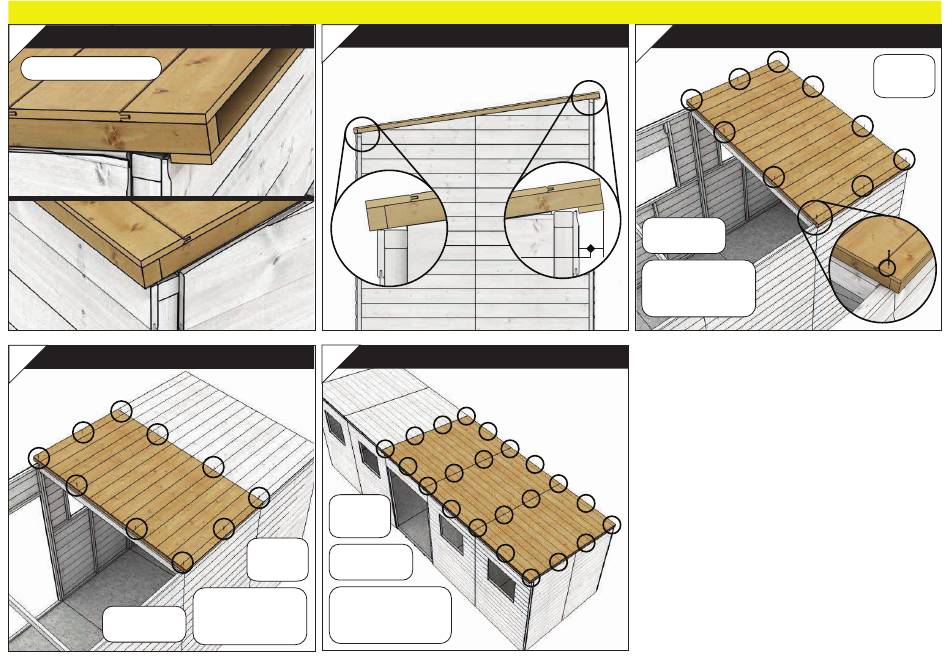

Tongue and Groove Roof Panel fixing
Roof panel position
Side
Back
32
Tongue and Groove Roof Panel fixing
Front
Pilot drill holes
before fixing
For Tongue and Groove Roof Panel ONLY
30
Tongue and Groove Roof Panel fixing
Front
Back
Side
33
Tongue and Groove Roof Panel fixing
70mm
Screws
70mm
Pilot drill holes
Screws
before fixing
Repeat previous
Repeat previous
stage until roof
stage and secure
panels is complete
the roof panel.
Roof Overhang Dimension
Front
41mm
Side View
Back
31
Tongue and Groove Roof Panel fixing
Pilot drill holes
before fixing
Fix the roof panel
to the purlin and
wall panels
Back
70mm
Screws
