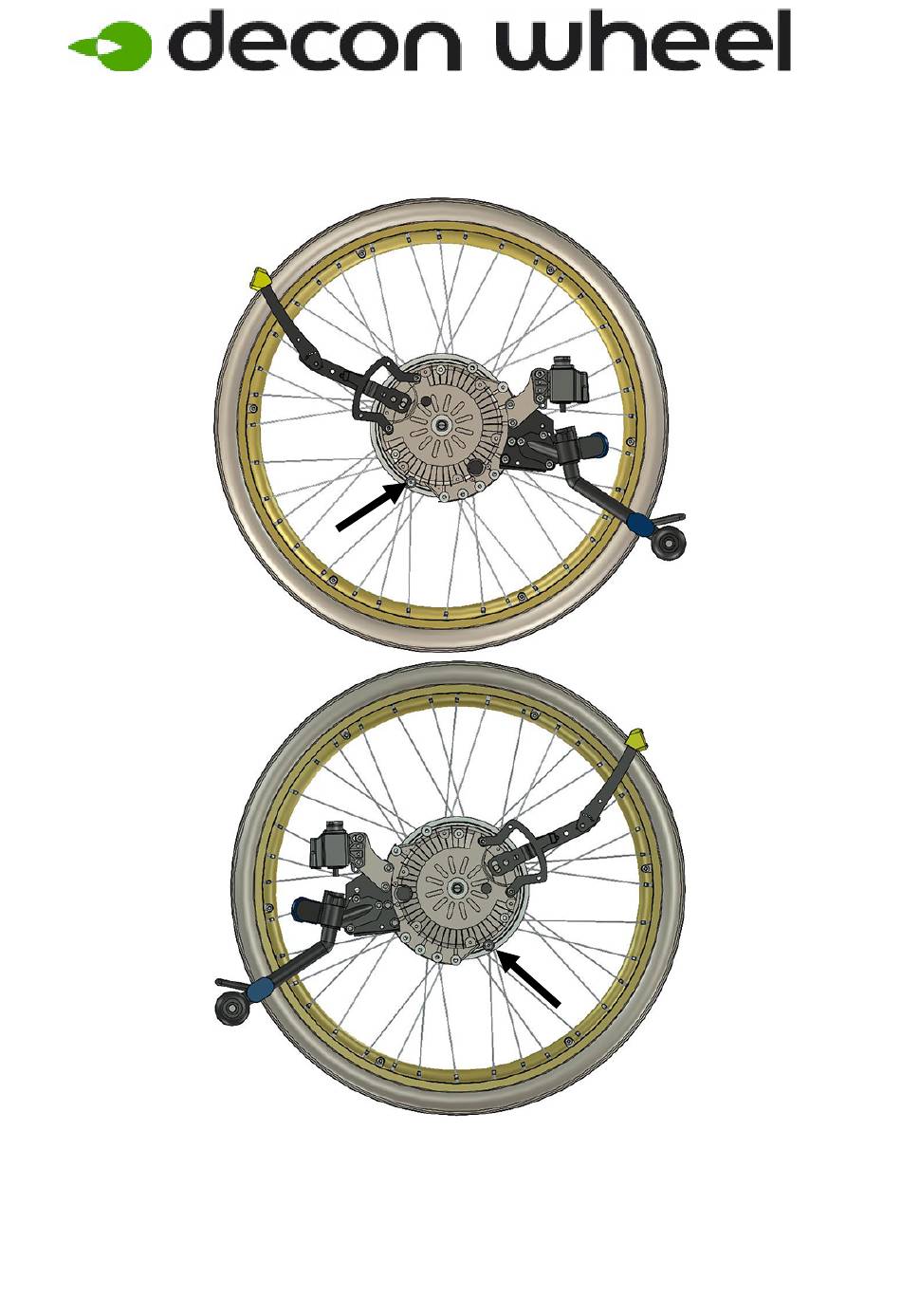

- Page 1 Assembly instructions for XLT Nordic/ Power MED3027 1. Remove wheels and hubsleevers on both sides. 2. Check the correct placement for the stop pin. 2020-04-23...
- Page 2 Placement on Boxer frame. Placement on U and V frame Boxer frame Part Number: 300011 U and V frame Part Number: 300023 1. Assembly the plate (right side) according to picture. Parts pair mountingset for one side: Item No. Part Number Description MED2000 Bracket...
- Page 3 2. Assemble the under placed battery bag or if have order a Lithium battery place the battery holder as the picture bellow. Note! Lithium battery is not possible to mount on the Box frame (XLT Nordic). Assemble instructions for MEM5014 on wheelchairs Item No.
- Page 4 Joystick for user Item No. Part Number Description XOC-48160-B0 Upper holder assembly2 XSM6X30 Screw M6 x 30 XSM6BR Plain washer M6 XSM6ML Locknut M6 XSM6X20 Screw M6 x 20 MED1502 Bracket MED1501 Bracket 2020-04-23...
- Page 5 Attendant control with joystick (left and right side) MED1409 Move this too the other side, if you assemble the joystick on the left side. Item No. Part Number Description MED1317 Bracket XSM6X35 Screw M6 x 35 XSM6X16 Screw M6 x 16 XSM6BR Plain Washer M6 XSM6ML...
- Page 6 Alternative attendant control (only right side) Item No. Part Number Description XSM6TG Thorn Washer 6,4 Xklamma2 XClamp2 XSM6X20 Screw M6 x 20 XSM6BR Plain Washer 6,4 MED1200 Attendant control 2020-04-23...
- Page 7 Åtdragningsmoment / Tightening torque Metriska grovgängor, stål. Metric coarse threads, steel. Gänga / Thread Åtdragningsmoment / Tightening torque 1,2 Nm 3 Nm 6 Nm 10 Nm 25 Nm 50 Nm 85 Nm Navhylsor. Sleeves. Gänga / Thread Åtdragningsmoment / Tightening torque M16x1 30 Nm M18x1...
