- Page 1 Kiosk workstation user's guide www.renishaw.com Kiosk workstation user's guide Documentation part number: H-1000-5422-02-A Issued 10 2022...
-
Page 2: Warranty
Renishaw warrants its equipment and software for a limited period (as set out in the Standard Terms and Conditions), provided that they are installed and used exactly as defined in associated Renishaw documentation. You should consult these Standard Terms and Conditions to find out the full details of your warranty. -
Page 3: Care Of Equipment
Renishaw probes and associated systems are precision tools used for obtaining precise measurements and must therefore be treated with care. Changes to Renishaw products Renishaw reserves the right to improve, change or modify its hardware or software without incurring any obligations to make changes to Renishaw equipment previously sold. Company registration details Renishaw plc. - Page 4 Kiosk workstation user's guide www.renishaw.com Kiosk workstation product compliance EU declaration of conformity Contact Renishaw plc or visit www.renishaw.com/EUCMM for the full EU declaration. UK declaration of conformity Contact Renishaw plc or visit www.renishaw.com/UKCMM for the full UK declaration. REACH regulation Information required by Article 33﴾1﴿...
-
Page 5: Emergency Stop
Renishaw product documentation and health and safety literature should be considered in determining the safety strategy for the use of this equipment. The Renishaw system may provide the following safety categories, to standard EN ISO 13849, according to the type of servo amplifier fitted:- SPA2-2: Category 2 The choice of the stop category of the emergency stop depends on the results of the user's risk assessment of the machine. - Page 6 Kiosk workstation user's guide www.renishaw.com Kiosk workstation environmental conditions Indoor use IP54 (BS EN60529:1992) Altitude Up to 2000 m Operating temperature +10 °C to +40 °C Storage temperature ‐20 °C to +70 °C Relative humidity 80% maximum ﴾non‐condensing﴿ for temperatures up to +31 °C Linear decrease to 50% at +50 °C...

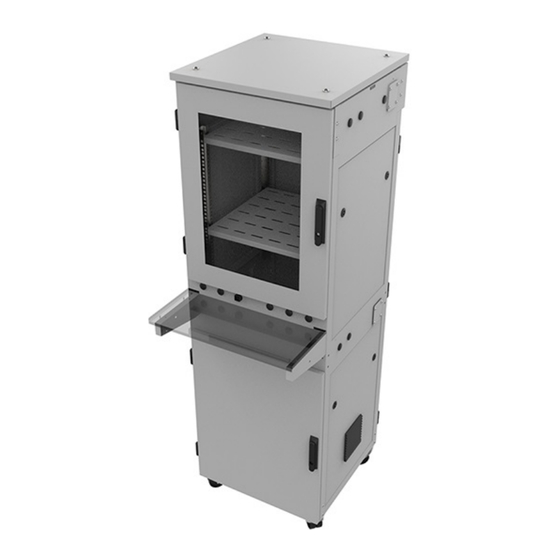

- Page 7 Introduction The CMM kiosk is Renishaw's offering of a workstation housing that is suitable for the more harsh situations such as the shop floor environments. The CMM kiosk offers IP54 protection to the CMM's monitor, PC and printer. It has been ergonomically designed for ease of interaction with the CMM, and offers mounting points for a variety of optional extras such as MCU and part identification scanners.
- Page 8 Kiosk workstation user's guide www.renishaw.com Kiosk workstation description Dimensions NOTE: Dimensions in mm (in). Issued 10 2022...
- Page 9 180° opening lockable front doors The front and rear access doors open to 180° and are lockable with a 7 mm square key. Two keys are supplied with each unit. Please contact your local Renishaw office if replacement keys are required. Issued 10 2022...
-
Page 10: Power Distribution
Power is supplied to the cooling fans via a 24 V distribution PCB mounted within the kiosk. A 24 V PSU transformer block, to power this PCB, is supplied with each kiosk. If a replacement 24 V PSU is required, please contact your local Renishaw support office. Issued 10 2022... -
Page 11: Installation Variants
Kiosk workstation user's guide www.renishaw.com Installation variants The kiosk must be restrained from toppling. The preferred option is to use floor mounting fixings to secure the kiosk to the floor. The kick plates supplied in the kiosk kit should be secured to the floor. - Page 12 Kiosk workstation user's guide www.renishaw.com 3. Fix the kiosk base to the side plates. Issued 10 2022...
- Page 13 Kiosk workstation user's guide www.renishaw.com 4. Once attached, fix the front and rear panels in place. NOTE: If desired the kiosk can be re-positioned and re-installed by a single engineer with no lifting equipment. Please contact the installer to arrange reposition of the kiosk if required.
- Page 14 Kiosk workstation user's guide www.renishaw.com Description Part number Kiosk assembly A-6509-1100 MCU tray A-6509-0122 MCU docking port assembly A-1333-0026 Kick plate kit A-6509-0300 Issued 10 2022...
-
Page 15: Customer Options
Kiosk workstation user's guide www.renishaw.com Customer options The kiosk can be configured in several different ways to suit the user. These include mounting options for the MCU and front or side-mounted keyboard tray. Lockable drawers can be installed into the lower section of the kiosk. -
Page 16: Periodic Checks
Kiosk workstation maintenance Lifting NOTE: Lifting must only be carried out by the kiosk workstation installer. Please contact the kiosk workstation installer. Periodic checks It is advised to periodically check the kiosk and cable management system for damage or wear to key parts. Any visible damage or wear should be reported to the system maintenance engineer. -
Page 17: Cooling Fans
The fans have mesh filters. Renishaw recommends that these are changed every 12 months at a minimum. If the kiosk is located in an environment with high levels of particulates in the air, the filters should be changed at more regular intervals. - Page 18 Renishaw plc +44 (0)1453 524524 New Mills, Wotton-under-Edge +44 (0)1453 524901 Gloucestershire, GL12 8JR United Kingdom www.renishaw.com/cmmsupport For worldwide contact details, please visit our main website at www.renishaw.com/contact Issued 10 2022...
