- Page 1 Installation guide ATS 40-800 Installation and User Guide for EQ500 Gauge www.renishaw.com/gauging...
- Page 2 RENISHAW EXCLUDES LIABILITY, HOWSOEVER ARISING, FOR ANY INACCURACIES IN THIS DOCUMENT. Trademarks RENISHAW® and the probe emblem used in the RENISHAW logo are registered trademarks of Renishaw plc in the UK and other countries. apply innovation is a trademark of Renishaw plc.
-
Page 3: Table Of Contents
Contents Before you begin ..........................4 Safety and warnings........................5 Product information ........................8 Hardware .............................9 Product installation ........................10 Installation in Renishaw Enclosure ....................17... -
Page 4: Before You Begin
Prior consent must be obtained in instances where Renishaw equipment is to be substituted or omitted. Failure to comply with this requirement will invalidate the warranty. -
Page 5: Safety And Warnings
Safety and warnings Safety and warnings Residual Risk Summary 1. There is a potential crushing hazard between the rear corners of the EQ500 fixture plate (C) and the front support legs (E) of the EQ500. 2. There is a potential impact injury if a user stands in the area where the EQ-ATS extends to the out position. 3. - Page 6 1. There is a potential crushing hazard between the rear corners of the EQ500 fixture plate (C) and the front support legs (E) of the EQ500. 2. There is a potential impact injury if a user stands in the area where the EQ-ATS extends to the out position.
- Page 7 Care should be taken when handling this product. If the product is dropped or receives an impact, it must be assumed that it is not suitable for use and Renishaw should be contacted with reference to a replacement. Safety shoes and glasses should be worn at all times during installation and use of the EQ-ATS.
-
Page 8: Product Information

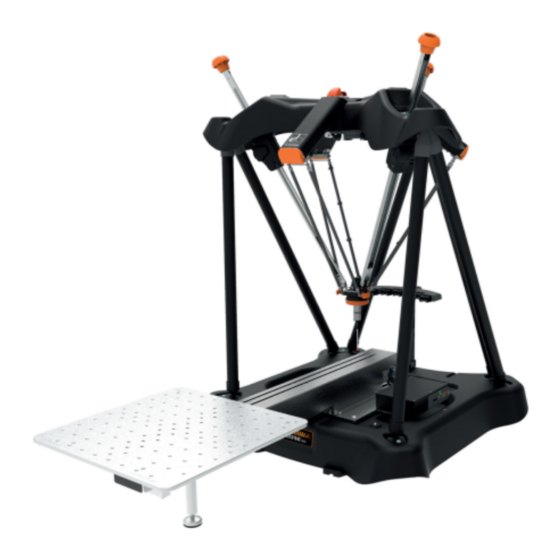

The part can be loaded onto the EQ-ATS manually or by robot. The EQ-ATS suits parts and fixtures up to 50 kg. Please contact Renishaw if there is a requirement to support heavier parts. The distance from the fixture plate to the top of the working volume, with a standard Ø8 mm x 75 mm long stylus, is 250 mm for an Equator 500 extended height. -
Page 9: Hardware
Hardware EQ-ATS kit Item Description EQ-ATS M8 Fixture Plate Air pressure regulator Pneumatic tube (2 m) Hex key (5 mm A) (4 mm B) and bolts PS/2 to 9-pin D-type cable (sold separately)* Stop Button with 9-pin D-type connector (sold separately)* EQ-CM1 (sold separately) Support Leg (assembled) * Required for Equator 500 systems with a Stop Button (PS/2 connector) and no joystick... -
Page 10: Product Installation
Product installation The Equator gauging system must be turned off prior to installation and fully secured to the surface of the Equator Enclosure, or equivalent table, using the Equator foot stud installation kit (7) supplied with the EQ-ATS. Please follow the instructions in the Equator foot stud installation kit. - Page 11 5.1 Nm...
- Page 12 116mm 5.1 Nm...
- Page 13 2 Nm 5.1 Nm...
- Page 14 A-5923-0020 EQ-CM1 User Guide 9 Nm...
- Page 15 :6 mm Set to 3 bar...
-
Page 17: Installation In Renishaw Enclosure
Installation in Renishaw Enclosure Please note: Additional base plates including M6, M8 and 1/4” are available. Please contact Renishaw for further information. Warning: • Parts should be clamped securely when in use. • Please ensure that the Equator has been turned off when disconnecting the EQ-ATS. - Page 18 Page intentionally left blank...
- Page 19 Page intentionally left blank...
- Page 20 © 2018 Renishaw plc. All rights reserved. Renishaw reserves the right to change specifications without notice. RENISHAW and the probe symbol used in the RENISHAW logo are registered trade marks of Renishaw plc in the United Kingdom and other countries. Part no.: H-6242-8502-02-A apply innovation and names and designations of other Renishaw products and technologies are trade marks of Renishaw plc or its subsidiaries.
