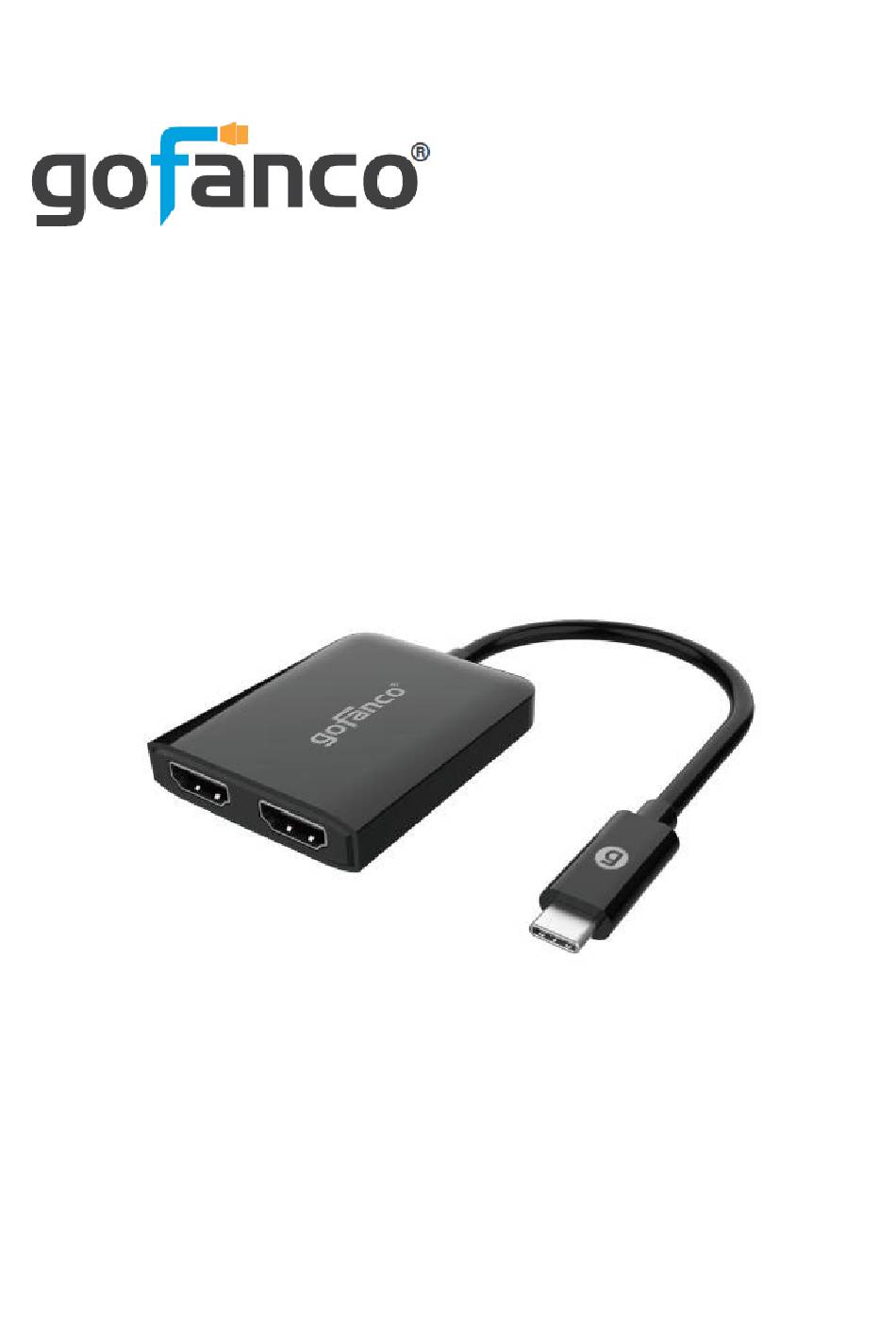

- Page 1 USB-C MST 2-Port HDMI Hub 4K 60Hz User's Guide P/N: USBCMST2HD-4K60 G4-0139A...
- Page 2 Thank you for purchasing from gofanco. Our products aim to meet all your connectivity needs wherever you go. For optimum performance and safety, please read the instructions carefully and keep this User’s Guide for future reference. If you need more information about our products, please visit www.gofanco.com.

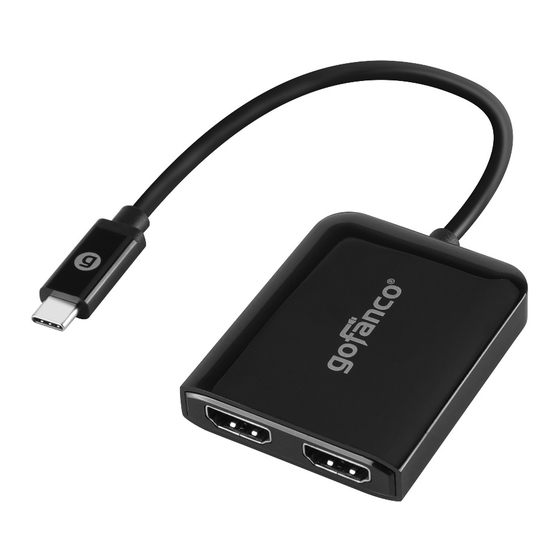

- Page 3 Introduction gofanco's USB-C MST 2-Port HDMI Hub 4K 60Hz enables you to connect 2 HDMI displays to your USB-C DisplayPort Alternate enabled computer. Package Contents USB-C MST 2-Port HDMI Hub 4K 60Hz • User's Guide • System Requirements Host computer with an available USB-C DP •...
- Page 4 DisplayPort 1.2 GPU output only supports • two displays up to 4K @30Hz macOS does NOT support MST function • and will only mirror the displays Most Intel GPU's (video cards) are limited • to 3 external displays altogether, including the displays connected to the MST hub Product Layout HDMI Output (x2)
- Page 5 Hardware Installation Important: The source USB-C output must support DP 1.2/1.4 signal for this adapter to pass video to the HDMI display(s). Power off all devices you plan to connect to the unit. Connect the unit to your PC's USB-C connector.
- Page 6 Specifications Hardware Output Signal HDMI Output Ports Audio Output LPCM 7.1 DP 1.2/1.4 Compliance HDMI compliant Input: 1x USB-C, Male Connectors Output: 2x HDMI, Female Cable Length 6 inches (150mm) Video Resolution DP 1.4: Up to 3840x2160 @60Hz (single or dual displays) Windows (MST mode) DP 1.2: Up to 3840x2160 @60Hz (single display) or 3840x2160 @30Hz (dual displays)
- Page 7 Disclaimer The product name and brand name may be registered trademarks of related manufacturers. TM and ® may be omitted on the user’s guide. The pictures on the user’s guide are just for reference, and there may be some slight differences with the actual products.
- Page 8 Thank you for choosing gofanco www.gofanco.com...
