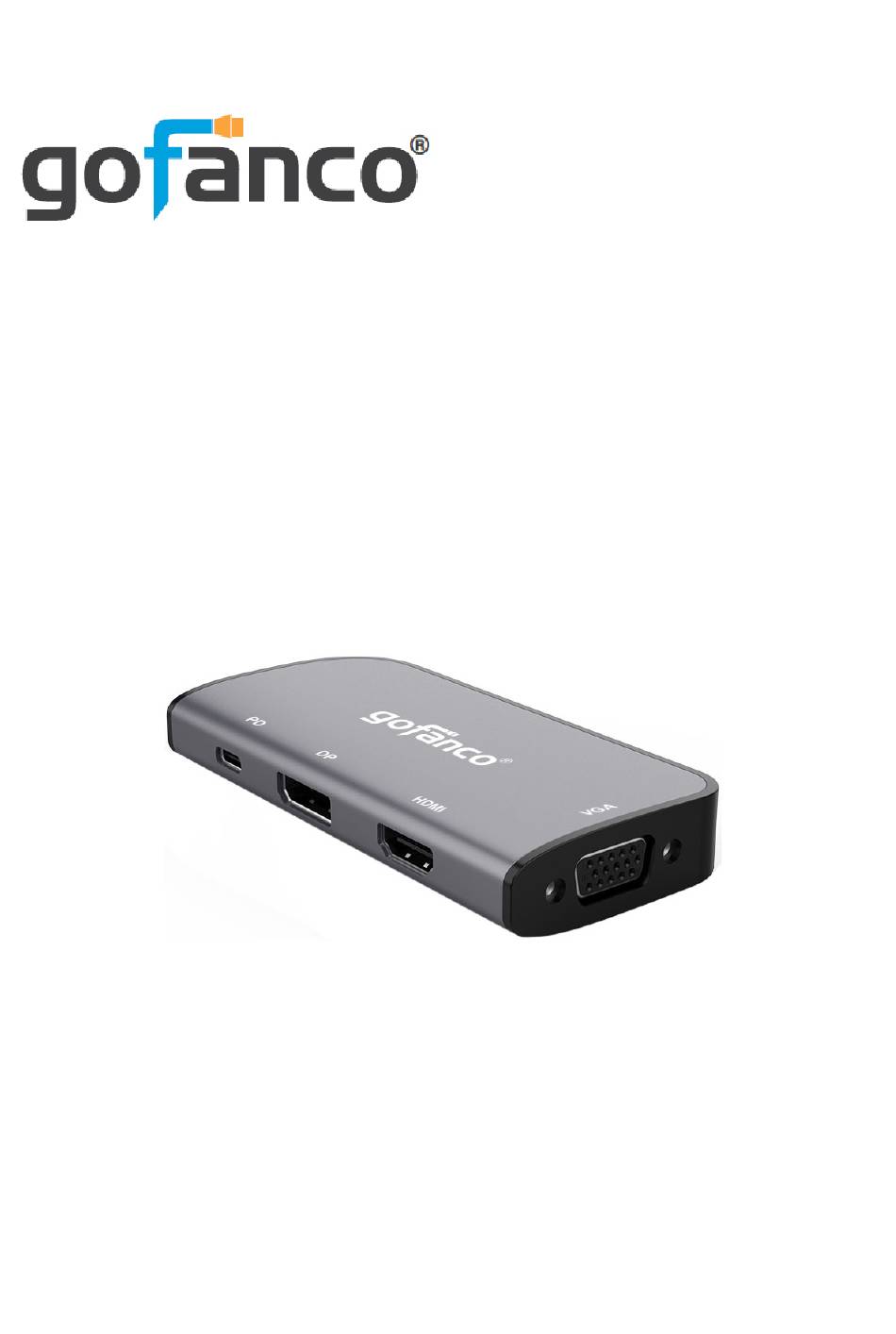

- Page 1 USB-C to Multi-Video MST Hub with PD 3.0 User's Guide P/N: USBCMST3VID G4-0088A...
- Page 2 Thank you for purchasing from gofanco. Our products aim to meet all your connectivity needs wherever you go. For optimum performance and safety, please read the instructions carefully and keep this User’s Guide for future reference. If you need more information about our products, please visit www.gofanco.com.
- Page 3 Introduction gofanco's USB-C to Multi-Video MST Hub with PD 3.0 transforms a single USB-C port into a multi-video hub with PD 3.0 charging port. Features Transforms a single USB-C port with • DisplayPort Alternate (DP Alt) mode or Thunderbolt 3 technology into 3...
-
Page 4: Installation Requirements

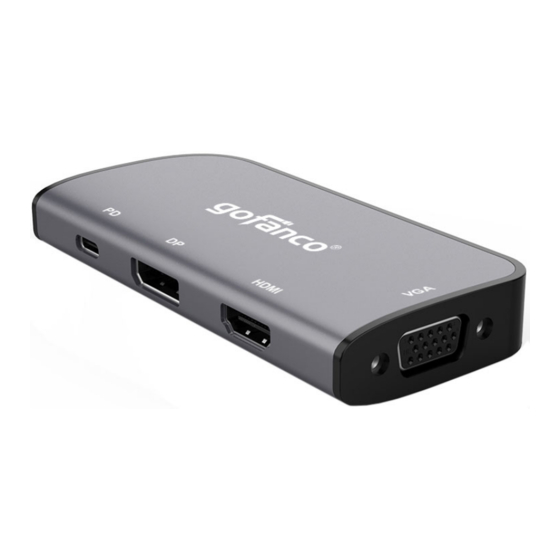

Installation Requirements PC with an available USB-C with • DisplayPort Alternate mode or Thunderbolt 3 port. Windows 10 / 8.x / 7 (32-/64-bit) • ® Note: Mac OS does not support MST function, the hub becomes a splitter displaying the same content on each display Product Layout USB-C PD port: Connects to USB-C power adapter up to 100W. - Page 5 Hardware Installation Important: The source USB-C output must support DisplayPort Alternate (DP Alt) mode or Thunderbolt 3 technology for the hub to work properly. Please verify DisplayPort Alternate mode over USB-C or Thunderbolt 3 with your computer manufacturer. Power off all devices you plan to connect to the dock.
- Page 6 Important Notes DisplayPort Alternate Mode (DP Alt Mode) • over USB-C required Intel HD Graphics are limited to 3 external • monitors altogether When mixing 4K with 1080p or lower • resolution displays, connect the lowest resolution display to the hub 1st Advanced MST graphics technology is •...
- Page 7 MST Resolution Below are examples of the maximum resolutions for each configuration. DP (1 screen) 4K@60Hz HDMI (1 screen) 4K@30Hz VGA (1 screen) 1080p@60Hz DP + HDMI (2 screens) 4K@30Hz + 4K@30Hz HDMI + VGA (2 screens) 4K@30Hz + 1080p@60Hz DP + VGA (2 screens) 4K@60Hz + 1080p@60Hz DP + HDMI + VGA (3 screens, option 1) 4K@30Hz + 1080p@60Hz + 1080p@60Hz...
-
Page 8: Specifications
Specifications Housing Material Aluminum Input: 1x USB-C, Male Output: 1x USB-C, PD, Female Connectors 1x 20-pin, DisplayPort, Female 1x 19-pin, HDMI, Female 1x 15-pin, VGA, Female Video Type DisplayPort, HDMI, VGA DisplayPort: Up to 4K @60Hz Resolution HDMI: Up to 4K @30Hz VGA: Up to 1920x1080 @60Hz Data Transfer Rate Up to 18Gbps... - Page 9 Blank Page...
- Page 10 Blank Page...
- Page 11 Disclaimer The product name and brand name may be registered trademarks of related manufacturers. TM and ® may be omitted on the user’s guide. The pictures on the user’s guide are just for reference, and there may be some slight differences with the actual products.
- Page 12 Thank you for choosing gofanco www.gofanco.com...
