Preliminary Technical
Data

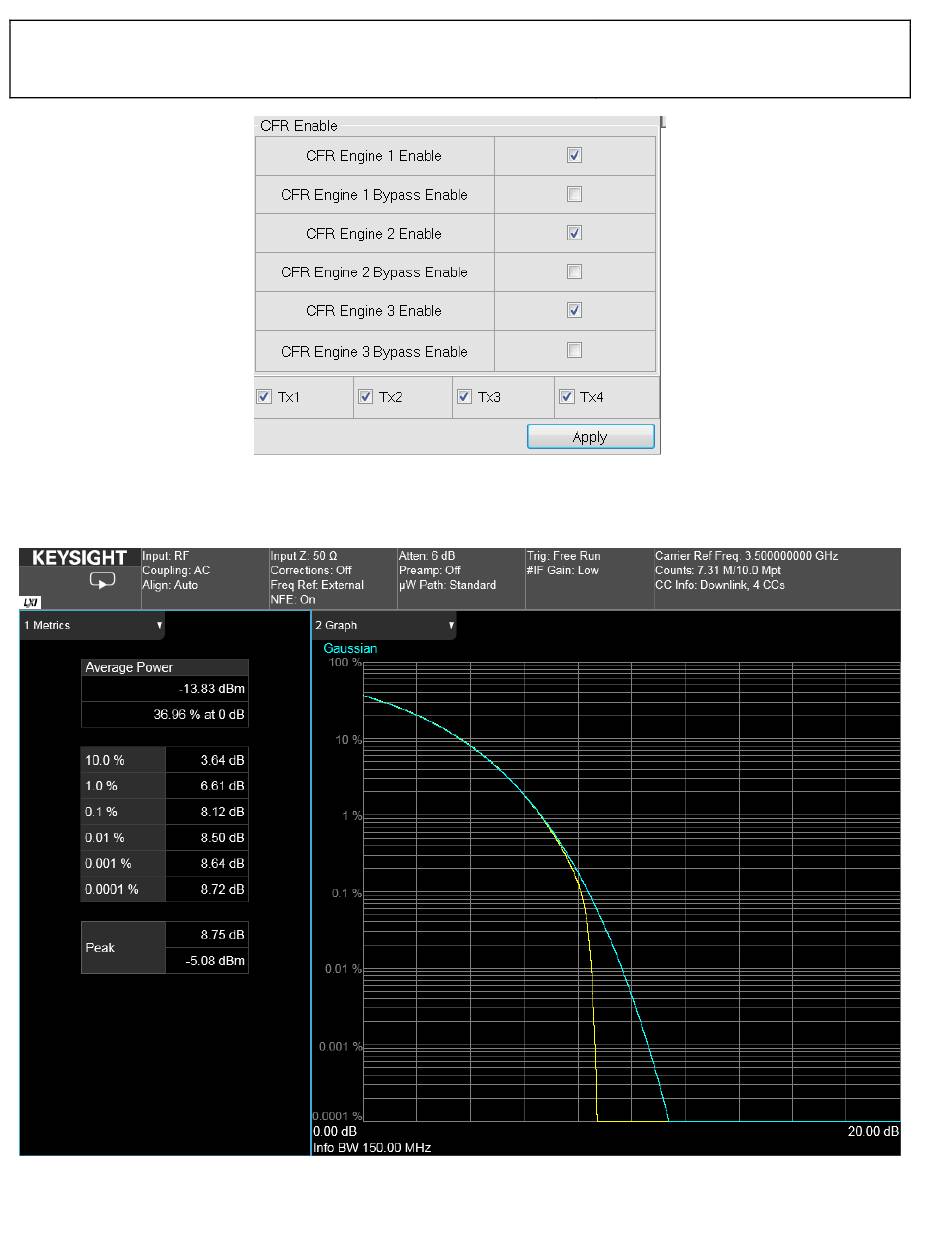

Figure 58. Enabling CFR Using TES
After clicking on 'Apply' (which runs the CFR init cal), the CFR engines will be enabled, and the corrected waveform can be
observed on the spectrum analyzer as shown in Figure 59.
As we can see in
, the corrected CCDF curve has a PAR of 8.75 dB which corresponds to the CFR peak threshold that we
Figure 59. CCDF of Corrected Waveform Ssing CFR
had set earlier. We do not see any spectral regrowth and can achieve the desired PAR.
Figure 59
Rev. PrA | Page 56 of 82
