The following adjustments listed in Table 10 can be used to configure the DPD actuator gain monitoring feature.
DPD Actuator Gain Monitoring Configurations
Table 10. DPD Gain Monitoring Configurations
Gain Monitor Configuration
adi_adrv9025_DpdActGainMonitorCtrl_t.
dpdGainMonitorEnable
adi_adrv9025_DpdActGainMonitorThresh_t.
dpdGainMonitorQualThresh
adi_adrv9025_DpdActGainMonitorCtrl_t.
highGainModelAutoLoadEnable
adi_adrv9025_DpdActGainMonitorCtrl_t.
adi_adrv9025_DpdActGainMonitorThresh_t.
dpdGainMonitorUpperThresh
adi_adrv9025_DpdActGainMonitorThresh_t.
dpdGainMonitorLowerThresh
adi_adrv9025_DpdActGainMonitorCtrl_t.
dpdGainMonitorUpperThreshModelSel
adi_adrv9025_DpdActGainMonitorCtrl_t.
dpdGainMonitorLowerThreshModelSel
adi_adrv9025_DpdActGainMonitorCtrl_t.

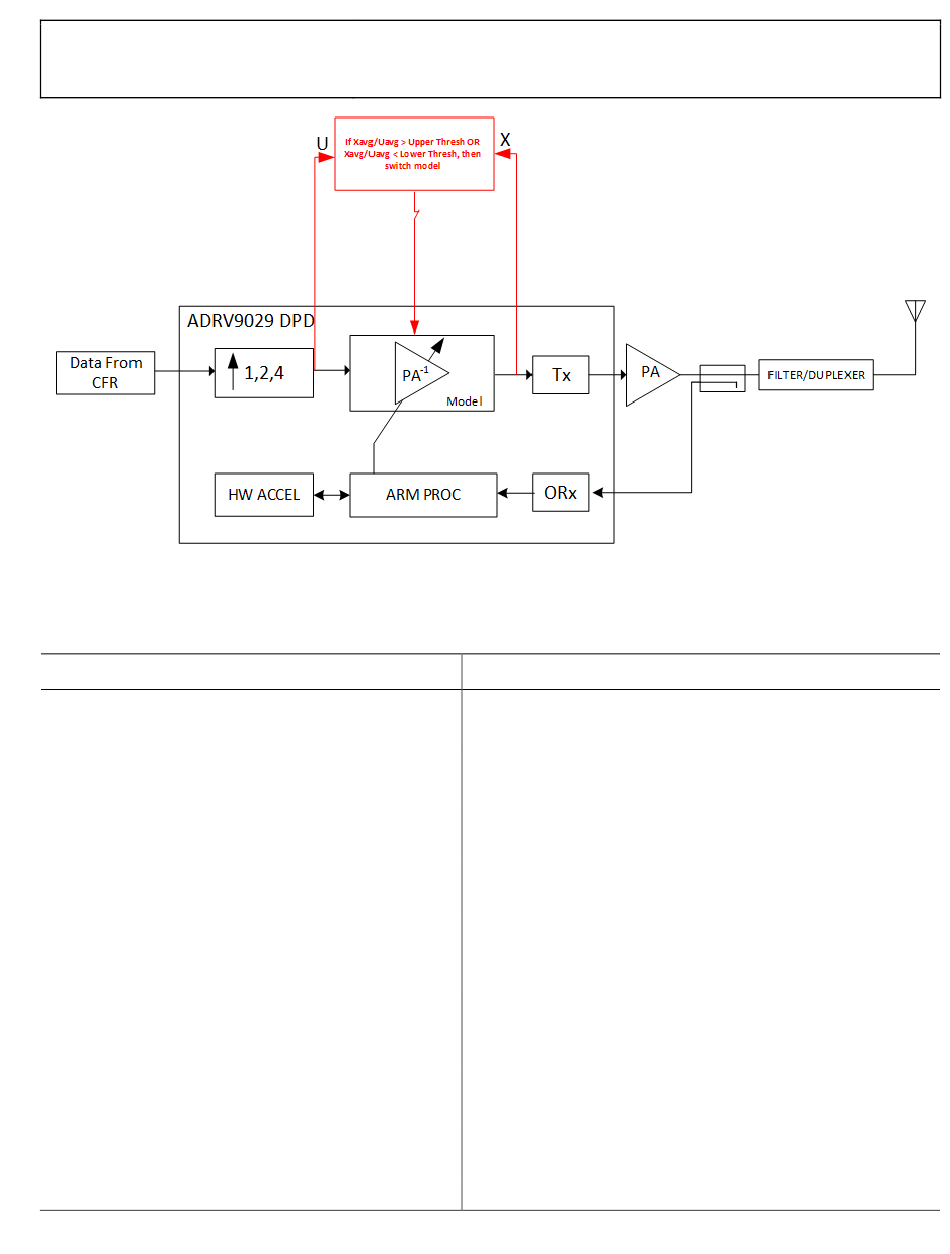

Figure 29. DPD Actuator Gain Monitoring Functional Diagram
Description
Enable/Disable gain monitoring
Minimum signal level above which gain monitoring will be
exercised. MSB 16 bits of I
Configuration to explicitly enable/disable high gain over range
detection
Configuration to explicitly enable/disable low gain under range
detection
High gain threshold above which a model switch can be initiated
by the gain monitoring hardware. Only applicable if gain
overrange detection is enabled
Low gain threshold(attenuation) below which a model switch can
be initiated by the gain monitoring hardware. Only applicable if
gain under range detection is enabled.
Model to switch to on violation of high gain threshold
Model to switch to on violation of low gain threshold
Controls the number of samples over which gain is averaged.
Rev. PrA | Page 27 of 82
+ Q 32 bit data.
2 2
