Summary of Contents for FAR RAC 83

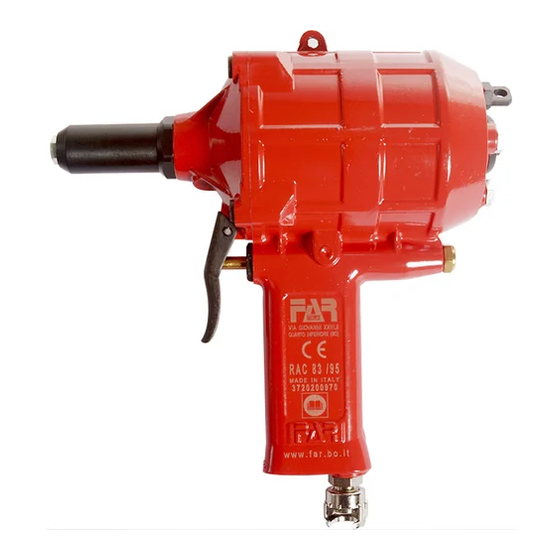

- Page 1 TRANSLATION OF ORIGINAL INSTRUCTIONS PNEUMATIC RIVETING TOOL FOR RIVETS Ø 2.4 ÷ Ø 4.8 (Ø 4.8 ALUMINIUM ONLY) www.air-allied.com.au sales@air-allied.com.au www.air-allied.com.au...
- Page 2 The undersigned Far S.r.l., having its office in Quarto lnferiore (BO), Via Giovanni XXIII No. 2, herewith DECLARES on its sole responsibility that the riveting machine Type: RAC 83/95 - Pneumatic tool Application: for rivets diameter. 2.4—4.8 mm (4.8 aluminum only) which is the object of this declaration complies with the basic safety requirements established in the law decree Leg.
-
Page 3: Disposal Of The Riveting Tool
GENERAL NOTES AND USE The tool must be used for rivets diam. 2.4 - 4.8 mm only. Diameter is 4.8 mm only in aluminum. Code Ø D Ø A ÷ 717001 8.5 2.25 1.7 ÷ 2.1 717002 ... -
Page 4: Main Components
TOOL IDENTIFICATION • Do not carry the connected tool by pulling the hose. The hole must be far from any heating sources or from cutting TECHNICAL DATA parts. MAINTENANCE & CHANGE OF SIZE •... -
Page 5: Tool Identification
TOOL IDENTIFICATION WARNING! The riveting tool RAC 83 AX is identified from a marking Disconnect air feed when performing those that shows company name and address of manufacturer, designation of the tool, CE mark and year of manufactur- operations. ing. If any service is requested, please make reference to the data shown on the marking.
