Powerplus POWX0761 Manual

Hide thumbs Also See for POWX0761:
Table of Contents

Advertisement

Quick Links

Download this manual
All manuals and user guides at all-guides.com
1
APPLICATION ................................................................................ 4
2
DESCRIPTION ................................................................................ 4
3
PACKAGE CONTENT LIST ............................................................ 5
4
SYMBOLS ....................................................................................... 5
5
GENERAL POWER TOOL SAFETY WARNINGS ......................... 6
5.1
Work area ............................................................................................................... 6
5.2
Electrical safety ..................................................................................................... 6
5.3
Personal safety ...................................................................................................... 6
5.4
Power tool use and care ........................................................................................ 7
5.5
Service .................................................................................................................... 7
6
6.1
6.2
When using in Mitre saw mode: ............................................................................ 8
6.3
When using in the table saw (bench saw) mode: ................................................ 9
7
INSTALLATION .............................................................................. 9
7.1
Bench mounting (Fig. 1 & 3) ................................................................................. 9
7.1.1
For the fully-extended feet set up as the high table. ................................................. 9
7.1.2
For the folded feet set up as the low table ................................................................ 9
8
FUNCTIONAL DESCRIPTION ...................................................... 10
8.1
Blade guard (Fig. 4, 5 & 6) ................................................................................... 10
8.2
Maintaining maximum cutting capacity (Fig. 7) ................................................. 11
8.3
Adjusting the Mitre angle (Fig. 9 & 10) ............................................................... 11
8.4
Adjusting the bevel angle (Fig. 11 & 12) ............................................................. 11
8.4.1
In the Mitre saw mode............................................................................................ 11
8.4.2
In the table saw mode (Fig. 13) .............................................................................. 11
8.5
Switch action (Fig. 14) ......................................................................................... 12
8.5.1
Switch for the Mitre saw mode (A) ......................................................................... 12
8.5.2
Switch for the table saw mode (B) .......................................................................... 12
8.6
Adjusting the depth of cut (Fig. 15 - 21) ............................................................. 12
9
ASSEMBLY ................................................................................... 12
9.1
Socket wrench storage (Fig. 17) ......................................................................... 12
Copyright © 2008 VARO
POWX0761
P a g e
| 1
EN
www.varo.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the POWX0761 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Powerplus POWX0761

Summary of Contents for Powerplus POWX0761

  • Page 1: Table Of Contents

    All manuals and user guides at all-guides.com POWX0761 APPLICATION ................4 DESCRIPTION ................4 PACKAGE CONTENT LIST ............5 SYMBOLS ..................5 GENERAL POWER TOOL SAFETY WARNINGS ......6 Work area ....................... 6 Electrical safety ..................... 6 Personal safety ...................... 6 Power tool use and care ..................
  • Page 2 All manuals and user guides at all-guides.com POWX0761 Table height two-way set up ................12 9.2.1 High table set up (Fig. 18) ..................12 9.2.2 Low table set up (Fig. 19) ..................13 Installing or removing saw blade ................ 13 Adjusting riving knife (fig 25,26 &...
  • Page 3 All manuals and user guides at all-guides.com POWX0761 10.2 Cutting as table saw (bench mode) ..............19 10.2.1 Work helpers ......................19 10.2.2 Push block (Fig. 57) ....................19 10.2.3 Auxiliary fence (Fig. 58) ..................19 10.2.4 Ripping ........................20 10.2.5...

  • Page 4: Application

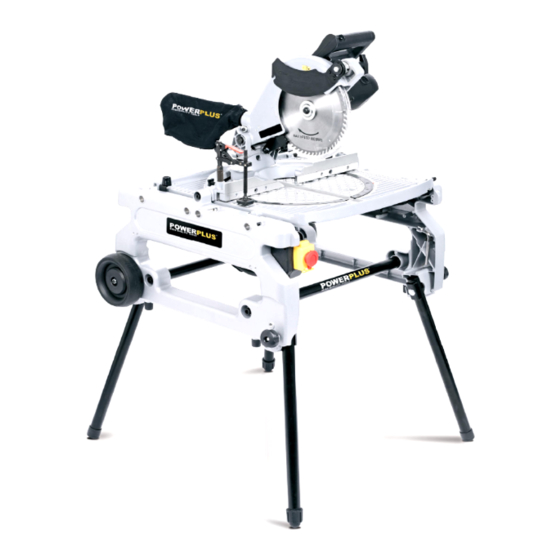

    All manuals and user guides at all-guides.com POWX0761 FLIP OVER SAW 1400W POWX0761 1 APPLICATION The tool is intended for accurate straight and Mitre cutting in wood. The tool can be used both in Mitre saw mode and in table saw mode by turning over the table around its axis.

  • Page 5: Package Content List

    All manuals and user guides at all-guides.com POWX0761 3 PACKAGE CONTENT LIST  Remove all packing materials  Remove remaining packaging and transit supports (if existing)  Check the completeness of the packing content  Check the appliance, the power cord, the power plug and all accessories for transportation damages.

  • Page 6: General Power Tool Safety Warnings

    All manuals and user guides at all-guides.com POWX0761 5 GENERAL POWER TOOL SAFETY WARNINGS Read all safety warnings and all instructions. Failure to follow all warnings and instructions may result in electric shock, fire and/or serious injury. Save all warnings and instructions for future reference.

  • Page 7: Power Tool Use And Care

    All manuals and user guides at all-guides.com POWX0761  If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used. Use of these devices can reduce dust related hazards. Power tool use and care ...

  • Page 8: When Using In Mitre Saw Mode

    All manuals and user guides at all-guides.com POWX0761  Select the correct saw blade for the material to be cut.  Do not use saw blades manufactured from high speed steel.  To reduce the emitted noise, always be sure that the blade is sharp and clean.

  • Page 9: When Using In The Table Saw (Bench Saw) Mode

    All manuals and user guides at all-guides.com POWX0761 When using in the table saw (bench saw) mode:  Do not perform any operation freehand. Freehand means using your hands to support or guide the workpiece, in lieu of (6) rip fence.

  • Page 10: Functional Description

    All manuals and user guides at all-guides.com POWX0761 8 FUNCTIONAL DESCRIPTION CAUTION: Always be sure that the tool is switched off and unplugged before adjusting or checking function on the tool. Blade guard (Fig. 4, 5 & 6) Caution:  Make sure that the handle cannot be lowered without pushing the lever nearby the handle to the left.

  • Page 11: Maintaining Maximum Cutting Capacity (Fig. 7)

    All manuals and user guides at all-guides.com POWX0761 Maintaining maximum cutting capacity (Fig. 7) This tool is factory adjusted to provide the maximum cutting capacity for a 255 mm saw blade. When installing a new blade, always check the lower limit position of the blade and if...

  • Page 12: Switch Action (Fig. 14)

    All manuals and user guides at all-guides.com POWX0761 Switch action (Fig. 14) 8.5.1 Switch for the Mitre saw mode (A) CAUTION:  Before plugging in the tool, always check to see that the switch lever actuates properly and returns to the “OFF” position when released.

  • Page 13: Low Table Set Up (Fig. 19)

    All manuals and user guides at all-guides.com POWX0761 9.2.2 Low table set up (Fig. 19)  Fold in the 4 legs. To do so :  Fall down the tool carefully BACKWARDS without fail while holding it with both hands.

  • Page 14: Installing And Adjusting Rip Fence (Fig. 28)

    All manuals and user guides at all-guides.com POWX0761 Installing and adjusting rip fence (Fig. 28)  Install the rip fence on the table so that the rip fence holder engages with the guide rail. Tighten the clamping screw (48) of the rip fence firmly clockwise.

  • Page 15: Installing And Adjusting Mitre Gauge (Fig. 35)

    All manuals and user guides at all-guides.com POWX0761 Installing and adjusting Mitre gauge (Fig. 35) Install the Mitre gauge by inserting its shaft into one of two grooves in the table from the front. Mitre gauge fence that is also used as rip fence can be installed on the Mitre gauge according to your work.

  • Page 16: Securing The Tool Head (Fig. 42)

    All manuals and user guides at all-guides.com POWX0761 9.9.2 Securing the tool head (Fig. 42) Secure the tool head by tightening the lever in the direction of arrow shown in the figure. 9.9.3 Releasing the lower limit stopper (Fig. 43) Make sure that the end of the lower limit stopper is at the A position in the figure.

  • Page 17: Setting Up The Tool In Mitre Saw Mode (Fig. 50)

    All manuals and user guides at all-guides.com POWX0761 9.10 Setting up the tool in Mitre saw mode (Fig. 50) WARNING: Be sure to install the lower blade guard C before using the tool in Mitre saw mode. To change the set up from table saw mode to Mitre saw mode, reverse the procedure of the section titled “Setting up the tool in table saw mode”.

  • Page 18: Operation

    All manuals and user guides at all-guides.com POWX0761 10 OPERATION CAUTION:  Before use, be sure to release the handle from the lowered position by pulling the stopper pin and turning it to the angle of 90°.  Make sure the blade is not contacting the workpiece, etc. before the switch is turned on.

  • Page 19: Compound Cutting

    All manuals and user guides at all-guides.com POWX0761 10.1.4 Compound cutting Compound cutting is the process in which a bevel angle is made at the same time in which a Mitre angle is being cut on a workpiece. Compound cutting can be performed at angle shown in the table.

  • Page 20: Ripping

    All manuals and user guides at all-guides.com POWX0761 10.2.4 Ripping CAUTION:  When ripping, remove the Mitre gauge from the table.  When cutting long or large workpieces, always provide adequate support behind the table. DO NOT allow a long board to move or shift on the table. This will cause the blade to bind and increase the possibility of kickback and personal injury.

  • Page 21: Carrying Tool (Fig. 66)

    All manuals and user guides at all-guides.com POWX0761 10.2.9 Carrying tool (Fig. 66) Make sure that the tool is unplugged. For the tool just used in the Mitre saw mode, secure the blade at 0° bevel angle and the turn table at 0° Mitre angle. Lower the handle fully and lock it in the lowered position by fully pushing in the stopper pin.

  • Page 22: Replacing Carbon Brushes (Fig. 73 & 74)

    All manuals and user guides at all-guides.com POWX0761 11.2 Replacing carbon brushes (Fig. 73 & 74) Remove and check the carbon brushes regularly. Replace when they wear down to the limit mark. Keep the carbon brushes clean and free to slip in the holders. Both carbon brushes should be replaced at the same time.

  • Page 23: Noise Emission Values

    All manuals and user guides at all-guides.com POWX0761 13 NOISE EMISSION VALUES The noise and weighted root mean square acceleration value are measured in accordance with EN 61029 LpA (sound pressure) 92.6 dB(A) LwA (Sound power level ) 105.6 dB(A)

  • Page 24: Declaration Of Conformity

    All manuals and user guides at all-guides.com POWX0761 17 DECLARATION OF CONFORMITY VARO N.V. - Joseph Van Instraat 9 - BE2500 Lier - BELGIUM, declares that, product : Flip over saw 1400W trade mark : POWERplus model : POWX0761 is in conformity with the essential requirements and other relevant provisions of the applicable European Directives, based on the application of European harmonized standards.
