APPLICATION .................................................................................. 3
2
DESCRIPTION (FIG. A & B) ............................................................ 3
3
PACKAGE CONTENT LIST ............................................................. 3
4
SYMBOLS ........................................................................................ 4
5
GENERAL POWER TOOL SAFETY WARNINGS .......................... 4
5.1
Working area ........................................................................................................... 4
5.2
Electrical safety ....................................................................................................... 4
5.3
Personal safety ....................................................................................................... 4
5.4
Power tools use and care ....................................................................................... 5
5.5
Service ..................................................................................................................... 5
6
ADDITIONAL SAFETY INSTRUCTIONS ........................................ 5
7
8
ASSEMBLY ...................................................................................... 7
8.1
Assembling the extension hoops .......................................................................... 7
8.2
Assembling the clamp ............................................................................................ 7
9
OPERATING INSTRUCTIONS ........................................................ 7
9.1
Transporting the mitre saw .................................................................................... 7
9.2
Dust and chip extraction ........................................................................................ 7
9.3
Clamping the work piece ........................................................................................ 8
9.4
Horizontal mitre angle............................................................................................. 8
9.5
Adjusting of the cutting angle (Fig. 1) ................................................................... 8
9.6
Vertical bevel angle ................................................................................................. 8
9.7
Slide lock adjustment ............................................................................................. 8
9.8
Switching ON / OFF ................................................................................................. 8
9.9
Laser (13) ................................................................................................................. 8
9.10
Dust bag .................................................................................................................. 8
9.11
Sawing ..................................................................................................................... 9
9.12
Sawing special work pieces ................................................................................... 9
9.13
Replacing the saw blade (Fig. 2) ............................................................................ 9
10
CLEANING AND MAINTENANCE ................................................... 9
10.1
Cleaning................................................................................................................... 9
Copyright © 2017 VARO
POWX07565T
P a g e
| 1
EN
www.varo.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the POWX07565T and is the answer not in the manual?

Questions and answers

Related Manuals for Powerplus POWX07565T

Summary of Contents for Powerplus POWX07565T

  • Page 1: Table Of Contents

    POWX07565T APPLICATION .................. 3 DESCRIPTION (FIG. A & B) ............3 PACKAGE CONTENT LIST ............. 3 SYMBOLS ..................4 GENERAL POWER TOOL SAFETY WARNINGS ......4 Working area ......................4 Electrical safety ....................... 4 Personal safety ....................... 4 Power tools use and care ..................5 Service ........................
  • Page 2 POWX07565T 10.2 Connecting cable ....................10 TECHNICAL DATA ................ 10 CUTTING CAPACITY..............10 NOISE ..................... 10 STORAGE ..................10 TROUBLE SHOOTING ..............11 WARRANTY ................... 11 ENVIRONMENT ................12 DECLARATION OF CONFORMITY ..........12 Copyright © 2017 VARO www.varo.com P a g e...

  • Page 3: Application

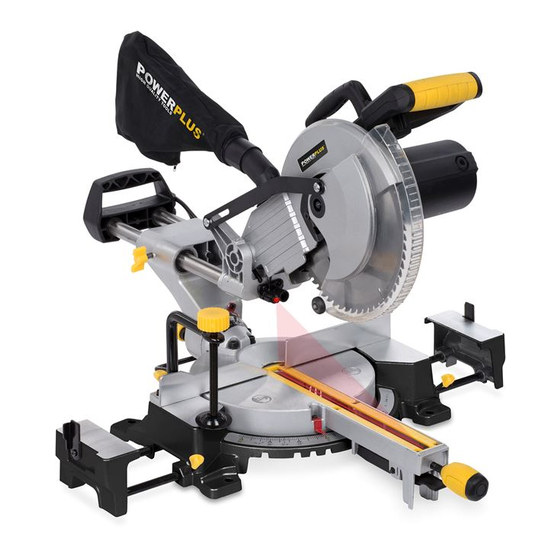

    POWX07565T SLIDING MITRE SAW 2200W POWX07565T 1 APPLICATION This power tool is intended as a stationary machine for making straight and cross cuts in wood. You can saw hard and soft wood as well as chip and fibre boards. Only adults may use this tool.

  • Page 4: Symbols

    POWX07565T 4 SYMBOLS The following symbols are used in this manual and/or on the machine: Denotes risk of personal Wear eye protection . injury or damage to the tool. In accordance with essential Read manual before use. requirements of the European...

  • Page 5: Power Tools Use And Care

    POWX07565T  Use safety equipment. Always wear eye protection. Using safety equipment such as a dust mask, non-skid safety shoes, a hard hat, or hearing protection whenever it is needed will reduce the risk of personal injury.  Avoid accidental starts. Ensure the switch is in the off position before inserting the plug.
  • Page 6 POWX07565T  Only use correctly sharpened saw blades. Never exceed the maximum speed that is indicated on the saw blade.  Before installing the saw blade, clean the axle, the flanges (especially the assembly surfaces) and the hexagonal nut. Incorrect mounting can lead to vibrations/knocking or slipping of the saw blade.

  • Page 7: Additional Safety Instructions For Lasers

    POWX07565T  Arsenic and chrome from chemically treated wood.  The hazard to your health from such exposures is dependent on how frequently you do this kind of work.  Measures for reducing your exposure to such chemicals: Always work in well-ventilated surroundings and with certified safety equipment, such as dust masks that have been specially designed for filtering out microscopic particles.

  • Page 8: Clamping The Work Piece

    POWX07565T Clamping the work piece Make sure the work piece can’t be catapulted. The clamp(12) is the most perfect gadget to avoid this.  Press the work piece against the fence (4) and between the clamp  Tighten the clamp (12) clockwise to secure the work piece.

  • Page 9: Sawing

    POWX07565T 9.11 Sawing Make sure the saw blade doesn’t block while you are sawing. It causes damage to and burning of the motor. If there is a blockade of the saw blade, please loosen the switch immediately to prevent damage at the motor.
  • Page 10 POWX07565T  Never use solvents such as petrol, alcohol, ammonia water, etc. These solvents may damage the plastic parts. Make sure no water can reach the inside of the power tool! 10.2 Connecting cable If the connecting cable (or mains plug) is damaged, it must be replaced. Replacement of the connecting cable should only be carried out by a qualified specialist (qualified electrician).
  • Page 11 We also disclaim all liability for any bodily injury resulting from inappropriate use of the tool.  Repairs may only be carried out by an authorized customer service centre for Powerplus tools.  You can always obtain more information at the number 00 32 3 292 92 90.
  • Page 12 POWX07565T 17 ENVIRONMENT Should your appliance need replacement after extended use, do not discard it with the household rubbish but dispose of it in an environmentally safe way. Waste produced by electrical machine items should not be handled like normal household rubbish.
