1
APPLICATION ................................................................................. 3
2
DESCRIPTION (FIG. A) .................................................................. 3
3
PACKAGE CONTENT LIST ............................................................ 3
4
SYMBOLS ....................................................................................... 4
5
GENERAL SAFETY WARNINGS ................................................... 4
5.1
Working area .......................................................................................................... 4
5.2
Electrical safety ...................................................................................................... 4
5.3
Personal safety ...................................................................................................... 4
5.4
Power tool use and care ........................................................................................ 5
5.5
Service .................................................................................................................... 5
6
TABLE SAWS ................................................................................. 5
7
ELECTRICAL SAFETY ................................................................... 7
8
SPECIAL PRODUCT CHARACTERISTICS ................................... 7
9
INSTALLATION AND TRANSPORT .............................................. 7
9.1
Installation .............................................................................................................. 8
9.2
Transport ................................................................................................................ 8
9.2.1
Table saw operating mode ....................................................................................... 8
9.2.2
Cross-cut and mitre saw operating mode ................................................................. 8
9.2.3
Turntable ................................................................................................................. 9
9.2.4
Adjustment of the bevelling angle (Fig. 1)................................................................. 9
9.2.5
Mitre and width guide (Fig. 2) ................................................................................... 9
9.2.6
Connection to a dust collector .................................................................................. 9
9.2.7
Connection to AC power .......................................................................................... 9
10
OPERATIONS ............................................................................... 10
10.1
Cross-cut sawing mode ....................................................................................... 10
10.1.1
Safety instructions for the liftable saw blade guard (Fig. 3) ..................................... 10
10.1.2
Safety lock ............................................................................................................. 10
10.1.3
Installation.............................................................................................................. 10
10.1.4
Normal cross-cut operations .................................................................................. 11
10.1.5
Mitre sawing ........................................................................................................... 11
Copyright © 2017 VARO
POWX07582
P a g e
| 1
EN
www.varo.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the POWX07582 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Powerplus POWX07582

Summary of Contents for Powerplus POWX07582

  • Page 1: Table Of Contents

    POWX07582 APPLICATION ................. 3 DESCRIPTION (FIG. A) ..............3 PACKAGE CONTENT LIST ............3 SYMBOLS ..................4 GENERAL SAFETY WARNINGS ........... 4 Working area ......................4 Electrical safety ...................... 4 Personal safety ...................... 4 Power tool use and care ..................5 Service ........................
  • Page 2 POWX07582 10.1.6 Bevelling ........................ 12 10.1.7 Sawing the workpiece: ................... 12 10.1.8 Double mitre cut ..................... 12 10.1.9 Sawing the workpiece: ................... 12 10.2 Table saw mode ....................13 10.2.1 Safety instructions for the upper saw blade guard ..........13 10.2.2...

  • Page 3: Application

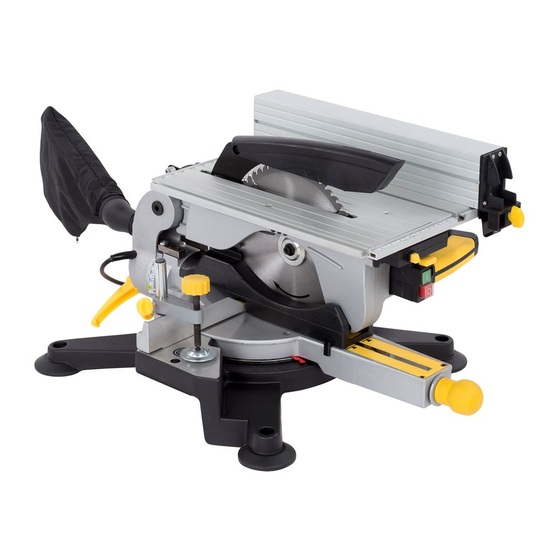

    POWX07582 CROSS-CUT AND MITRE SAW WITH TOP TABLE POWX07582 1 APPLICATION The machine is designed for sawing wood, metal and plastic. It is not designed for commercial use. WARNING! Read this manual and general safety instructions carefully before using the appliance, for your own safety. Your power tool should only be passed on together with these instructions.

  • Page 4: Symbols

    POWX07582 4 SYMBOLS In this manual and/or on the machine the following symbols are used: In accordance with essential Denotes risk of personal requirements of the European injury or damage to the tool. directive(s) "Class II - The machine is double Read manual before use insulated;...

  • Page 5: Power Tool Use And Care

    POWX07582  Avoid accidental starts. Ensure the switch is in the off position before inserting the plug. Carrying power tools with your finger on the switch or plugging in power tools when the switch is in the on position makes accidents more likely.
  • Page 6 POWX07582  Only use saw blades that are recommended by the manufacturer and that fulfil the EN847- 1 standard. Also make sure the riving knife is not thicker than the width of the saw cut, and that it is not thinner than the body of the saw blade.

  • Page 7: Electrical Safety

    POWX07582  Do not carry out any free-hand operations. Free-hand means that you use your hands for supporting the workpiece, or for leading it with your hands, instead of using the rip fence or the mitre block.  NEVER bend over or around the saw blade. NEVER reach for a workpiece, before the saw blade has come to a complete stop.

  • Page 8: Installation

    POWX07582 Installation  Get help from another person for lifting the machine out of the box.  Turn the turntable into the 0° position and tighten up the mitre locks. Note: If the machine must be mounted on a workbench, then the rubber feet should NOT be installed.

  • Page 9: Turntable

    POWX07582 9.2.3 Turntable The turntable (11) can be turned 50° to the left and 60° to the right, and it can be fixed in preset positions of 0°, 15°, 22.5°, 30°, 45° and 60°. For turning the mitre table, the locking knob (9) must be released.

  • Page 10: Operations

    POWX07582  The mains voltage and the system frequency must conform to the voltage and frequency that is indicated on the technical data sheet of the machine;  Fusing protection with a residual current device (RCD), with a sensitivity of 30 mA.

  • Page 11: Normal Cross-Cut Operations

    POWX07582 HAZARD!  Before using the machine, always check that the following items function properly.  Liftable saw blade guard.  Wear protective clothing  Stand in the correct position for operating the machine  At the front of the saw ...

  • Page 12: Bevelling

    POWX07582  Lower the saw head carefully and completely downwards while holding firmly onto the handgrip. You should only apply medium pressure while sawing, so as to prevent that the speed of the motor slows down.  Saw the workpiece in one single movement.

  • Page 13: Safety Instructions For The Upper Saw Blade Guard

    POWX07582  Push on the upper half of the ON/OFF switch and push on the safety lock.  Lower the saw head carefully and completely downwards, while firmly holding onto the handgrip. You should only apply minimum pressure while sawing, so as to prevent the motor from slowing down.

  • Page 14: Sawing

    POWX07582  Before starting to work, check that the following items are in a proper condition.  Riving knife (2)  Safety saw blade guard (14)  Saw blade guard (3)  Push block  Wear protective clothing and apply the necessary protective measures: ...

  • Page 15: Maintenance

    POWX07582 11.2 Maintenance  Our machines have been designed to operate over a long period of time with a minimum of maintenance. Continuous satisfactory operation depends upon proper machine care and regular cleaning. 11.2.1 For all maintenance works  Switch the machine “OFF”...

  • Page 16: Changing The Saw Blade (Fig. 5)

    POWX07582 11.2.5 Changing the saw blade (Fig. 5) HAZARD!The saw blade may be extremely hot and can cause burns, immediately after you have stopped sawing. Always led a hot saw blade cool off. Never clean saw blades with flammable liquids.

  • Page 17: Replacing The Saw Guide (21)

    POWX07582  Saw blades made of high-speed steel (HSS)  Damaged saw blades  Saw blades with missing teeth HAZARD!  Only use OEM components for installing the saw blade.  Do not use loose reduction rings; the saw blade could come loose.

  • Page 18: Adapting The Sawing Depth Stop (Fig. 10)

    POWX07582  Loosen the left-hand/right-hand screw (N1).  Adapt the support arm until the saw blade is located precisely at an angle of 90°/45° in relation to the turntable.  Retighten the left-hand/right-hand screw (N1).  After loosening the screw (N4), adapt the position of the indicator (N3) until the value that is indicated corresponds to the currently preset stop position of the support arm.

  • Page 19: Noise

    We also disclaim all liability for any bodily injury resulting from inappropriate use of the tool.  Repairs may only be carried out by an authorised customer service centre for Powerplus tools.  You can always obtain more information at the number 00 32 3 292 92 90.

  • Page 20: Environment

    POWX07582 15 ENVIRONMENT Should your appliance need replacement after extended use, do not discard it with the household rubbish but dispose of it in an environmentally safe way. Waste produced by electrical machine items should not be handled like normal household rubbish.
