Powerplus POWX07568TX Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
1
APPLICATION .................................................................................. 3
2
DESCRIPTION (FIG. A & B) ............................................................ 3
3
PACKAGE CONTENT LIST ............................................................. 3
4
SYMBOLS ........................................................................................ 4
5
GENERAL POWER TOOL SAFETY WARNINGS .......................... 4
5.1
Working area ........................................................................................................... 4
5.2
Electrical safety ....................................................................................................... 4
5.3
Personal safety ....................................................................................................... 4
5.4
Power tools use and care ....................................................................................... 5
5.5
Service ..................................................................................................................... 5
6
ADDITIONAL SAFETY INSTRUCTIONS ........................................ 5
7
8
ASSEMBLY ...................................................................................... 7
8.1
Assembling the extension hoops .......................................................................... 7
8.2
Assembling the clamp ............................................................................................ 7
9
OPERATING INSTRUCTIONS ........................................................ 7
9.1
Transporting the mitre saw .................................................................................... 7
9.2
Dust and chip extraction ........................................................................................ 7
9.3
Clamping the work piece ........................................................................................ 8
9.4
Horizontal mitre angle............................................................................................. 8
9.5
Adjusting of the cutting angle (Fig. 1) ................................................................... 8
9.6
Vertical bevel angle ................................................................................................. 8
9.7
Slide lock adjustment ............................................................................................. 8
9.8
Switching ON / OFF ................................................................................................. 8
9.9
Laser (13) ................................................................................................................. 8
9.10
Dust bag .................................................................................................................. 9
9.11
Sawing ..................................................................................................................... 9
9.12
Sawing special work pieces ................................................................................... 9
9.13
Replacing the saw blade (Fig. 2) ............................................................................ 9
10
CLEANING AND MAINTENANCE ................................................. 10
10.1
Cleaning................................................................................................................. 10
Copyright © 2016 VARO
POWX07568TX
P a g e
| 1
EN
www.varo.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the POWX07568TX and is the answer not in the manual?

Questions and answers

Related Manuals for Powerplus POWX07568TX

Summary of Contents for Powerplus POWX07568TX

  • Page 1: Table Of Contents

    POWX07568TX APPLICATION .................. 3 DESCRIPTION (FIG. A & B) ............3 PACKAGE CONTENT LIST ............. 3 SYMBOLS ..................4 GENERAL POWER TOOL SAFETY WARNINGS ......4 Working area ......................4 Electrical safety ....................... 4 Personal safety ....................... 4 Power tools use and care ..................5 Service ........................
  • Page 2 POWX07568TX 10.2 Connecting cable ....................10 TECHNICAL DATA ................ 10 CUTTING CAPACITY..............10 NOISE ..................... 10 STORAGE ..................10 TROUBLE SHOOTING ..............11 WARRANTY ................... 11 ENVIRONMENT ................12 DECLARATION OF CONFORMITY ..........12 Copyright © 2016 VARO www.varo.com P a g e...

  • Page 3: Application

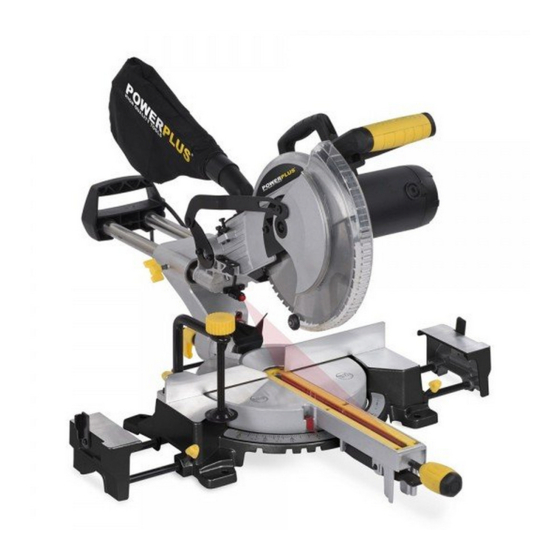

    POWX07568TX SLIDING MITRE SAW 2000W POWX07568TX 1 APPLICATION This power tool is intended as a stationary machine for making straight and cross cuts in wood. You can saw hard and soft wood as well as chip and fibre boards. Only adults may use this tool.

  • Page 4: Symbols

    POWX07568TX 4 SYMBOLS The following symbols are used in this manual and/or on the machine: Denotes risk of personal injury or damage to the Wear eye protection . tool. In accordance with essential Read manual before use. requirements of the European...

  • Page 5: Power Tools Use And Care

    POWX07568TX  Use safety equipment. Always wear eye protection. Using safety equipment such as a dust mask, non-skid safety shoes, a hard hat, or hearing protection whenever it is needed will reduce the risk of personal injury.  Avoid accidental starts. Ensure the switch is in the off position before inserting the plug.
  • Page 6 POWX07568TX  Only use correctly sharpened saw blades. Never exceed the maximum speed that is indicated on the saw blade.  Before installing the saw blade, clean the axle, the flanges (especially the assembly surfaces) and the hexagonal nut. Incorrect mounting can lead to vibrations/knocking or slipping of the saw blade.

  • Page 7: Additional Safety Instructions For Lasers

    POWX07568TX  Arsenic and chrome from chemically treated wood.  The hazard to your health from such exposures is dependent on how frequently you do this kind of work.  Measures for reducing your exposure to such chemicals: Always work in well-ventilated surroundings and with certified safety equipment, such as dust masks that have been specially designed for filtering out microscopic particles.

  • Page 8: Clamping The Work Piece

    POWX07568TX Clamping the work piece Make sure the work piece can’t be catapulted. The clamp(12) is the most perfect gadget to avoid this.  Press the work piece against the fence (4) and between the clamp  Tighten the clamp (12) clockwise to secure the work piece.

  • Page 9: Dust Bag

    POWX07568TX 9.10 Dust bag To attach the dust bag (20), fit it onto the dust extraction adapter. When the dust bag is about half full, remove the dust bag from the tool and empty it. 9.11 Sawing Make sure the saw blade doesn’t block while you are sawing. It causes damage to and burning of the motor.

  • Page 10: Cleaning And Maintenance

    POWX07568TX 10 CLEANING AND MAINTENANCE Before performing any work on the equipment, pull the power plug. 10.1 Cleaning  Regularly clean the machine housing with a soft cloth, preferably after each use.  If the dirt does not come off use a soft cloth moistened with soapy water.
  • Page 11 We also disclaim all liability for any bodily injury resulting from inappropriate use of the tool.  Repairs may only be carried out by an authorized customer service centre for Powerplus tools.  You can always obtain more information at the number 00 32 3 292 92 90.
  • Page 12 POWX07568TX 17 ENVIRONMENT Should your appliance need replacement after extended use, do not discard it with the household rubbish but dispose of it in an environmentally safe way. Waste produced by electrical machine items should not be handled like normal household rubbish.
