Powerplus POWX07562 Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
1
APPLICATION .................................................................................. 3
2
DESCRIPTION ................................................................................. 3
3
PACKAGE CONTENT LIST ............................................................. 3
4
SYMBOLS ........................................................................................ 4
5
GENERAL POWER TOOL SAFETY WARNINGS .......................... 4
5.1
Working area ........................................................................................................... 4
5.2
Electrical safety ....................................................................................................... 4
5.3
Personal safety ....................................................................................................... 5
5.4
Power tool use and care ......................................................................................... 5
5.5
Service ..................................................................................................................... 6
6
7
8
ASSEMBLY ...................................................................................... 6
8.1
Setting up the saw (Fig.1) ....................................................................................... 6
8.2
Adjusting the saw (Fig. 2) ....................................................................................... 6
8.3
90° cross-cuts and 0° rotary table (Fig. 3) ............................................................. 6
8.4
8.5
90° cross-cuts and 0°-45° rotary table (Fig. 5) ....................................................... 7
8.6
Mitre cuts 0°-45° and rotary table 0° (Fig. 6) .......................................................... 7
8.7
8.8
Mitre cuts 0-45° and rotary table 0-45° ................................................................... 7
9
DUST BAG ....................................................................................... 7
10
REPLACING THE SAW BLADE (FIG. 8) ........................................ 8
11
LASER FUNCTION (FIG. 9) ............................................................. 8
12
CLEANING AND MAINTENANCE ................................................... 8
12.1
Maintenance ............................................................................................................ 8
13
SERVICE DEPARTMENT ................................................................ 8
14
TECHNICAL DATA .......................................................................... 9
15
NOISE ............................................................................................... 9
16
WARRANTY ................................................................................... 10
Copyright © 2017 VARO
POWX07562
P a g e
www.varo.com
| 1
EN

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the POWX07562 and is the answer not in the manual?

Questions and answers

Related Manuals for Powerplus POWX07562

Summary of Contents for Powerplus POWX07562

  • Page 1: Table Of Contents

    POWX07562 APPLICATION .................. 3 DESCRIPTION ................. 3 PACKAGE CONTENT LIST ............. 3 SYMBOLS ..................4 GENERAL POWER TOOL SAFETY WARNINGS ......4 Working area ......................4 Electrical safety ....................... 4 Personal safety ....................... 5 Power tool use and care ..................5 Service ........................
  • Page 2 POWX07562 ENVIRONMENT ................10 DECLARATION OF CONFORMITY ..........11 Copyright © 2017 VARO www.varo.com P a g e...

  • Page 3: Application

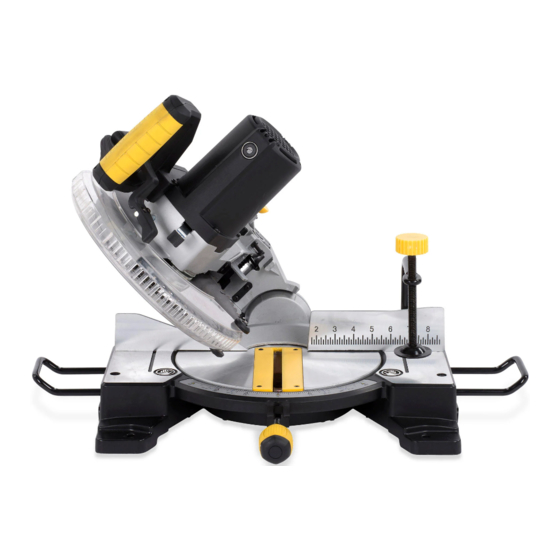

    POWX07562 MITRE SAW 2000W POWX07562 1 APPLICATION The device is intended for cross cuts, mitred cuts, inclined cuts and double mitre cuts in elongated workpieces such as profiles and strips. Only materials for which the corresponding saw blade is permitted can be processed. The machine is not to be used for cutting fire wood.

  • Page 4: Symbols

    POWX07562 4 SYMBOLS In this manual and/or on the machine the following symbols are used: Warning / Danger! Read manual before use. In accordance with essential applicable safety standards of European directives. Wear gloves Wear eye protection. Attention Laser radiation! Do not look into the beam. Laser class 2.

  • Page 5: Personal Safety

    POWX07562  Do not damage the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep the cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the risk of an electric shock.

  • Page 6: Service

    POWX07562 Service  Your power tool should be serviced by a qualified specialist using only standard spare parts. This will ensure that it meets the required safety standards. 6 ADDITIONAL SAFETY INSTRUCTIONS FOR LASERS  Warning! The laser beam potentially causes severe eye damage. Never look or stare directly into the laser beam.

  • Page 7: Precision Adjustment Of The Stop For 90° Cross-Cuts (Fig. 4)

    (5) and the rotary table (8) equals exactly 45°. Mitre cuts 0-45° and rotary table 0-45°  The POWX07562 can be used to make mitre cuts on the left at an angle of 0°-45° relative to the work top and 0°-45° relative to the stop rail. ...

  • Page 8: Replacing The Saw Blade (Fig. 8)

    POWX07562 10 REPLACING THE SAW BLADE (FIG. 8)  Pull out the power plug.  Swing up the machine head (4).  Press release lever (2) sideways.  Move guard upwards and secure hex key in flange bolt (28) ...

  • Page 9: Technical Data

    POWX07562 14 TECHNICAL DATA Rated voltage 220-240 V Rated frequency 50 Hz Rated power 2000W Rotation speed 4800 min-1 Blade size 254 x 30 mm Protection class Class II Cable length Tilting range -45° / 0° / +45° Mitre cuts 0°...

  • Page 10: Warranty

    We also disclaim all liability for any bodily injury resulting from inappropriate use of the tool.  Repairs may only be carried out by an authorised customer service centre for Powerplus tools.  You can always obtain more information at the number 00 32 3 292 92 90.
  • Page 11 POWX07562 18 DECLARATION OF CONFORMITY VARO N.V. - Joseph Van Instraat 9 - BE2500 Lier - BELGIUM, declares that, product: Mitre saw 2000W trade mark: POWERplus model: POWX07562 is in conformity with the essential requirements and other relevant provisions of the applicable European Directives, based on the application of European harmonized standards.

Table of Contents
