Page 1: Table Of Contents
POWX07551T APPLICATION ................4 DESCRIPTION (FIG. A) ..............4 PACKAGE CONTENT LIST ............4 SYMBOLS ..................5 GENERAL POWER TOOL SAFETY WARNINGS ......5 Work area ....................... 5 Electrical safety ..................... 5 Personal safety ...................... 6 Power tool use and care ..................6 Service ........................ - Page 2 POWX07551T 8.13 Mitre scale (Fig. 17) ..................... 12 8.13.1 To adjust mitre angles.................... 12 8.13.2 Mitre angle pointer adjustment ................12 8.14 Adjusting fence squareness (Fig. 18) ..............12 8.15 Setting cutting depth (Fig. 19)................12 8.16 Maximum cutting depth (Fig. 19) ................ 13 8.17...
- Page 3 POWX07551T ENVIRONMENT ................19 DECLARATION OF CONFORMITY ..........19 Copyright © 2016 VARO www.varo.com P a g e...
-
Page 4: Application

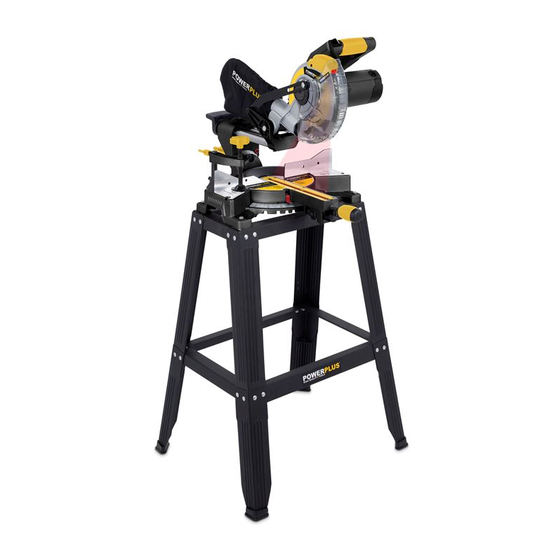

POWX07551T SLIDE COMPOUND MITRE SAW WITH STAND 1400W POWX07551T 1 APPLICATION The tool is intended for accurate straight and Mitre cutting in wood. It is not designed for commercial use. WARNING! Read this manual and general safety instructions carefully before using the appliance, for your own safety. Your power tool should only be passed on together with these instructions 2 DESCRIPTION (FIG. -
Page 5: Symbols
POWX07551T 4 SYMBOLS In this manual and/or on the machine the following symbols are used: Denotes risk of personal injury Wear eye protection or damage to the tool. Read manual before use Wear gloves In accordance with essential "Class II - The machine is requirements of the European double insulated;... -
Page 6: Personal Safety
POWX07551T Personal safety Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication. A moment of inattention while operating power tools may result in serious personal injury. -
Page 7: Additional Safety Instructions For Lasers
POWX07551T Do not use saw blades made of HSS steel. Do not use bent, deformed or otherwise damaged saw blades. Do not use saw blades which do not meet the specifications stated in this manual. Before sawing, remove all nails and other metal objects from the workpiece. -
Page 8: Saw Blade Wrench (Fig. 4)
POWX07551T Loosen the screw with a Phillips screwdriver. Place the hold-down clamp (B) in the desired mounting hole. Tighten the screw to hold the hold-down clamp. Saw blade wrench (Fig. 4) For convenient storage and prevention of loss, there is a slot in the side of the switch handle for storing the blade wrench (D) when not in use. -
Page 9: Removing And Installing The Table Insert (Fig. 7)
POWX07551T Removing and installing the table insert (Fig. 7) NOTE: The mitre saw comes with the table inserts already installed. These instructions are for replacing or adjusting either insert side. WARNING! To avoid injury: 1) Always unplug the saw to avoid accidental starting. -
Page 10: Mounting Mitre Saw Stand (Fig. B)
POWX07551T 8.10 Mounting mitre saw stand (FIG. B) Big flat washer Ø8 Side plate (short) of foot stand Nut M6 (upper) Foot stand (down) Cross arm of foot stand (down) Foot stand (upper) Blot M6x10 Side plate of foot stand (down) 10. -
Page 11: Bevel Stop Adjustment (Fig. 14, 15, 16)
POWX07551T Press the arbor lock button (5), holding it in firmly while turning the blade counterclockwise. When arbor lock engages, continue to press it in while tightening the arbor bolt securely. (Fig. 12) Rotate the cover plate (3) back to its original position until the slot in the cover plate engages with the cover plate screw (2). -
Page 12: 45° Bevel Adjustment (Fig. 16)
POWX07551T 8.12.3 45° Bevel adjustment (Fig. 16) Loosen the bevel lock handle (1) and tilt the cutting head completely to the left. Using a combination square, check to see if the blade angle is 45° to the table. -
Page 13: Maximum Cutting Depth (Fig. 19)
POWX07551T 8.16 Maximum cutting depth (Fig. 19) The maximum depth travel of the cutting head was set at the factory. Check to see that the blade does not extend more than 1/4 in. below the table insert, and does not touch the control arm throat or any part of the base or table. -
Page 14: Sliding Carriage System (Fig. 22)
POWX07551T WARNING! To avoid injury, after completing a cut and releasing the trigger switch, wait and confirm the blade has stopped before raising the cutting head. To avoid injury, check and tighten the arbor bolt periodically. Sliding carriage system (Fig. 22) ... -
Page 15: Cutting Bowed Material (Fig. 27)
POWX07551T Grasp and pull the switch handle (4) forward until the center of the saw blade is over the front of the workpiece (3). Engage the trigger to turn the saw on. When the saw reaches full speed, slowly push the switch handle down, cutting through the leading edge of the workpiece. -
Page 16: Replacing Carbon Brushes (Fig. 30)
POWX07551T If the dirt does not come off use a soft cloth moistened with soapy water. Never use solvents such as petrol, alcohol, ammonia water, etc. These solvents may damage the plastic parts. 10.2 Replacing carbon brushes (Fig. 30) Replace both carbon brushes (3) when either has less than 1/4 in. -
Page 17: Troubleshooting
POWX07551T 13 TROUBLESHOOTING 13.1 Motor Problem Cause Solution Blade does not stop within Motor brushes not Inspect, clean and/or 10 seconds sealed or lightly sticking replace brushes Arbor bolt loosened Retighten the arbor bolt Other Contact customer service Motor does not start... -
Page 18: Storage
We also disclaim all liability for any bodily injury resulting from inappropriate use of the tool. Repairs may only be carried out by an authorised customer service centre for Powerplus tools. You can always obtain more information at the number 00 32 3 292 92 90. - Page 19 Joseph Van Instraat 9 - BE2500 Lier - BELGIUM, declares that, product : SLIDE COMPOUND MITRE SAW WITH STAND 1400W trade mark : POWERplus model : POWX07551T is in conformity with the essential requirements and other relevant provisions of the applicable European Directives, based on the application of European harmonized standards.
