1
APPLICATION .................................................................................. 3
2
DESCRIPTION (FIG. A & B) ............................................................ 3
3
PACKAGE CONTENT LIST ............................................................. 3
4
SYMBOLS ........................................................................................ 4
5
GENERAL POWER TOOL SAFETY WARNINGS .......................... 4
5.1
Working area ........................................................................................................... 4
5.2
Electrical safety ....................................................................................................... 4
5.3
Personal safety ....................................................................................................... 5
5.4
Power tools use and care ....................................................................................... 5
5.5
Service ..................................................................................................................... 5
6
ADDITIONAL SAFETY INSTRUCTIONS ........................................ 5
7
ADDITIONAL SAFETY INSTRUCTIONS FOR LASERS ................ 7
8
ASSEMBLY ...................................................................................... 7
8.1
Assembling the clamp ............................................................................................ 7
8.2
Assembling of the table (see picture) .................................................................... 7
9
OPERATING INSTRUCTIONS ........................................................ 8
9.1
Transporting the mitre saw .................................................................................... 8
9.2
Dust and chip extraction ........................................................................................ 8
9.3
Clamping the work piece ........................................................................................ 8
9.4
Horizontal mitre angle............................................................................................. 8
9.5
Adjusting of the cutting angle ................................................................................ 8
9.6
Vertical bevel angle ................................................................................................. 8
9.7
Slide lock adjustment ............................................................................................. 8
9.8
Switching ON / OFF ................................................................................................. 9
9.9
Laser (23) ................................................................................................................. 9
9.10
Dust bag .................................................................................................................. 9
9.11
Sawing ..................................................................................................................... 9
9.12
Sawing special work pieces ................................................................................... 9
9.13
Replacing the saw blade ......................................................................................... 9
10
CLEANING AND MAINTENANCE ................................................. 10
10.1
Cleaning................................................................................................................. 10
Copyright © 2018 VARO
POWX07566T
P a g e
| 1
EN
www.varo.com
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Powerplus POWX07566T
Summary of Contents for Powerplus POWX07566T
-
Page 1: Table Of Contents
POWX07566T APPLICATION .................. 3 DESCRIPTION (FIG. A & B) ............3 PACKAGE CONTENT LIST ............. 3 SYMBOLS ..................4 GENERAL POWER TOOL SAFETY WARNINGS ......4 Working area ......................4 Electrical safety ....................... 4 Personal safety ....................... 5 Power tools use and care ..................5 Service ........................ - Page 2 POWX07566T 10.2 Connecting cable ....................10 TECHNICAL DATA ................ 10 CUTTING CAPACITY..............10 NOISE ..................... 10 STORAGE ..................11 TROUBLE SHOOTING ..............11 WARRANTY ................... 11 ENVIRONMENT ................12 DECLARATION OF CONFORMITY ..........12 Copyright © 2018 VARO www.varo.com P a g e...
-
Page 3: Application

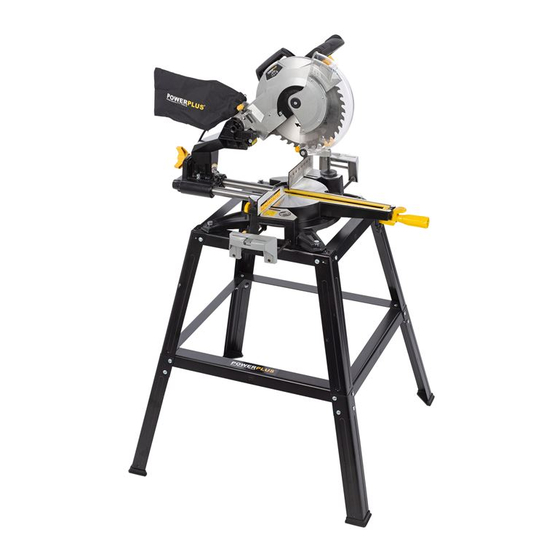

POWX07566T SLIDING MITRE SAW 2050W-250MM POWX07566T 1 APPLICATION This power tool is intended as a stationary machine for making straight and cross cuts in wood. You can saw hard and soft wood as well as chip and fibre boards. Only adults may use this tool. -
Page 4: Symbols
POWX07566T 4 SYMBOLS The following symbols are used in this manual and/or on the machine: Denotes risk of personal Wear ear guards and goggles. injury or damage to the tool. In accordance with essential Read manual before use. requirements of the European directive(s). -
Page 5: Personal Safety
POWX07566T Personal safety ▪ Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool when you are tired or under the influence of drugs, alcohol or medication. A moment of inattention when operating a power tool may result in serious personal injury. - Page 6 POWX07566T ▪ Only use saw blades that are recommended by the manufacturer and that fulfil the EN847- 1 standard. ▪ Always use the accessories that are recommended by this manual. ▪ Select the correct saw blade for the material must be sawn.
-
Page 7: Additional Safety Instructions For Lasers
POWX07566T ▪ Do not maltreat the cable. Never pull on the cable, for removing the plug from the socket. Do not expose the cable to heat, oil, water or sharp edges. ▪ Some types of dust that is generated while working with the saw may contain chemicals, which can cause cancer, birth defects or other genetic damages. -
Page 8: Operating Instructions
POWX07566T 1 Allen wrench Note: Only place the device on a level, skid-proof surface. The device must not wobble. 9 OPERATING INSTRUCTIONS Transporting the mitre saw To transport the power tool, use the retaining pin (17). Pull the mitre saw downwards and lock it in the lowered position by pushing in the retaining pin. -
Page 9: Switching On / Off
POWX07566T ▪ Wait until the saw blade (2) has come to a complete standstill before removing the work piece. Switching ON / OFF For your safety use both hands to switch the power tool on and off. ▪ Connect the power tool to the power supply. -
Page 10: Cleaning And Maintenance
POWX07566T When replacing the saw blade, you can tighten the slide bar with the locking knob (21). 10 CLEANING AND MAINTENANCE Before performing any work on the equipment, pull the power plug. 10.1 Cleaning ▪ Regularly clean the machine housing with a soft cloth, preferably after each use. -
Page 11: Storage
We also disclaim all liability for any bodily injury resulting from inappropriate use of the tool. ▪ Repairs may only be carried out by an authorized customer service centre for Powerplus tools. ▪ You can always obtain more information at the number 00 32 3 292 92 90. -
Page 12: Environment
POWX07566T ▪ Your purchase receipt must be kept as proof of date of purchase. ▪ Your appliance must be returned undismantled to your dealer in an acceptably clean state, (in its original blow-moulded case if applicable to the unit), accompanied by proof of purchase.
